OMRON
SKU: 61FLSCP11BRC
On Order
Industrial Ethernet Cables and Connectors

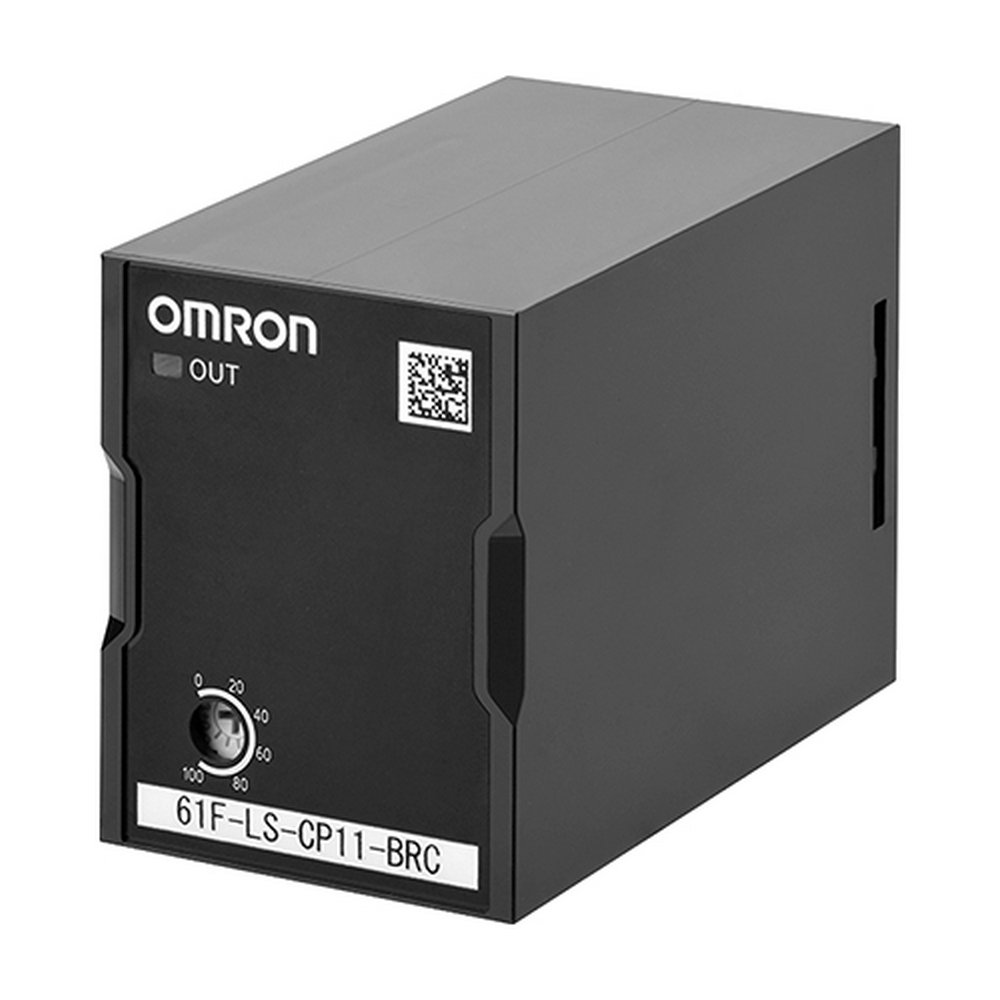

61F-LS-CP11-BRC – Floatless level switch, plug-in, DC power supply type, 11 pins, relay output, 24 VDC, adjustable sensitivity, (requires PF113A-E socket)
61F-LS-CP11-BRC
| Model No | 61F-LS-CP11-BRC |
|---|---|
| SKU | 61FLSCP11BRC |
| HS Code | 9032.1080.90 |
| Category | Industrial Ethernet Cables and Connectors |
Description
Floatless level switch, plug-in, DC power supply type, 11 pins, relay output, 24 VDC, adjustable sensitivity, (requires PF113A-E socket)
Specifications
| Model No | 61F-LS-CP11-BRC |
| SKU | 61FLSCP11BRC |
| HS CODE | 9032.1080.90 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Floatless level switch |
|---|---|
| Connection | plug-in |
| Output | relay output |
| Supply Voltage | 24 VDC |
| Width | 38 mm |
| Height | 49.4 mm |
| Depth | 84 mm |
| Cascadable | No |
| Voltage type (supply voltage) | DC |
| With detachable clamps | No |
| Number of inputs for electrodes | 3 |
| Supply voltage DC | 24 V |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 1 |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- DC power supply type
- 11 pins
- adjustable sensitivity
- (requires PF113A-E socket)
