OMRON
SKU: A165ELS24D01
On Order
Emergency Stop and Control Devices

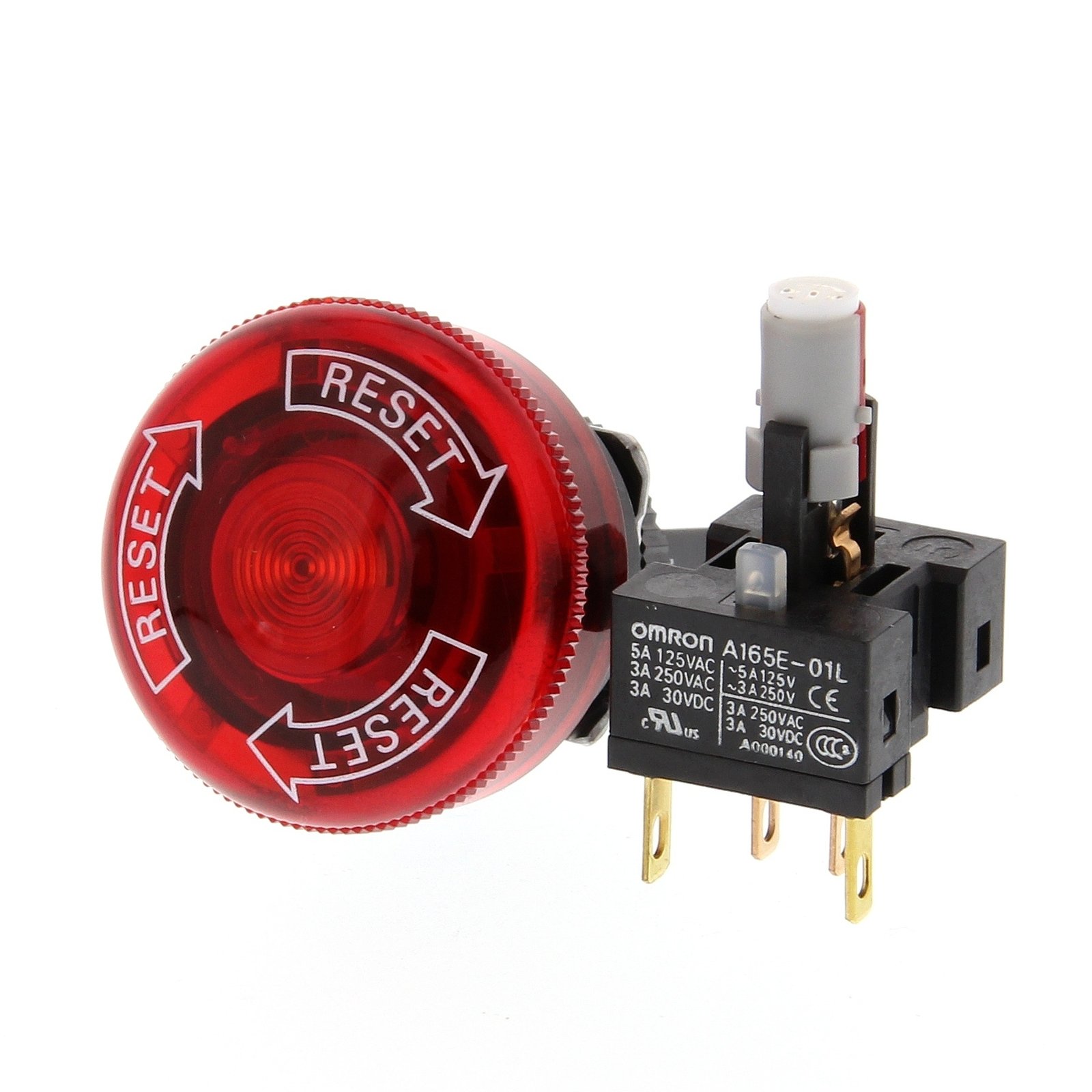

A165E-LS-24D-01 – Acil durdurma switchi, ışıklı, 30mm çap, bas kilitle/çevir resetle, SPST-NC, 24 VDC
A165E-LS-24D-01
| Model No | A165E-LS-24D-01 |
|---|---|
| SKU | A165ELS24D01 |
| HS Code | 8536.5015.00 |
| Category | Emergency Stop and Control Devices |
Description
Acil durdurma switchi, ışıklı, 30mm çap, bas kilitle/çevir resetle, SPST-NC, 24 VDC
Specifications
| Model No | A165E-LS-24D-01 |
| SKU | A165ELS24D01 |
| HS CODE | 8536.5015.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Acil durdurma switchi |
|---|---|
| Supply Voltage | 24 VDC |
| Mounting method | Built-in |
| Hole diameter | 16 mm |
| Unlocking method | Turn-release |
| Diameter cap | 30 mm |
| With lighting | Yes |
| Degree of protection (IP) | IP65 |
| Supply voltage lamp | 24 V |
| Connection type auxiliary circuit | Soldering flag connection |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 0 |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- ışıklı
- 30mm çap
- bas kilitle/çevir resetle
- SPST-NC
