OMRON
SKU: A16 7290D
On Order

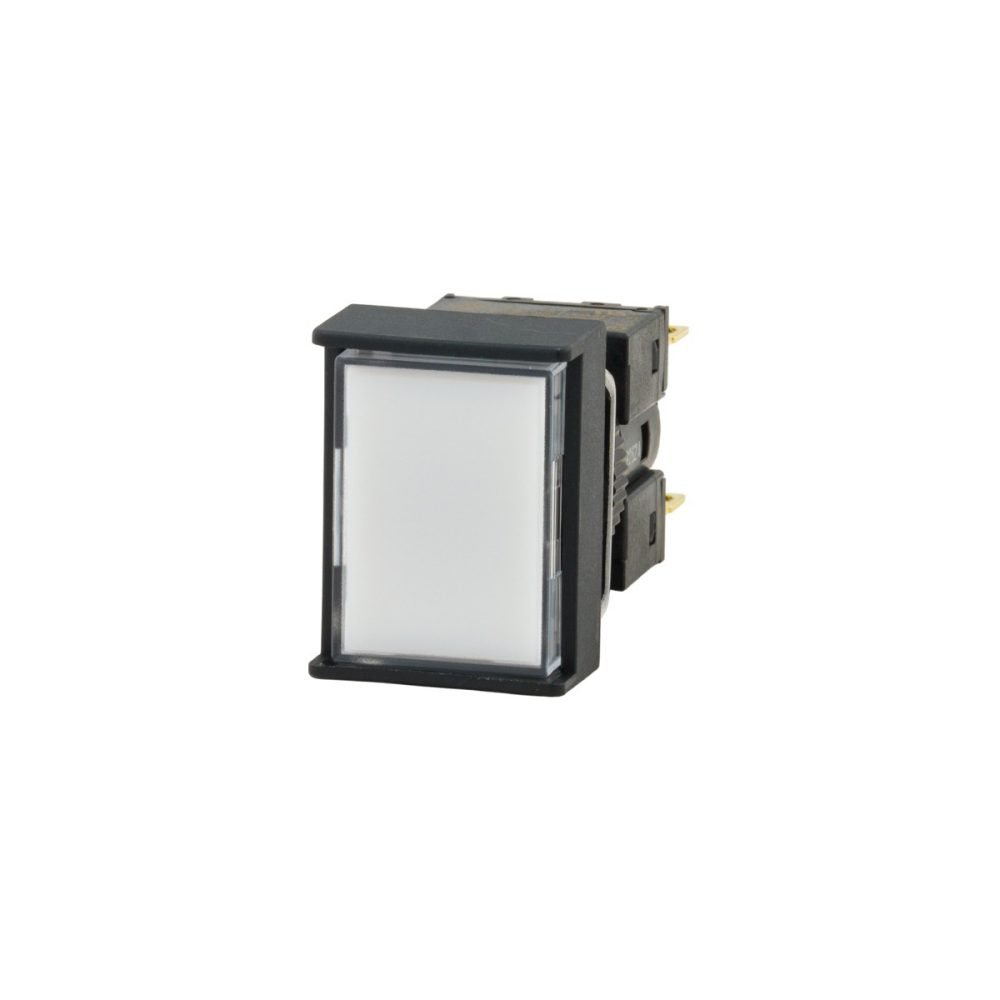

A165L-JWM-24D-2
| Model No | A165L-JWM-24D-2 |
|---|---|
| SKU | A16 7290D |
| Category | Pushbutton Switches |
Specifications
| Hole diameter | 16 mm |
|---|---|
| Colour button | White |
| Suitable for lighting | Yes |
| Number of command positions | 2 |
| Spring-return | Yes |
| Type of button | Flat |
| Colour front ring | Black |
| Type of electric connection | Soldering flag connection |
| Width opening | 16 mm |
| Height opening | 16 mm |
| Degree of protection (IP) | IP66 |
| Material front ring | Plastic |
| With front ring | Yes |
| Transparent | No |
| Construction type lens | Rectangular |
| Supply voltage lamp | 24 V |
| Switching function latching | No |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 2 |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
