OMRON
SKU: A22ELM
On Order
Emergency Stop and Control Devices

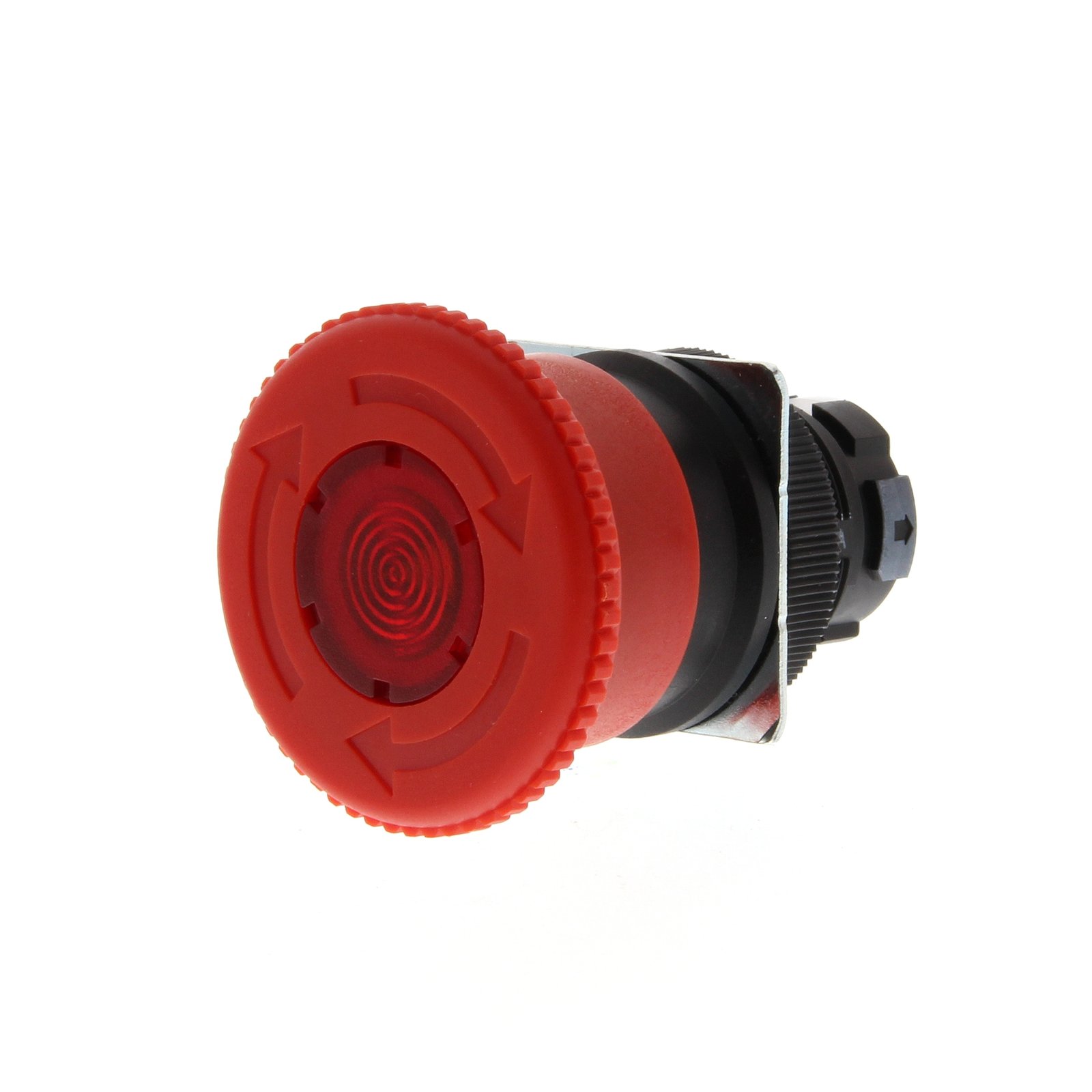

A22EL-M – Emergency stop switch, illuminated, 40mm dia, push-lock/turn-reset, IP65
A22EL-M
| Model No | A22EL-M |
|---|---|
| SKU | A22ELM |
| HS Code | 8536.5015.00 |
| Category | Emergency Stop and Control Devices |
Description
Emergency stop switch, illuminated, 40mm dia, push-lock/turn-reset, IP65
Specifications
| Model No | A22EL-M |
| SKU | A22ELM |
| HS CODE | 8536.5015.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Emergency stop switch |
|---|---|
| Protection Rating | IP65 |
| Hole diameter | 22 mm |
| Colour button | Red |
| Suitable for lighting | Yes |
| Unlocking method | Turn-release |
| Spring-return | No |
| Diameter cap | 40 mm |
| Suitable for emergency stop | Yes |
| Type of button | High |
| Colour front ring | Black |
| With lighting | Yes |
| Width opening | 22.3 mm |
| Height opening | 22.3 mm |
| Degree of protection (IP) | IP65 |
| Material front ring | Plastic |
| With front ring | Yes |
| Construction type lens | Round |
| Switching function latching | Yes |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- illuminated
- 40mm dia
- push-lock/turn-reset
