OMRON
SKU: A2270478E
On Order

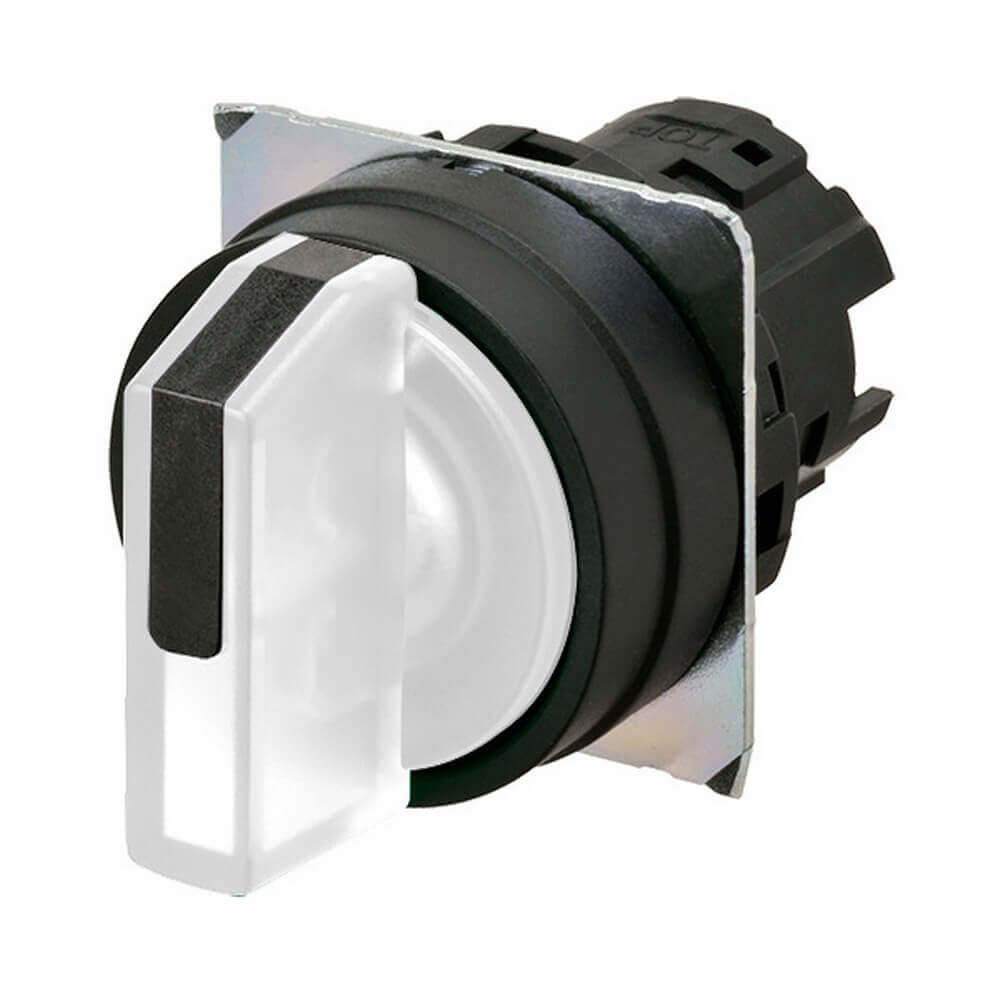

A22NZ-3BM-TWA
| Model No | A22NZ-3BM-TWA |
|---|---|
| SKU | A2270478E |
| Category | Pushbutton Switches |
Specifications
| Hole diameter | 22 mm |
|---|---|
| Number of switch positions | 3 |
| Suitable for lighting | Yes |
| Spring-return | No |
| Colour front ring | Black |
| Degree of protection (IP), front side | IP66 |
| Width opening | 22 mm |
| Height opening | 22 mm |
| Material front ring | Plastic |
| With front ring | Yes |
| Construction type lens | Round |
| Type of control element | Turn button |
| Colour indicator light cap | White |
| Colour control element | White |
| Switching function latching | Yes |
| Degree of protection (NEMA) | 13 |
Technical data supplied by OMRON and classified to ETIM 10.
