OMRON
SKU: CP1WAD042.1
On Order

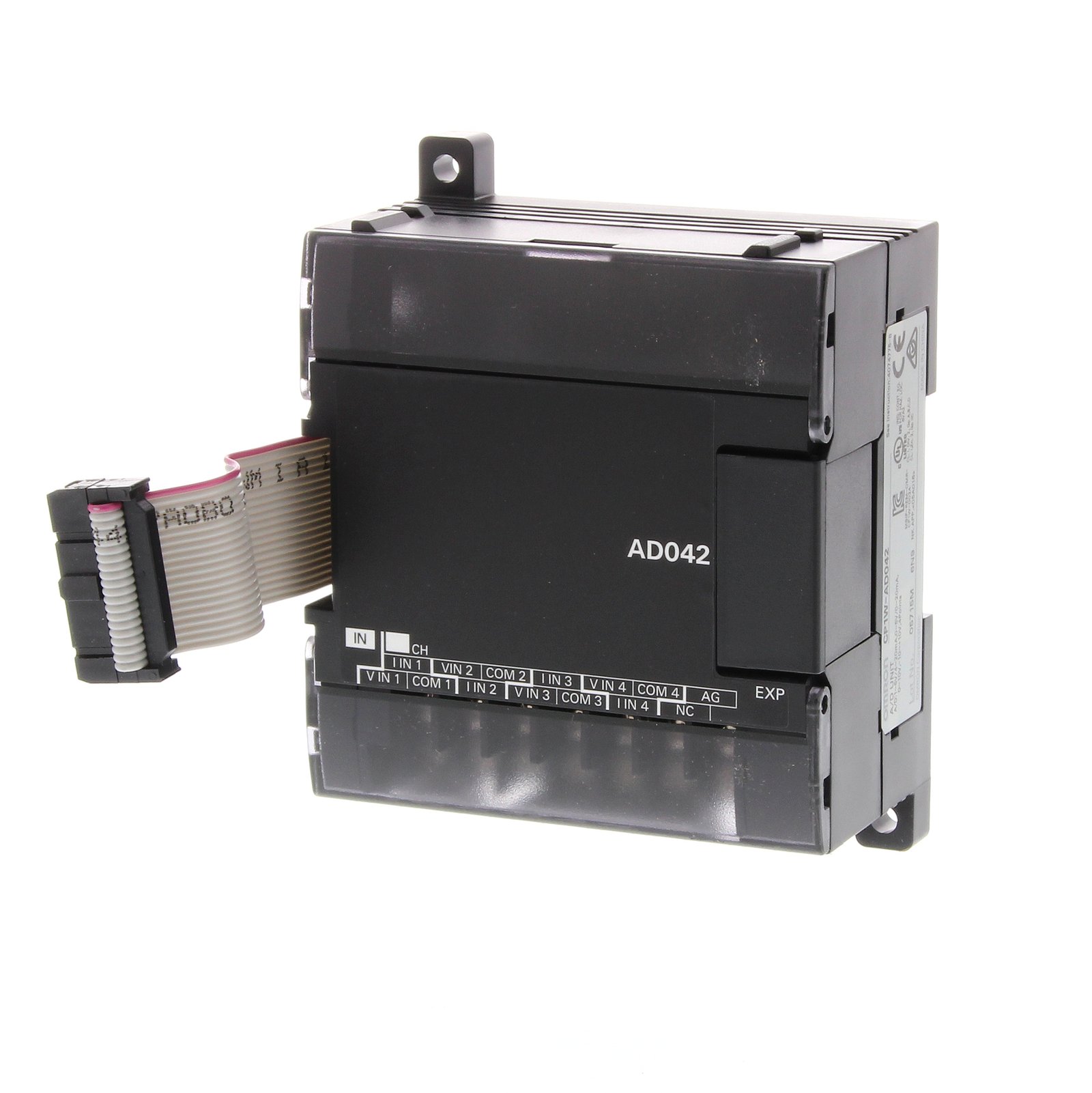

CP1W-AD042 – CP1 Serisi Ek ünite, 4x analog giriş(0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, 4 to 20 mA)
CP1W-AD042
| Model No | CP1W-AD042 |
|---|---|
| SKU | CP1WAD042.1 |
| HS Code | 8471.6070.00 |
| Category | Input and Output |
Description
CP1 Serisi Ek ünite, 4x analog giriş(0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, 4 to 20 mA)
Specifications
| Model No | CP1W-AD042 |
| SKU | CP1WAD042.1 |
| HS CODE | 8471.6070.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | CP1 Series Ek unit |
|---|---|
| Input | 4x analog input(0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, 4 to 20 mA) |
| Width | 86 mm |
| Height | 90 mm |
| Depth | 50 mm |
| Suitable for safety functions | No |
| Number of analogue inputs | 4 |
| Number of analogue outputs | 0 |
| Input, current | Yes |
| Input, voltage | Yes |
| Input, resistor | No |
| Input, resistance thermometer | No |
| Input, thermocouple | No |
| Input signal, configurable | Yes |
| Output, current | No |
| Output, voltage | No |
| Output signal configurable | No |
| Resolution of the analogue inputs | 14 Bit |
| Type of electric connection | Screw connection |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Performance level according to EN ISO 13849-1 | Level a |
| Analogue inputs configurable | Yes |
| Analogue outputs configurable | No |
| SIL according to IEC 61508 | None |
Technical data supplied by OMRON and classified to ETIM 10.
