OMRON
SKU: CP1WDA041.1
On Order

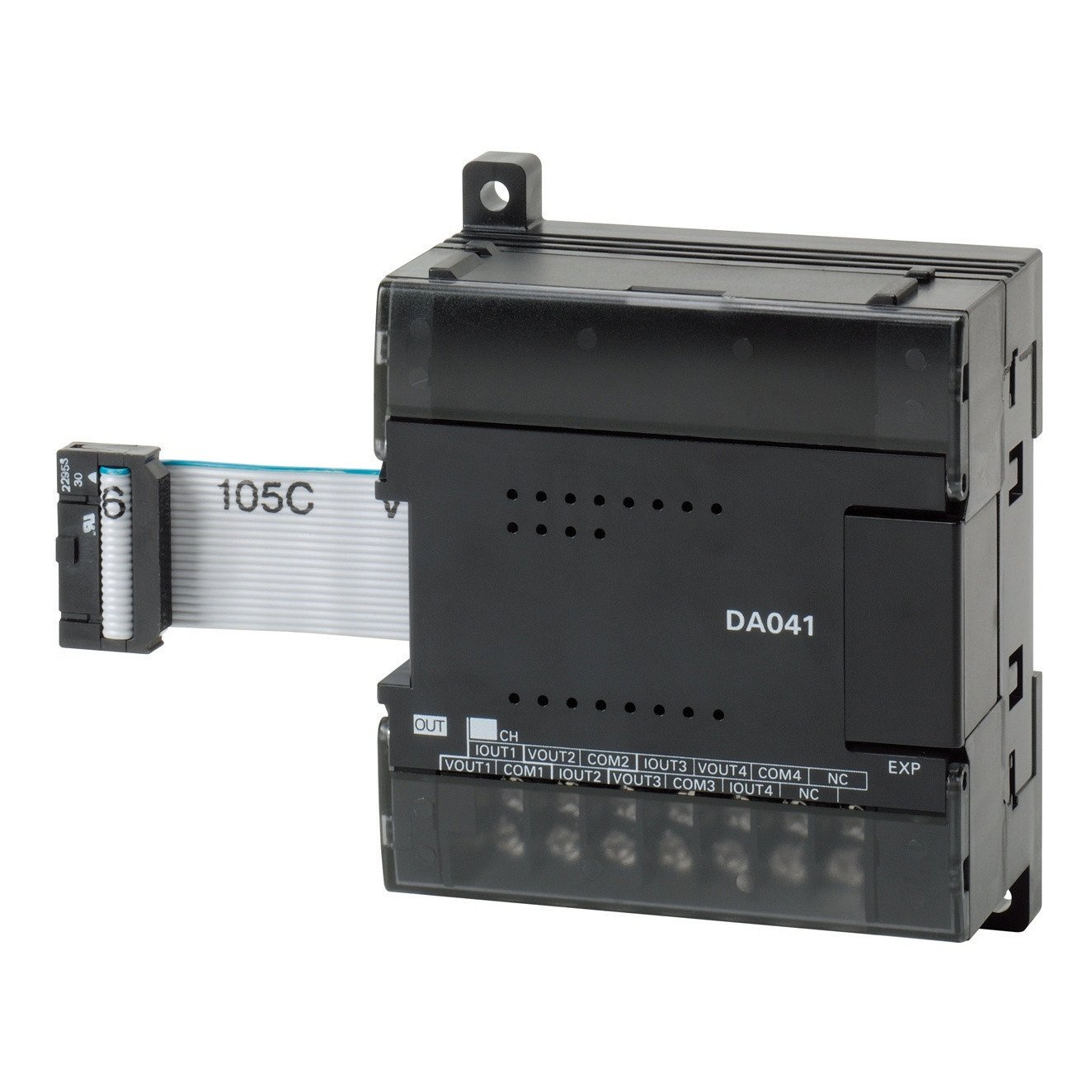

CP1W-DA041 – CP1 Serisi analog çıkış ünite, çıkış: 4x 1-5 V, 0-5 V, 0-10 V, -10-10 V, 0-20 mA, 4-20 mA, çözünürlük 1/6,000
CP1W-DA041
| Model No | CP1W-DA041 |
|---|---|
| SKU | CP1WDA041.1 |
| HS Code | 8471.6070.00 |
| Category | Input and Output |
Description
CP1 Serisi analog çıkış ünite, çıkış: 4x 1-5 V, 0-5 V, 0-10 V, -10-10 V, 0-20 mA, 4-20 mA, çözünürlük 1/6,000
Specifications
| Model No | CP1W-DA041 |
| SKU | CP1WDA041.1 |
| HS CODE | 8471.6070.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | CP1 Series analog output unit |
|---|---|
| Output | output: 4x 1-5 V |
| Current | 0-20 mA |
| Current 2 | 4-20 mA |
| Resolution | resolution 1/6 |
| Width | 86 mm |
| Height | 90 mm |
| Depth | 50 mm |
| Suitable for safety functions | No |
| Number of analogue inputs | 0 |
| Number of analogue outputs | 4 |
| Input, current | No |
| Input, voltage | No |
| Input, resistor | No |
| Input, resistance thermometer | No |
| Input, thermocouple | No |
| Input signal, configurable | No |
| Output, current | Yes |
| Output, voltage | Yes |
| Output signal configurable | Yes |
| Resolution of the analogue outputs | 13 Bit |
| Type of electric connection | Screw connection |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Performance level according to EN ISO 13849-1 | Level a |
| Analogue inputs configurable | No |
| Analogue outputs configurable | Yes |
| SIL according to IEC 61508 | None |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- 0-5 V
- 0-10 V
- -10-10 V
- 000
