OMRON
SKU: D41D2CD025N2
On Order

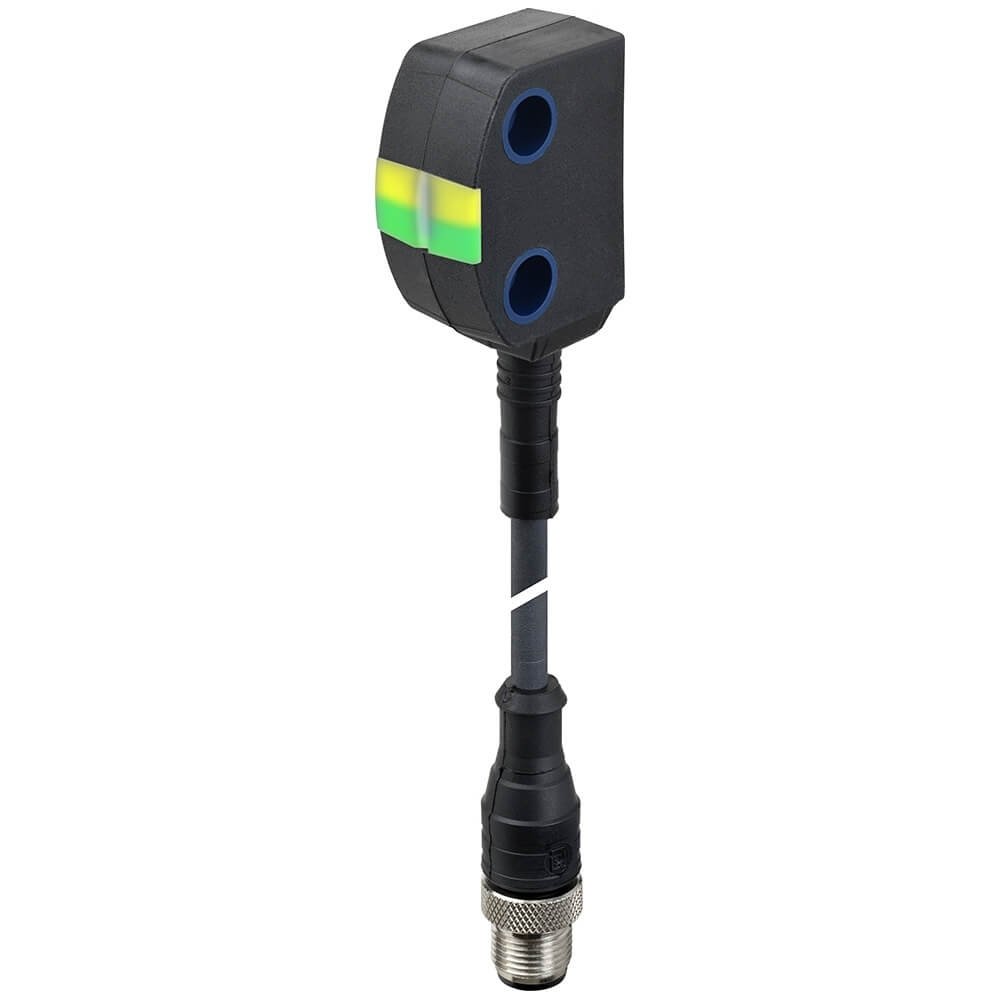

D41D-2CD-025N2 – Non-contact Interlock Switch, RFID High-coded, PNP, Test Pulse, Pigtail with M12 connector 8-pole
D41D-2CD-025N2
| Model No | D41D-2CD-025N2 |
|---|---|
| SKU | D41D2CD025N2 |
| HS Code | 8536.5019.00 |
| Category | Safety Switches |
Description
Non-contact Interlock Switch, RFID High-coded, PNP, Test Pulse, Pigtail with M12 connector 8-pole
Specifications
| Model No | D41D-2CD-025N2 |
| SKU | D41D2CD025N2 |
| HS CODE | 8536.5019.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Non-contact Interlock Switch |
|---|---|
| Output Type | PNP |
| Housing material | Plastic |
| Suitable for safety functions | Yes |
| Coating housing | Plastic-coated |
| With status indication | Yes |
| Type of switching contact | Other |
| Type of interface for safety communication | None |
| Type of electric connection | Plug-in connection others |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Other |
| Degree of protection (IP) | IP67 |
| Forced opening | No |
| Number of safety auxiliary contacts | 1 |
| Type of interface | None |
| Rated operation current Ie at DC-13, 24 V | 0.25 A |
| Width sensor | 18 mm |
| Height of sensor | 29.5 mm |
| Length of sensor | 47.5 mm |
| Ambient temperature during operating | -25 u00b0C |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | 6 |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- RFID High-coded
- Test Pulse
- Pigtail with M12 connector 8-pole
