OMRON
SKU: D41G2ZDGT1
On Order

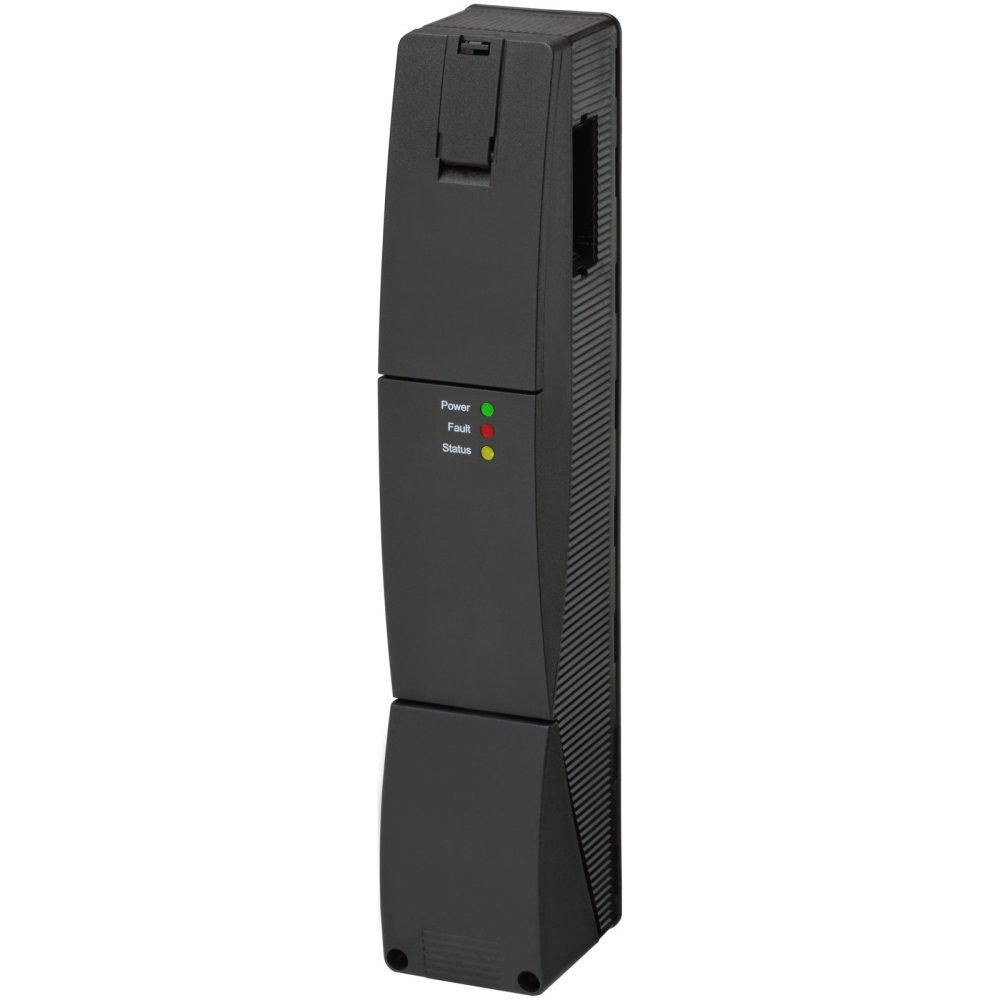

D41G-2ZDG-T1 – Guard locking Switch, RFID High-coded, Actuator monitoring, Power to lock, PNP, Test Pulse, Screw connection
D41G-2ZDG-T1
| Model No | D41G-2ZDG-T1 |
|---|---|
| SKU | D41G2ZDGT1 |
| HS Code | 8536.5019.00 |
| Category | Safety Switches |
Description
Guard locking Switch, RFID High-coded, Actuator monitoring, Power to lock, PNP, Test Pulse, Screw connection
Specifications
| Model No | D41G-2ZDG-T1 |
| SKU | D41G2ZDGT1 |
| HS CODE | 8536.5019.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Guard locking Switch |
|---|---|
| Output Type | PNP |
| Housing material | Plastic |
| Suitable for safety functions | Yes |
| Coating housing | Plastic-coated |
| With status indication | Yes |
| Type of switching contact | Other |
| Type of interface for safety communication | None |
| Type of electric connection | Cable entry metrical |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Other |
| Degree of protection (IP) | IP66/IP67 |
| Number of safety auxiliary contacts | 1 |
| Type of interface | None |
| Rated control supply voltage magnet drive DC | 15 V |
| Rated operation current Ie at DC-13, 24 V | 0.25 A |
| Width sensor | 50 mm |
| With escape release | Yes |
| Height of sensor | 220 mm |
| Length of sensor | 40 mm |
| Ambient temperature during operating | -10 u00b0C |
| Guard locking force | 2000 N |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | 4X |
| With auxiliary release | No |
| Type of guard locking | Operating current principle |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- RFID High-coded
- Actuator monitoring
- Power to lock
- Test Pulse
- Screw connection
Downloads
Get a price Request a quote for D41G-2ZDG-T1 Name, company, email, phone and your quantity — our team replies with cost, lead time and availability. Open form
Pricing is issued per enquiry. Send us the details and our technical team will respond with cost, lead time and availability.
