OMRON
SKU: D4B4113N
On Order
Mechanical Sensors and Limit Switches

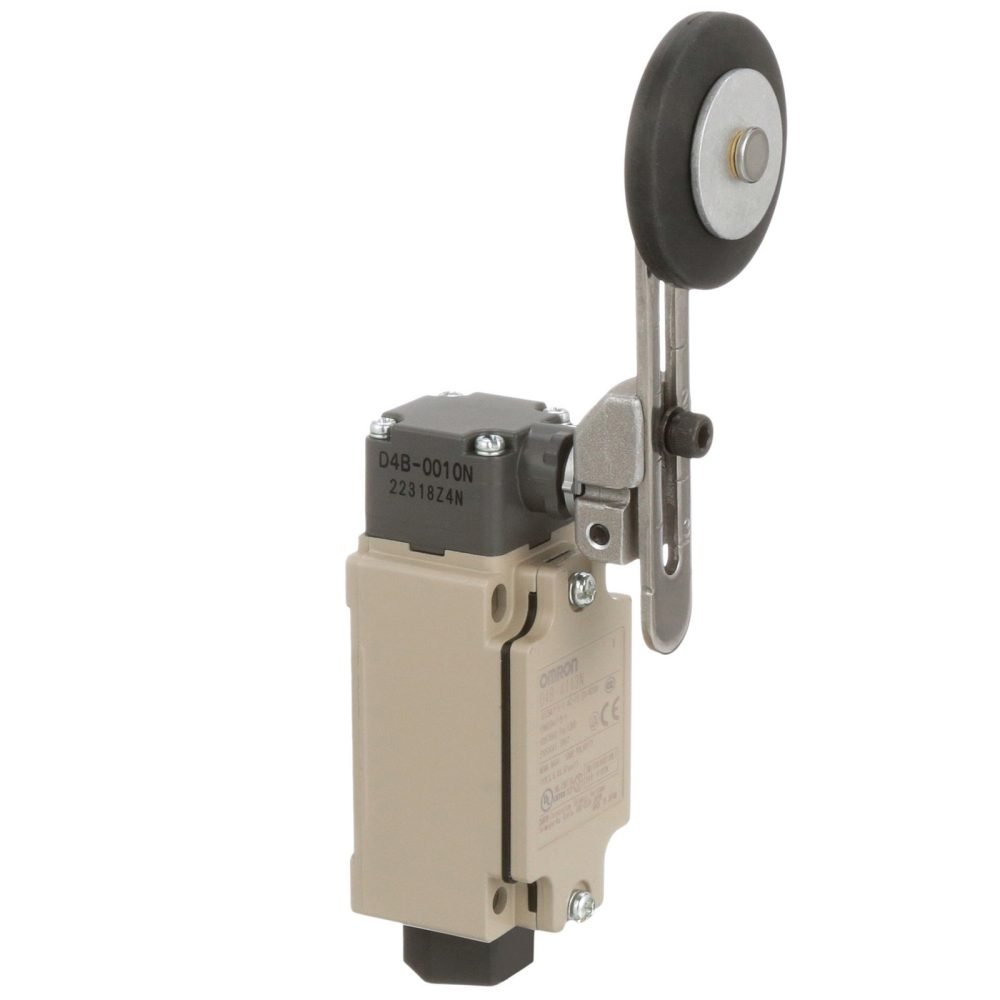

D4B-4113N – Limit switch, SPDB NO/NC, snap action, 10 A
D4B-4113N
| Model No | D4B-4113N |
|---|---|
| SKU | D4B4113N |
| HS Code | 8536.5007.00 |
| Category | Mechanical Sensors and Limit Switches |
Description
Limit switch, SPDB NO/NC, snap action, 10 A
Specifications
| Model No | D4B-4113N |
| SKU | D4B4113N |
| HS CODE | 8536.5007.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Limit switch |
|---|---|
| Current | 10 A |
| Switching function | Quick-break switch |
| Rated operation current Ie at AC-15, 230 V | 10 A |
| Rated operation current Ie at DC-13, 230 V | 0.4 A |
| Housing material | Metal |
| Suitable for safety functions | Yes |
| Coating housing | Other |
| With status indication | No |
| Type of interface for safety communication | None |
| Type of electric connection | Plug-in connection others |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP67 |
| Forced opening | Yes |
| Number of safety auxiliary contacts | 0 |
| Type of control element | Other |
| Type of interface | None |
| Output electronic | No |
| Rated operation current Ie at AC-15, 125 V | 10 A |
| Rated operation current Ie at DC-13, 125 V | 0.8 A |
| Rated operation current Ie at DC-13, 24 V | 6 A |
| Width sensor | 93 mm |
| Height of sensor | 81 mm |
| Length of sensor | 176 mm |
| Ambient temperature during operating | -40 u00b0C |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Alignment of the control element | Other |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- SPDB NO/NC
- snap action
