OMRON
SKU: D4CN0236M
On Order
Mechanical Sensors and Limit Switches

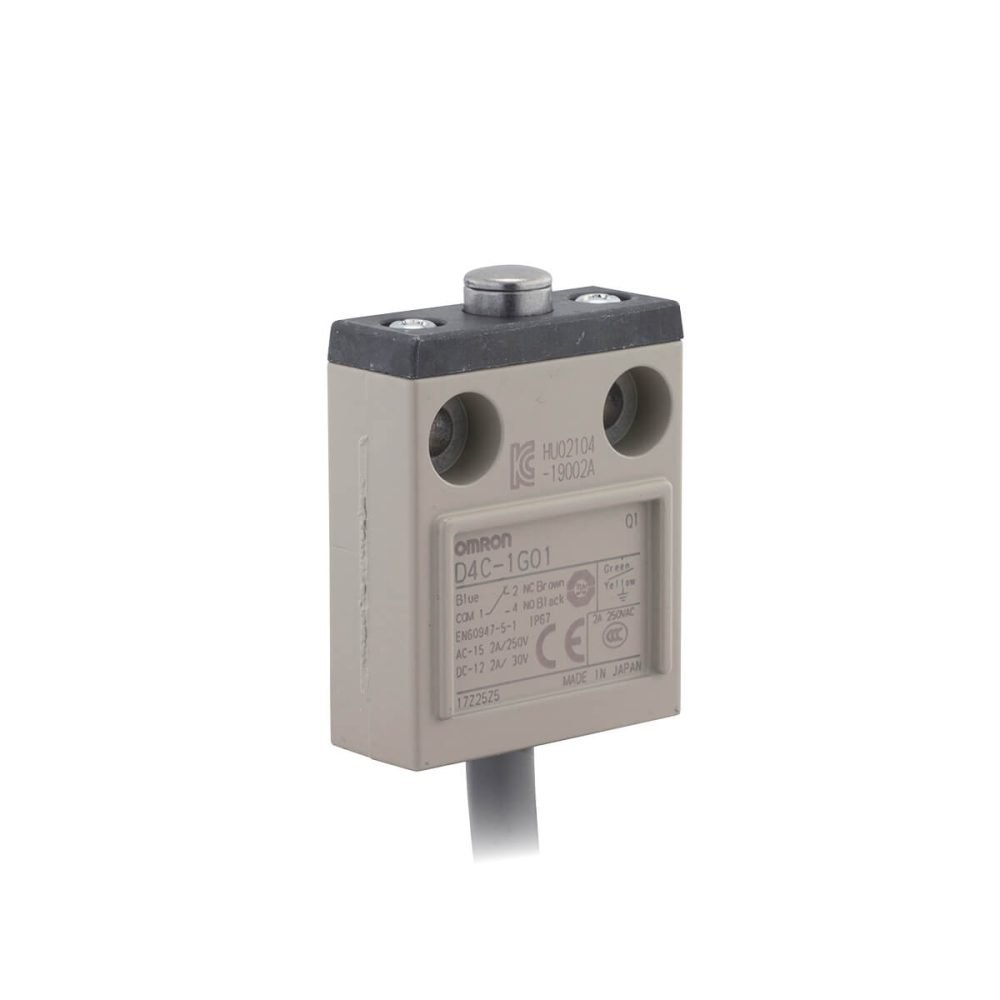

D4C-1G01 5M
| Model No | D4C-1G01 5M |
|---|---|
| SKU | D4CN0236M |
| Category | Mechanical Sensors and Limit Switches |
Specifications
| Switching function | Quick-break switch |
|---|---|
| Rated operation current Ie at AC-15, 230 V | 2 A |
| Housing material | Metal |
| Suitable for safety functions | No |
| Coating housing | Other |
| With status indication | No |
| Type of interface for safety communication | None |
| Type of electric connection | With cable preassembled |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP67 |
| Forced opening | No |
| Number of safety auxiliary contacts | 0 |
| Type of control element | Plunger |
| Type of interface | None |
| Output electronic | No |
| Rated operation current Ie at DC-13, 24 V | 2 A |
| Width sensor | 40 mm |
| Height of sensor | 54.2 mm |
| Length of sensor | 16 mm |
| Switching function latching | No |
| Ambient temperature during operating | -10 u00b0C |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
| Alignment of the control element | Other |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
