OMRON
SKU: D4E1B10N
On Order
Mechanical Sensors and Limit Switches

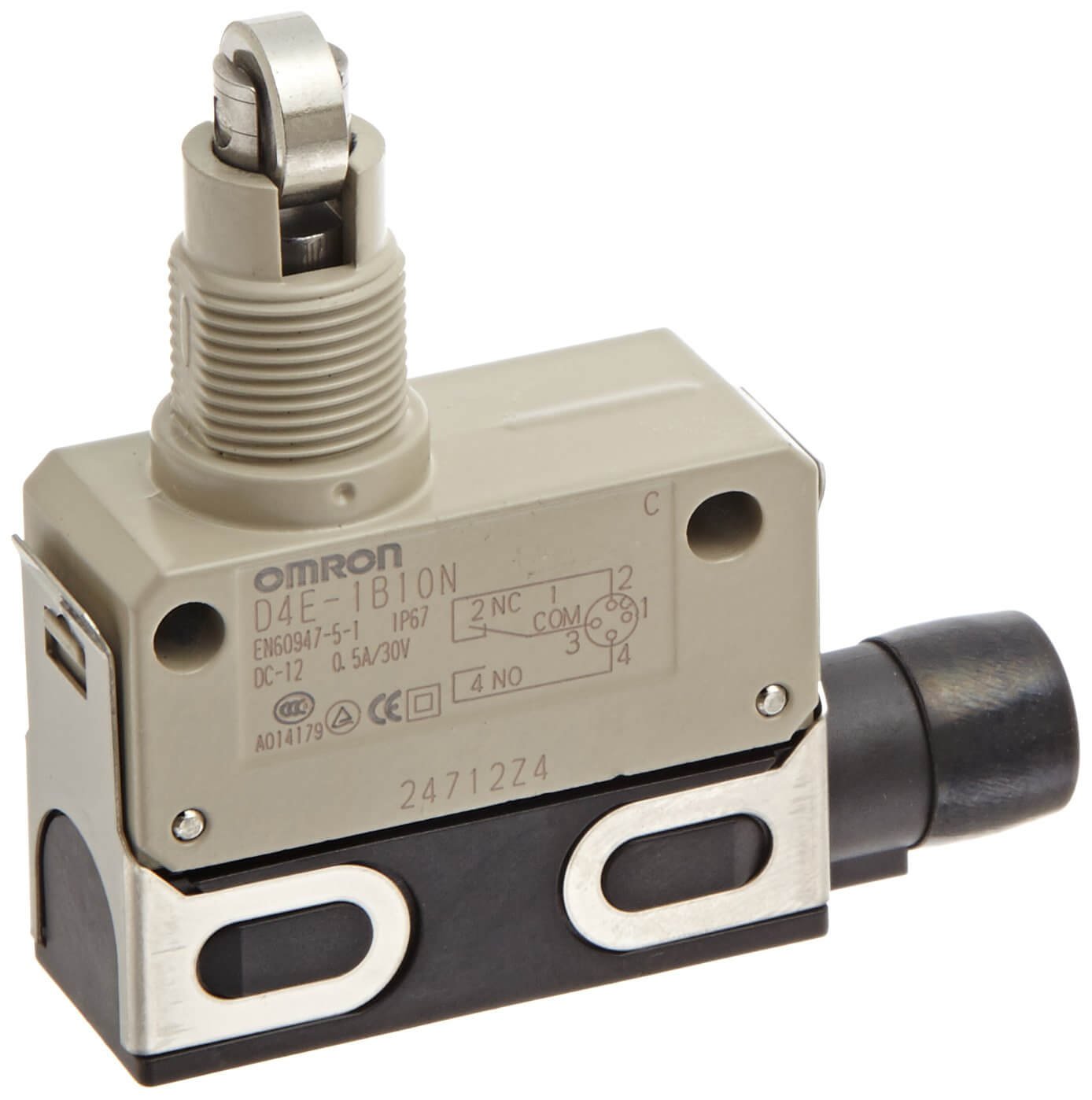

D4E-1B10N – Limit switch, slim sealed, connector type, general purpose, cross roller plunger
D4E-1B10N
| Model No | D4E-1B10N |
|---|---|
| SKU | D4E1B10N |
| HS Code | 8536.5015.00 |
| Category | Mechanical Sensors and Limit Switches |
Description
Limit switch, slim sealed, connector type, general purpose, cross roller plunger
Specifications
| Model No | D4E-1B10N |
| SKU | D4E1B10N |
| HS CODE | 8536.5015.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Limit switch |
|---|---|
| Switching function | Quick-break switch |
| Rated operation current Ie at DC-13, 230 V | 0.03 A |
| Housing material | Metal |
| Suitable for safety functions | No |
| Coating housing | Other |
| With status indication | No |
| Type of interface for safety communication | None |
| Type of electric connection | Connector M12 |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP67 |
| Forced opening | No |
| Number of safety auxiliary contacts | 0 |
| Type of control element | Plunger |
| Type of interface | None |
| Output electronic | No |
| Rated operation current Ie at DC-13, 125 V | 0.05 A |
| Rated operation current Ie at DC-13, 24 V | 0.5 A |
| Width sensor | 60 mm |
| Height of sensor | 61.3 mm |
| Length of sensor | 18 mm |
| Ambient temperature during operating | -10 u00b0C |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
| Alignment of the control element | Roller cam crossed |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- slim sealed
- connector type
- general purpose
- cross roller plunger
