OMRON
SKU: D4N4A2G
On Order
Mechanical Sensors and Limit Switches

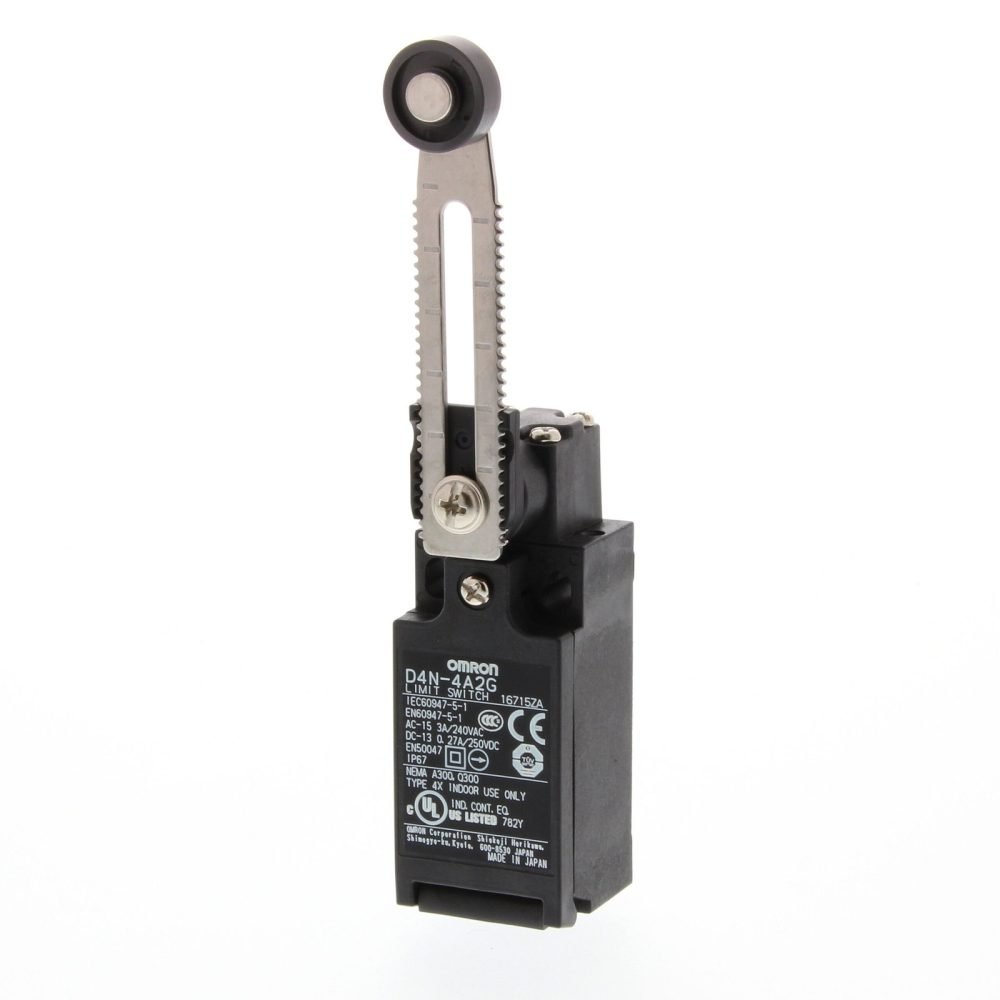

D4N-4A2G – Güvenlik Limit switchi, D4N, M20 (1 kablo yuvası), 1NC/1NO (yavaş kapama), ayarlanabilir makaralı kol (metal kol, plastik makara)
D4N-4A2G
| Model No | D4N-4A2G |
|---|---|
| SKU | D4N4A2G |
| HS Code | 8536.5007.00 |
| Category | Mechanical Sensors and Limit Switches |
Description
Güvenlik Limit switchi, D4N, M20 (1 kablo yuvası), 1NC/1NO (yavaş kapama), ayarlanabilir makaralı kol (metal kol, plastik makara)
Specifications
| Model No | D4N-4A2G |
| SKU | D4N4A2G |
| HS CODE | 8536.5007.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Safety Limit switchi |
|---|---|
| Switching function | Slow-action switch |
| Rated operation current Ie at AC-15, 230 V | 3 A |
| Rated operation current Ie at DC-13, 230 V | 0.27 A |
| Housing material | Plastic |
| Suitable for safety functions | Yes |
| Coating housing | Other |
| With status indication | No |
| Type of interface for safety communication | None |
| Type of electric connection | Cable entry metrical |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP67 |
| Forced opening | Yes |
| Number of safety auxiliary contacts | 0 |
| Type of control element | Adjustable roller lever |
| Type of interface | None |
| Output electronic | No |
| Rated operation current Ie at AC-15, 125 V | 6 A |
| Rated operation current Ie at DC-13, 125 V | 0.55 A |
| Width sensor | 31 mm |
| Height of sensor | 101.75 mm |
| Length of sensor | 30 mm |
| Switching function latching | No |
| Ambient temperature during operating | -30 u00b0C |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Alignment of the control element | Roller cam straight |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- D4N
- M20 (1 cable yuvası)
- 1NC/1NO (yavaş kapama)
- ayarlanabilir makaralı kol (metal kol, plastik makara)
