OMRON SKU: D4N9B31 On Order

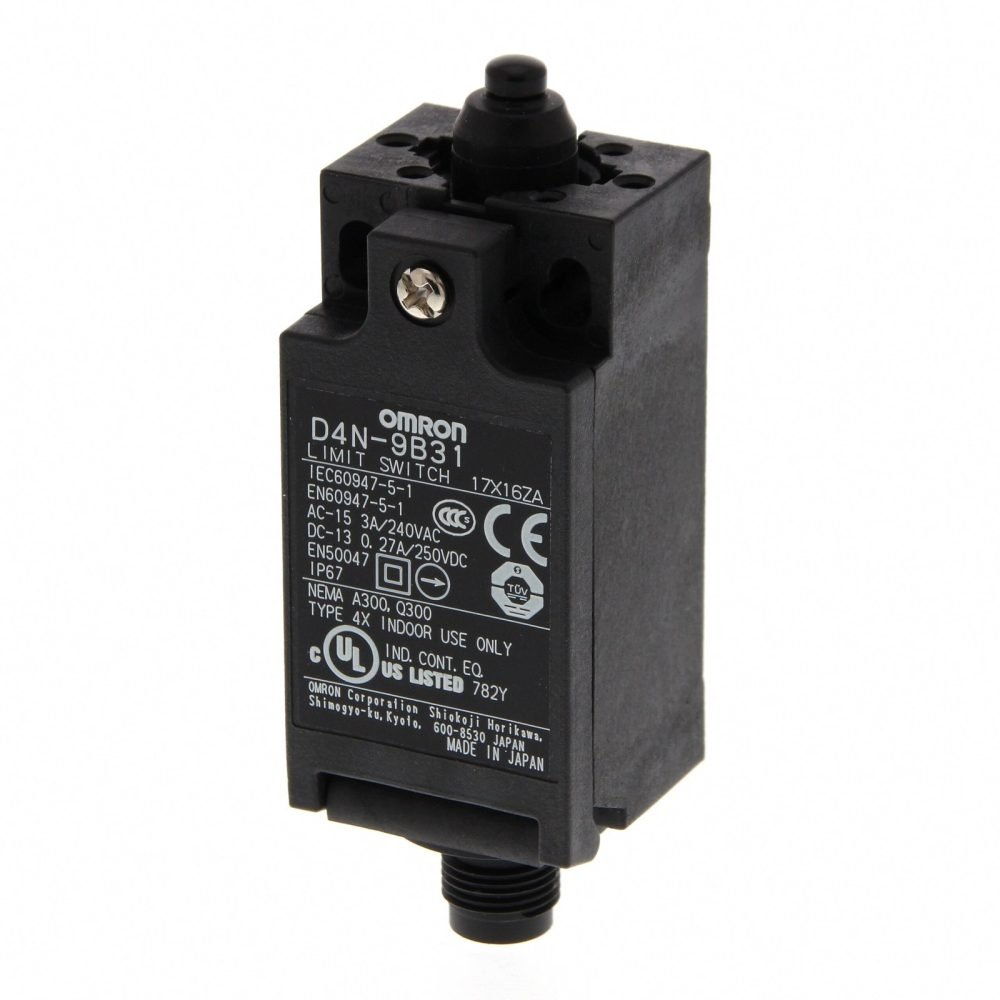

D4N-9B31 – Safety Limit switch, D4N, M12 connector (1 conduit), 2NC/1NO (slow-action), top plunger

D4N-9B31

Model No	D4N-9B31
SKU	D4N9B31
HS Code	8536.5007.00
Category	Mechanical Sensors and Limit Switches

Download Datasheet (EN)

Description

Safety Limit switch, D4N, M12 connector (1 conduit), 2NC/1NO (slow-action), top plunger

Specifications

Model No	D4N-9B31
SKU	D4N9B31
HS CODE	8536.5007.00
DATA SHEET	Datasheet (EN)

Specifications

Product Type	Safety Limit switch
Switching function	Slow-action switch
Rated operation current Ie at AC-15, 230 V	3 A
Rated operation current Ie at DC-13, 230 V	0.27 A
Housing material	Plastic
Suitable for safety functions	Yes
Coating housing	Other
With status indication	No
Type of interface for safety communication	None
Type of electric connection	Connector M12
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cuboid
Degree of protection (IP)	IP67
Forced opening	Yes
Number of safety auxiliary contacts	0
Type of control element	Plunger
Type of interface	None
Output electronic	No
Rated operation current Ie at AC-15, 125 V	6 A
Rated operation current Ie at DC-13, 125 V	0.55 A
Width sensor	31 mm
Height of sensor	73.2 mm
Length of sensor	30 mm
Switching function latching	No
Ambient temperature during operating	-30 u00b0C
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	0
Number of contacts as change-over contact	0
Alignment of the control element	Other
Degree of protection (NEMA)	Other

Technical data supplied by OMRON and classified to ETIM 10.

Features

D4N
M12 connector (1 conduit)
2NC/1NO (slow-action)
top plunger
