OMRON
SKU: D4NH4BAS
On Order
Mechanical Sensors and Limit Switches

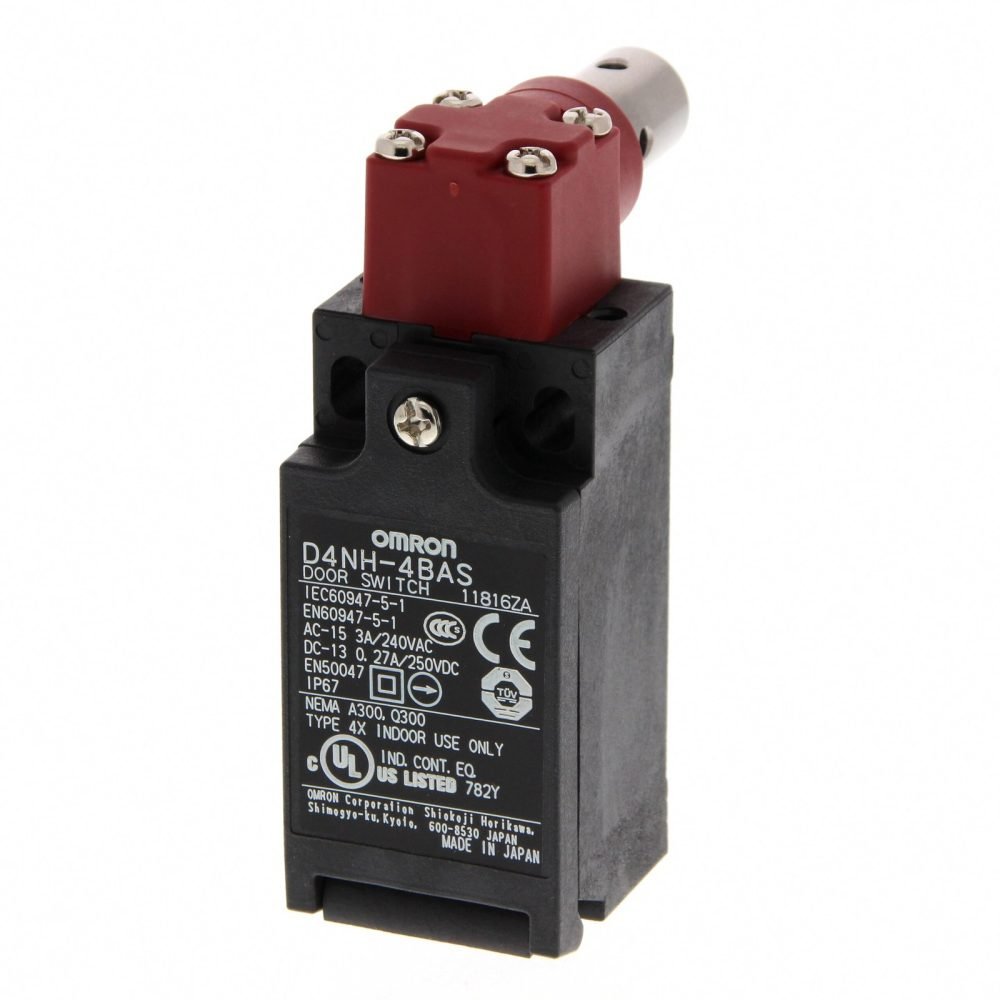

D4NH-4BAS – Güvenlik Limit switchi, D4NH, M20 (1 kablo yuvası), 2NC (yavaş kapama), mil aktüatörlü
D4NH-4BAS
| Model No | D4NH-4BAS |
|---|---|
| SKU | D4NH4BAS |
| HS Code | 8536.5015.00 |
| Category | Mechanical Sensors and Limit Switches |
Description
Güvenlik Limit switchi, D4NH, M20 (1 kablo yuvası), 2NC (yavaş kapama), mil aktüatörlü
Specifications
| Model No | D4NH-4BAS |
| SKU | D4NH4BAS |
| HS CODE | 8536.5015.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Safety Limit switchi |
|---|---|
| Connector | mil aktüatörlü |
| Rated operation current Ie at AC-15, 230 V | 3 A |
| Rated operation current Ie at DC-13, 230 V | 0.27 A |
| Housing material | Plastic |
| Suitable for safety functions | Yes |
| Coating housing | Other |
| With status indication | No |
| Type of switching contact | Slow-action switch |
| Type of interface for safety communication | None |
| Type of electric connection | Cable entry metrical |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP67 |
| Forced opening | Yes |
| Number of safety auxiliary contacts | 23 |
| Type of control element | Full shaft |
| Type of interface | None |
| Rated operation current Ie at AC-15, 125 V | 3 A |
| Rated operation current Ie at AC-15, 24 V | 3 A |
| Rated operation current Ie at DC-13, 125 V | 0.27 A |
| Rated operation current Ie at DC-13, 24 V | 0.27 A |
| Width sensor | 31 mm |
| Height of sensor | 30 mm |
| Length of sensor | 82.5 mm |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- D4NH
- M20 (1 cable yuvası)
- 2NC (yavaş kapama)
