OMRON
SKU: D4NL0106M
On Order

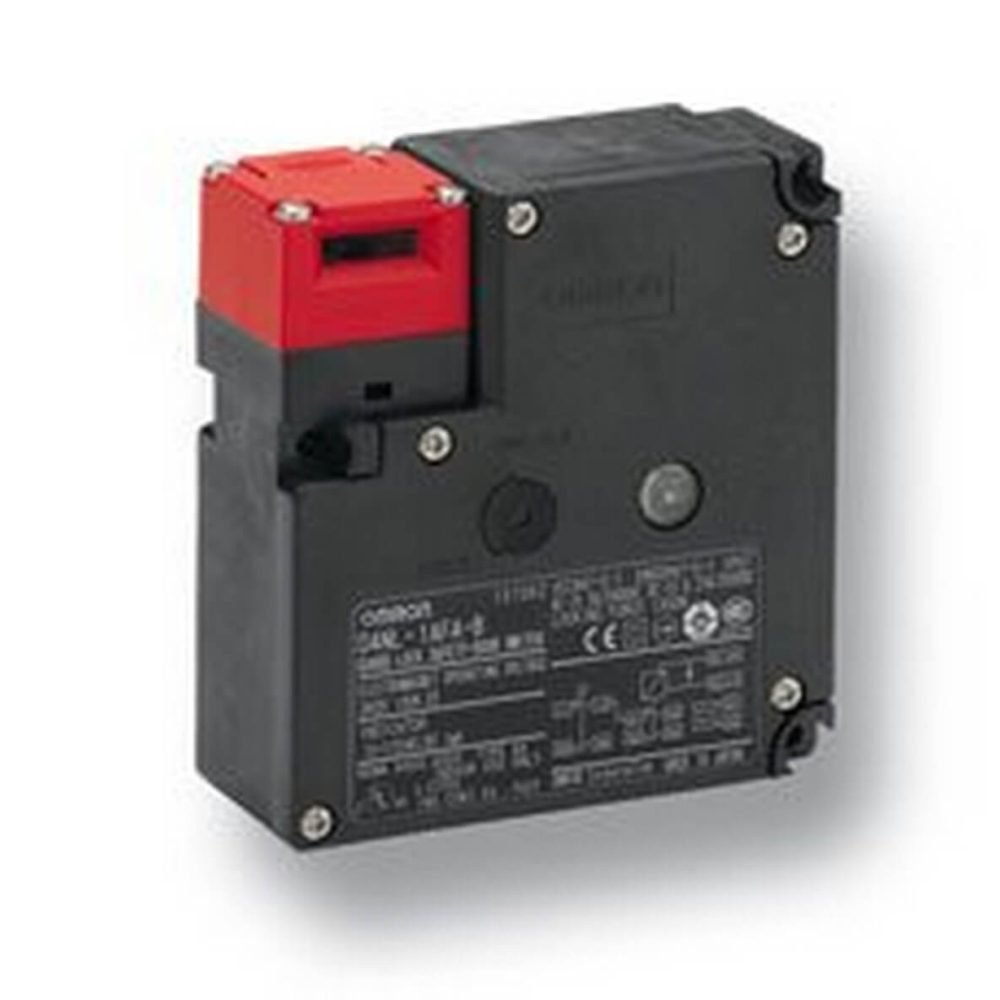

D4NL-1AFB-B
| Model No | D4NL-1AFB-B |
|---|---|
| SKU | D4NL0106M |
| Category | Safety Switches |
Specifications
| Rated operation current Ie at AC-15, 230 V | 0 A |
|---|---|
| Rated operation current Ie at DC-13, 230 V | 0 A |
| Housing material | Other |
| Suitable for safety functions | Yes |
| Coating housing | Other |
| With status indication | Yes |
| Type of switching contact | Slow-action switch |
| Type of interface for safety communication | None |
| Type of electric connection | Cable entry PG |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP67 |
| Number of safety auxiliary contacts | 0 |
| Type of interface | None |
| Rated control supply voltage magnet drive AC 50 Hz | 99 V |
| Rated control supply voltage magnet drive AC 60 Hz | 99 V |
| Rated operation current Ie at AC-15, 125 V | 3 A |
| Rated operation current Ie at AC-15, 24 V | 0 A |
| Rated operation current Ie at DC-13, 125 V | 0.27 A |
| Rated operation current Ie at DC-13, 24 V | 0 A |
| Width sensor | 88.5 mm |
| With escape release | Yes |
| Height of sensor | 35.5 mm |
| Length of sensor | 95 mm |
| Ambient temperature during operating | -10 u00b0C |
| Guard locking force | 1300 N |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | Other |
| Type of guard locking | Quiescent current principle |
Technical data supplied by OMRON and classified to ETIM 10.
