OMRON
SKU: D5B5011
On Order
Mechanical Sensors and Limit Switches

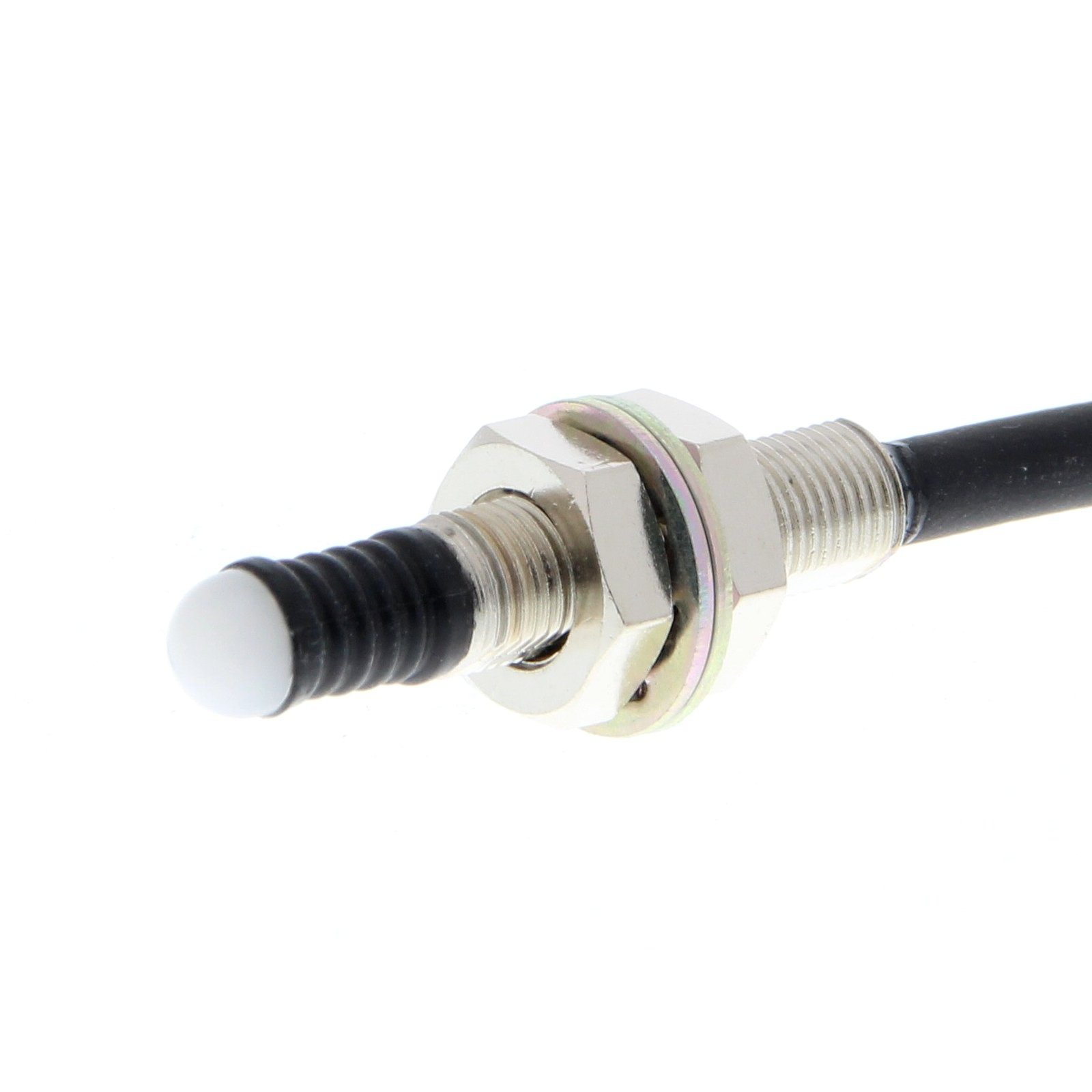

D5B-5011 – Tactile Limit switch, M5 body, hemispheric actuator, 1 m prewired
D5B-5011
| Model No | D5B-5011 |
|---|---|
| SKU | D5B5011 |
| HS Code | 8536.5015.00 |
| Category | Mechanical Sensors and Limit Switches |
Description
Tactile Limit switch, M5 body, hemispheric actuator, 1 m prewired
Specifications
| Model No | D5B-5011 |
| SKU | D5B5011 |
| HS CODE | 8536.5015.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Tactile Limit switch |
|---|---|
| Cable Length | 1 m prewired |
| Switching function | Slow-action switch |
| Housing material | Metal |
| Suitable for safety functions | No |
| Coating housing | Other |
| With status indication | No |
| Type of interface for safety communication | None |
| Type of electric connection | With cable preassembled |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Other |
| Degree of protection (IP) | IP67 |
| Forced opening | No |
| Number of safety auxiliary contacts | 0 |
| Type of control element | Plunger |
| Type of interface | None |
| Output electronic | No |
| Rated operation current Ie at DC-13, 24 V | 0.03 A |
| Diameter sensor | 5 mm |
| Length of sensor | 24.5 mm |
| Switching function latching | No |
| Ambient temperature during operating | -10 u00b0C |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Alignment of the control element | Other |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- M5 body
- hemispheric actuator
