OMRON
SKU: E2A 7155R
On Order

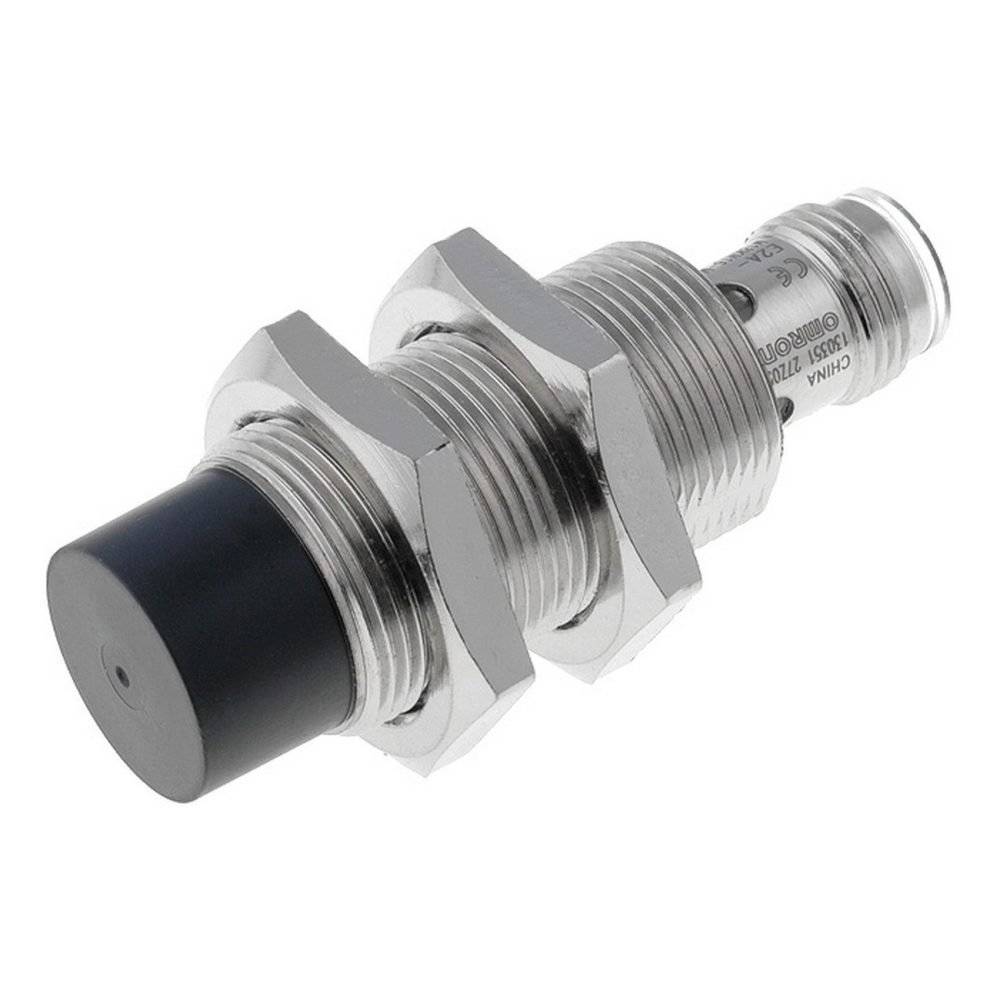

E2A-S18KN16-M1-B1 OMC
| Model No | E2A-S18KN16-M1-B1 OMC |
|---|---|
| SKU | E2A 7155R |
| Category | Inductive Sensors |
Specifications
| Voltage type | DC |
|---|---|
| Cascadable | Yes |
| Housing material | Metal |
| Suitable for safety functions | No |
| Coating housing | Other |
| Switching frequency | 400 Hz |
| Switching distance | 16 mm |
| Number of semiconductor outputs with signalling function | 1 |
| Number of contact energized outputs with signalling function | 0 |
| Number of protected semiconductor outputs | 0 |
| Number of protected contact energized outputs | 0 |
| Type of interface for safety communication | None |
| Type of electric connection | Connector M12 |
| Type of switching output | PNP |
| Type of switch function | Normally open contact (NO) |
| Rated control supply voltage DC | 12 V |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cylinder, screw-thread |
| Mechanical mounting condition for sensor | Not flat |
| With monitoring function downstream switching devices | No |
| Supply voltage | 10 V |
| Type of actuation | Metallic Target |
| Type of interface | None |
| Compression-resistant | No |
| Diameter sensor | 18 mm |
| Length of sensor | 53 mm |
| Performance level according to EN ISO 13849-1 | Level a |
| SIL according to IEC 61508 | None |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
