OMRON
SKU: E2BM12KN08M1B120OMS
On Order

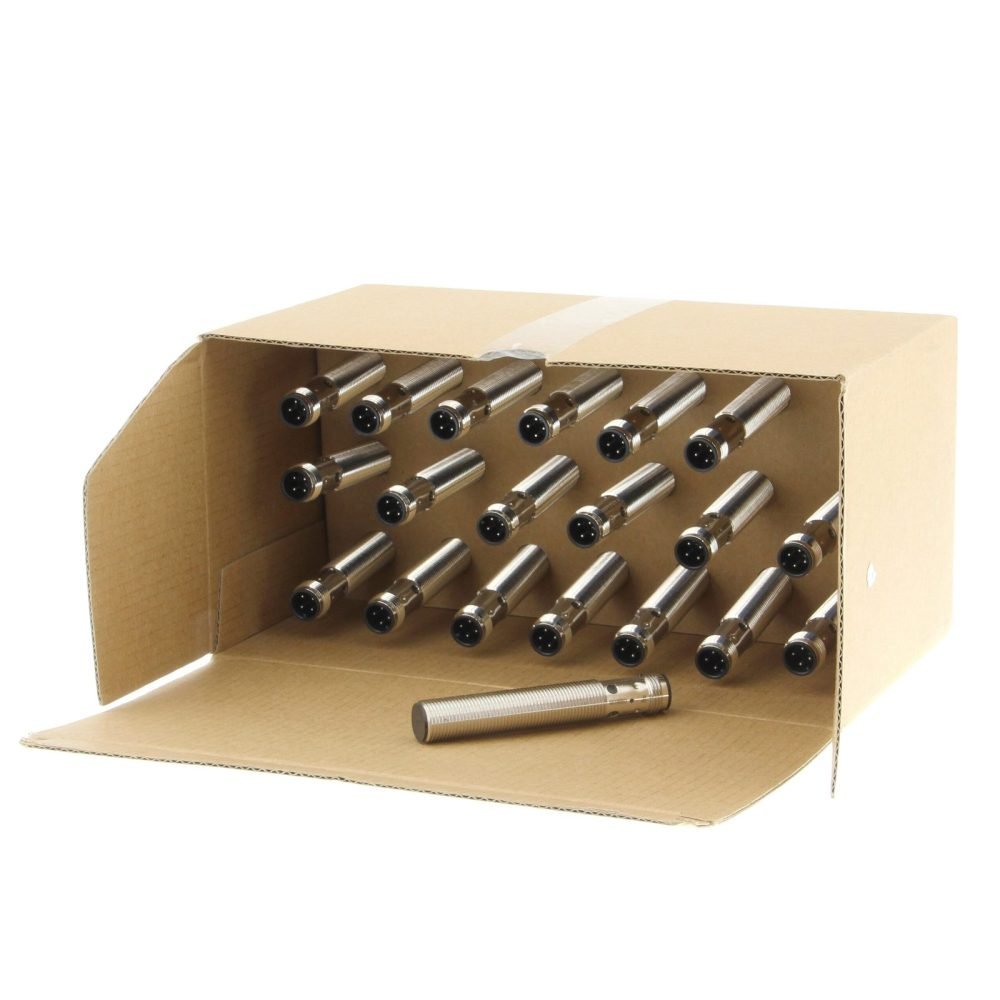

E2B-M12KN08-M1-B1-20 – Multi-pack E2B-M12KN08-M1-B1 OMS: 1 pcs. = 1 box of 20 pcs.
E2B-M12KN08-M1-B1-20
| Model No | E2B-M12KN08-M1-B1-20 |
|---|---|
| SKU | E2BM12KN08M1B120OMS |
| HS Code | 8536.5080.00 |
| Category | Inductive Sensors |
Description
Multi-pack E2B-M12KN08-M1-B1 OMS: 1 pcs. = 1 box of 20 pcs.
Specifications
| Model No | E2B-M12KN08-M1-B1-20 |
| SKU | E2BM12KN08M1B120OMS |
| HS CODE | 8536.5080.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Multi-pack E2B-M12KN08-M1-B1 OMS: 1 pcs. = 1 box of 20 pcs. |
|---|---|
| Voltage type | DC |
| Cascadable | No |
| Housing material | Metal |
| Suitable for safety functions | No |
| Coating housing | Nickel-plated |
| Switching frequency | 1000 Hz |
| Switching distance | 8 mm |
| Number of semiconductor outputs with signalling function | 1 |
| Number of contact energized outputs with signalling function | 1 |
| Number of protected semiconductor outputs | 1 |
| Number of protected contact energized outputs | 1 |
| Type of interface for safety communication | None |
| Type of electric connection | Connector M12 |
| Type of switching output | PNP |
| Type of switch function | Normally open contact (NO) |
| Rated control supply voltage DC | 10 V |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cylinder, screw-thread |
| Mechanical mounting condition for sensor | Not flat |
| With monitoring function downstream switching devices | No |
| Supply voltage | 10 V |
| Type of actuation | Metallic Target |
| Type of interface | None |
| Compression-resistant | No |
| Diameter sensor | 12 mm |
| Length of sensor | 200 mm |
| Performance level according to EN ISO 13849-1 | None |
| Interference resistance to magnetic fields | Immune against magnetic DC-field |
| SIL according to IEC 61508 | None |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
