OMRON
SKU: E32 1534M
On Order
Fibre Optic Sensors and Amplifiers

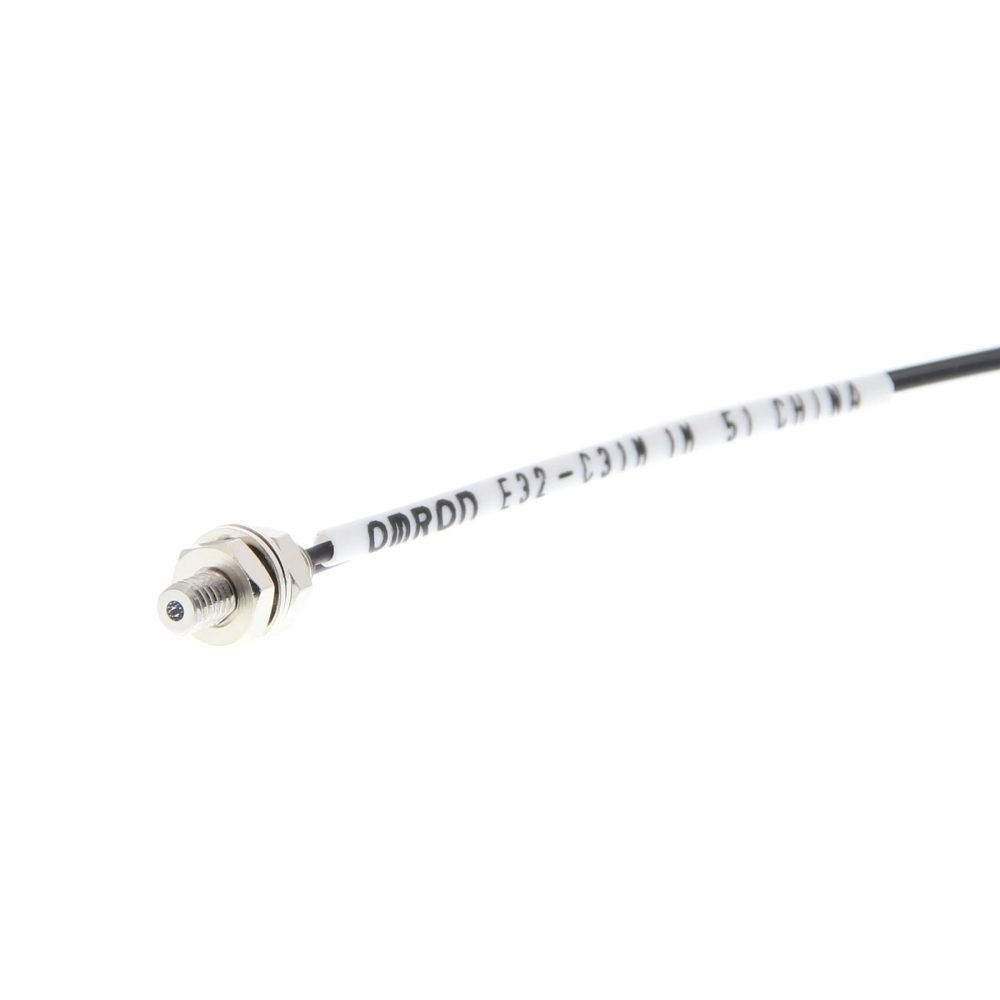

E32-C31M 1M
| Model No | E32-C31M 1M |
|---|---|
| SKU | E32 1534M |
| Category | Fibre Optic Sensors and Amplifiers |
Specifications
| Voltage type | DC |
|---|---|
| Indication | Other |
| Housing material | Plastic |
| Ambient temperature | -40 u00b0C |
| With time function | No |
| Number of semiconductor outputs with signalling function | 0 |
| Number of contact energized outputs with signalling function | 0 |
| Type of electric connection | Cable |
| Type of switching output | Other |
| Type of switch function | Programmable/configurable |
| With blanking function | No |
| Operation agent-safety class | Safety class 0 |
| Setting procedure | Manual adjustment |
| Construction type housing | Cylinder, screw-thread |
| Laser protection class | Other |
| Type of light | Polarity free red light |
| Nominal operating distance | 220 mm |
| Material of cable sheath | Polyurethane (PUR) |
| Material fibre optics core | Plastic |
| Degree of protection (IP) | IP67 |
| Analogue output 0 V ... 10 V | No |
| Analogue output 0 mA ... 20 mA | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |
| Diameter sensor | 5 mm |
Technical data supplied by OMRON and classified to ETIM 10.
Get a price Request a quote for E32-C31M 1M Name, company, email, phone and your quantity — our team replies with cost, lead time and availability. Open form
Pricing is issued per enquiry. Send us the details and our technical team will respond with cost, lead time and availability.
