OMRON
SKU: E32 1576F
On Order
Fibre Optic Sensors and Amplifiers

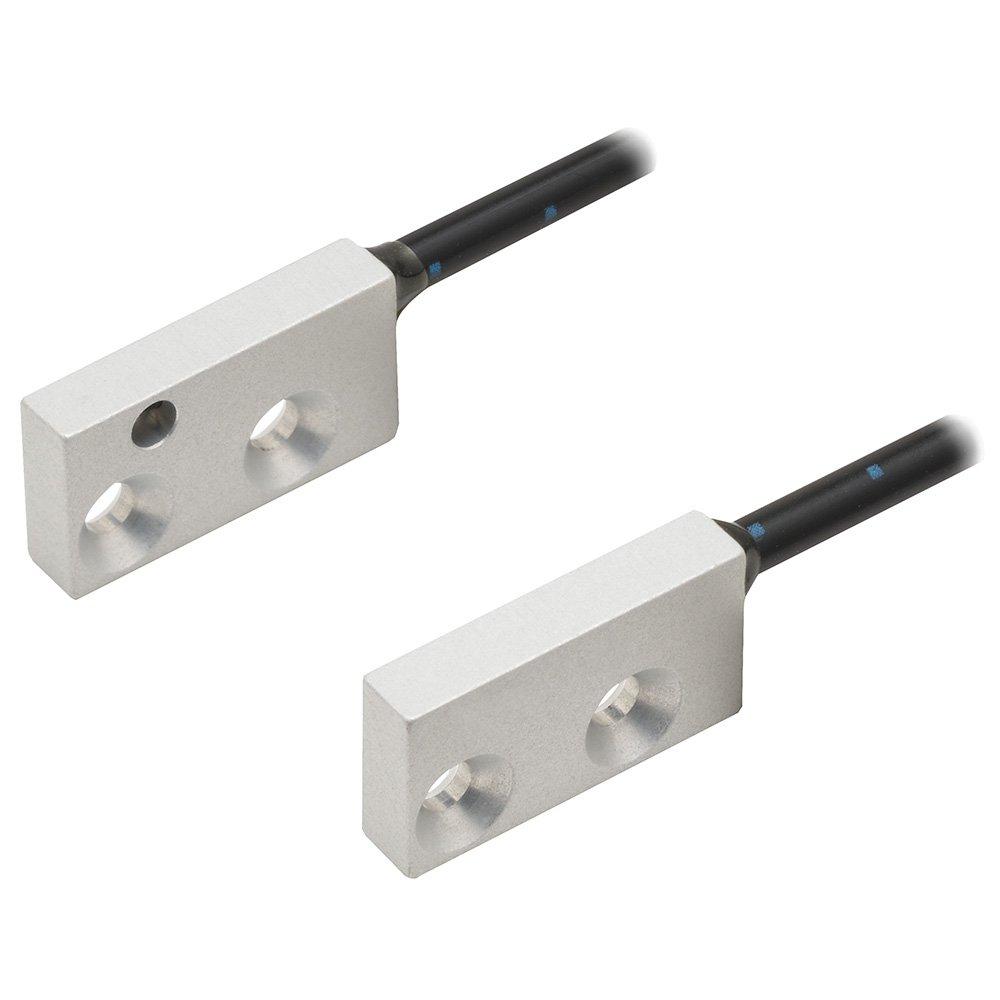

E32-T15Z 2M
| Model No | E32-T15Z 2M |
|---|---|
| SKU | E32 1576F |
| Category | Fibre Optic Sensors and Amplifiers |
Specifications
| Voltage type | Other |
|---|---|
| Indication | Other |
| Housing material | Aluminium |
| Ambient temperature | -40 u00b0C |
| With time function | No |
| Number of semiconductor outputs with signalling function | 0 |
| Number of contact energized outputs with signalling function | 0 |
| Type of electric connection | Cable |
| Type of switching output | Other |
| Type of switch function | Programmable/configurable |
| With blanking function | No |
| Operation agent-safety class | Safety class 0 |
| Setting procedure | Other |
| Construction type housing | Cuboid |
| Laser protection class | Other |
| Type of light | Polarity free red light |
| Nominal operating distance | 1400 mm |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Material fibre optics core | Plastic |
| Degree of protection (IP) | IP67 |
| Analogue output 0 V ... 10 V | No |
| Analogue output 0 mA ... 20 mA | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |
| Height amplifier | 15 mm |
| Length amplifier | 8 mm |
Technical data supplied by OMRON and classified to ETIM 10.
