OMRON
SKU: E3JM2104C
On Order

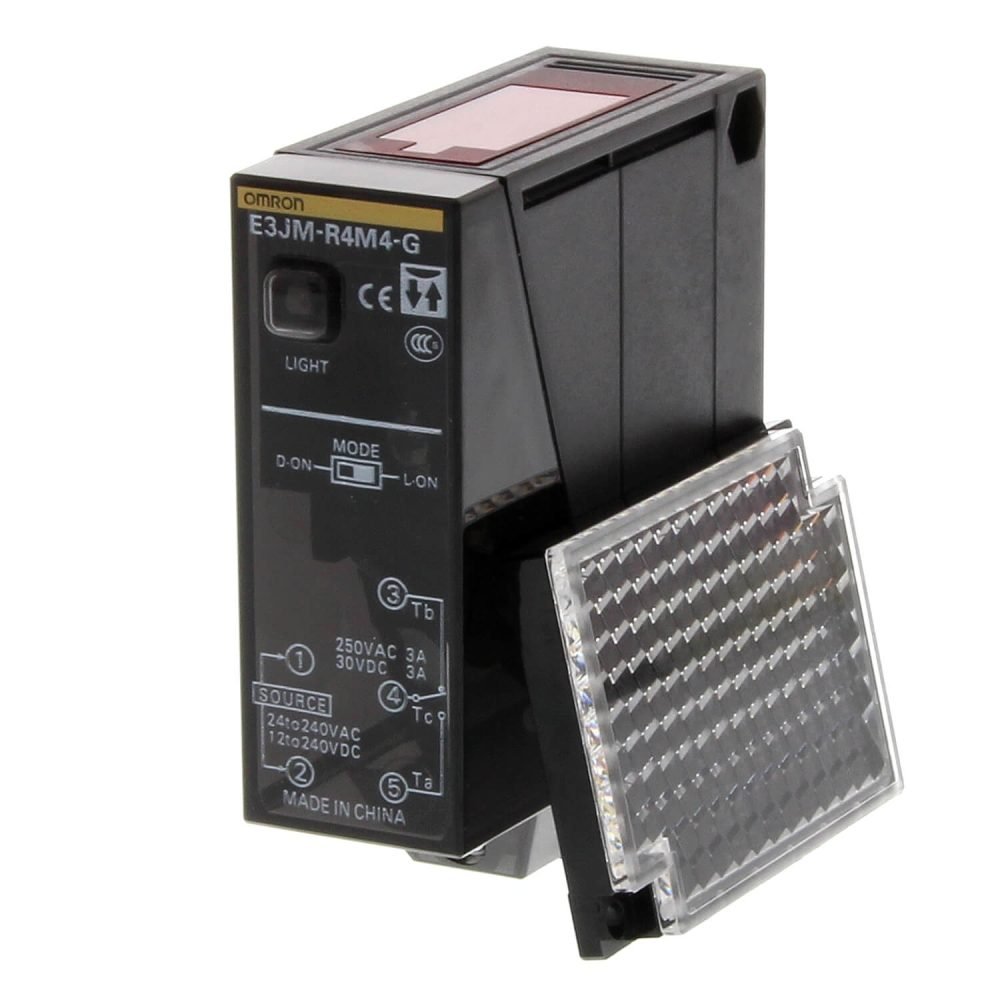

E3JM-R4M4 OMS
| Model No | E3JM-R4M4 OMS |
|---|---|
| SKU | E3JM2104C |
| Category | Photoelectric Sensors |
Specifications
| Voltage type | AC/DC |
|---|---|
| Max. output current | 3000 mA |
| Housing material | Plastic |
| Suitable for safety functions | No |
| Ambient temperature | -25 u00b0C |
| With time function | No |
| With reflector | Yes |
| Switching frequency | 16 Hz |
| Number of semiconductor outputs with signalling function | 0 |
| Number of contact energized outputs with signalling function | 1 |
| Number of protected semiconductor outputs | 0 |
| Number of protected contact energized outputs | 0 |
| Type of interface for safety communication | Other |
| Type of electric connection | Screw connection |
| Type of switching output | Relay contact |
| Type of switch function | Change-over contact (NO/NC) |
| Rated control supply voltage AC 50 Hz | 100 V |
| Rated control supply voltage AC 60 Hz | 100 V |
| Rated control supply voltage DC | 24 V |
| Operation agent-safety class | Safety class 2 |
| Setting procedure | Other |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Laser protection class | None |
| Type of light | Polarized red light |
| Light dot | 32000 mmu00b2 |
| Min. reflector distance | 1000 mm |
| With monitoring function downstream switching devices | No |
| With restart blockage | No |
| Response time | 30 ms |
| Pre failure notice | No |
| Wavelength of the sensor | 660 nm |
| Material of optical surface | Plastic |
| Degree of protection (IP) | IP66 |
| Analogue output 0 V ... 10 V | No |
| Analogue output 0 mA ... 20 mA | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |
| Width sensor | 25 mm |
| Height of sensor | 80 mm |
| With communication interface analogue | No |
| With communication interface AS-Interface | No |
| With communication interface CANOpen | No |
| With communication interface DeviceNet | No |
| With communication interface Ethernet | No |
| With communication interface INTERBUS | No |
| With communication interface PROFIBUS | No |
| With communication interface RS-232 | No |
| With communication interface RS-422 | No |
| With communication interface RS-485 | No |
| With communication interface SSD | No |
| With communication interface SSI | No |
| Length of sensor | 75 mm |
| Max. switching distance | 6000 mm |
| With other analogue output | No |
| Sensing mode | Light-/dark switching |
| Rated switching distance | 4000 mm |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
