OMRON
SKU: E3X 2028H
On Order
Fibre Optic Sensors and Amplifiers

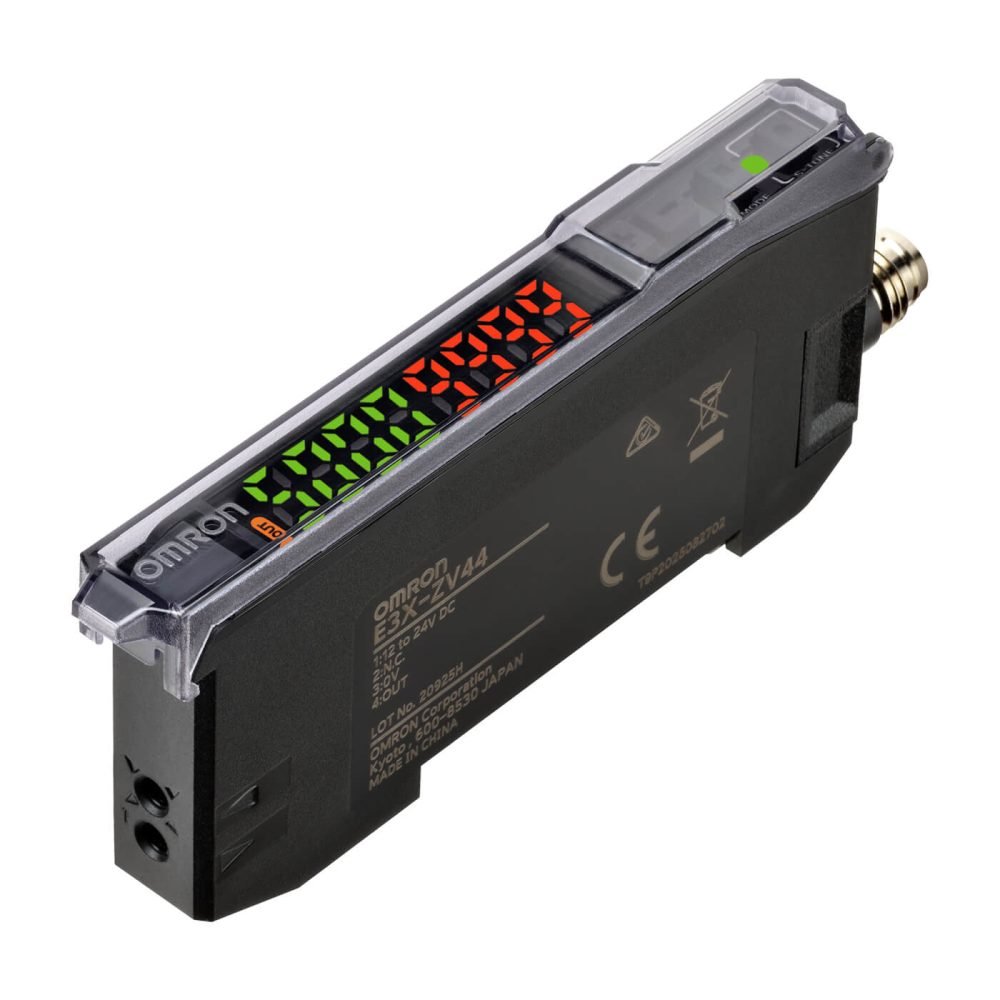

E3X-ZV44
| Model No | E3X-ZV44 |
|---|---|
| SKU | E3X 2028H |
| Category | Fibre Optic Sensors and Amplifiers |
Specifications
| Voltage type | DC |
|---|---|
| Indication | Digital |
| Max. output current | 100 mA |
| Housing material | Plastic |
| Ambient temperature | -25 u00b0C |
| With time function | Yes |
| Switching frequency | 10000 Hz |
| Number of semiconductor outputs with signalling function | 1 |
| Number of contact energized outputs with signalling function | 0 |
| Type of electric connection | Connector M8 |
| Type of switching output | PNP |
| Type of switch function | Programmable/configurable |
| With blanking function | No |
| Rated control supply voltage DC | 12 V |
| Operation agent-safety class | Safety class 3 |
| Setting procedure | Teach-In |
| Construction type housing | Cuboid |
| Laser protection class | Other |
| No-load current | 0.1 mA |
| Type of light | Polarity free red light |
| Analogue output 0 V ... 10 V | No |
| Analogue output 0 mA ... 20 mA | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |
| Width amplifier | 10 mm |
| Height amplifier | 36.5 mm |
| Length amplifier | 75 mm |
Technical data supplied by OMRON and classified to ETIM 10.
