OMRON
SKU: E3Z 7205F
On Order

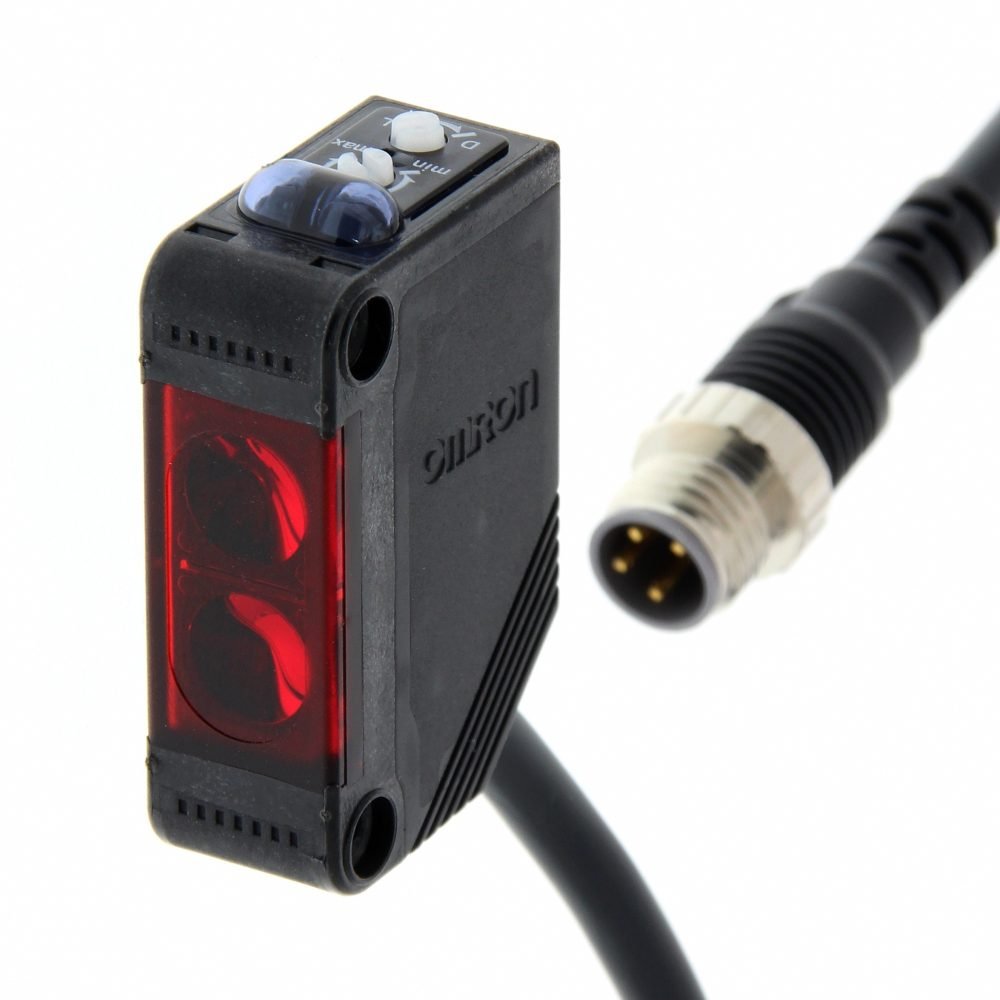

E3Z-R81-M3J 0.3M OMS
| Model No | E3Z-R81-M3J 0.3M OMS |
|---|---|
| SKU | E3Z 7205F |
| Category | Photoelectric Sensors |
Specifications
| Voltage type | DC |
|---|---|
| Max. output current | 100 mA |
| Housing material | Plastic |
| Suitable for safety functions | No |
| Ambient temperature | -25 u00b0C |
| With time function | No |
| With reflector | No |
| Switching frequency | 1000 Hz |
| Number of semiconductor outputs with signalling function | 1 |
| Number of contact energized outputs with signalling function | 0 |
| Number of protected semiconductor outputs | 0 |
| Number of protected contact energized outputs | 0 |
| Type of interface for safety communication | Other |
| Type of electric connection | Cable with connector |
| Type of switching output | PNP |
| Type of switch function | Programmable/configurable |
| Rated control supply voltage DC | 12 V |
| Operation agent-safety class | Safety class 3 |
| Setting procedure | Manual adjustment |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Laser protection class | None |
| Type of light | Polarized red light |
| Min. reflector distance | 100 mm |
| With monitoring function downstream switching devices | No |
| With restart blockage | No |
| Response time | 1 ms |
| Pre failure notice | No |
| Wavelength of the sensor | 660 nm |
| Material of optical surface | Plastic |
| Degree of protection (IP) | IP67 |
| Analogue output 0 V ... 10 V | No |
| Analogue output 0 mA ... 20 mA | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |
| Width sensor | 10.8 mm |
| Height of sensor | 32.2 mm |
| With communication interface analogue | No |
| With communication interface AS-Interface | No |
| With communication interface CANOpen | No |
| With communication interface DeviceNet | No |
| With communication interface Ethernet | No |
| With communication interface INTERBUS | No |
| With communication interface PROFIBUS | No |
| With communication interface RS-232 | No |
| With communication interface RS-422 | No |
| With communication interface RS-485 | No |
| With communication interface SSD | No |
| With communication interface SSI | No |
| Length of sensor | 20 mm |
| Max. switching distance | 4000 mm |
| With other analogue output | No |
| Sensing mode | Light-/dark switching |
| Rated switching distance | 4000 mm |
Technical data supplied by OMRON and classified to ETIM 10.
