OMRON SKU: E6B27017E On Order

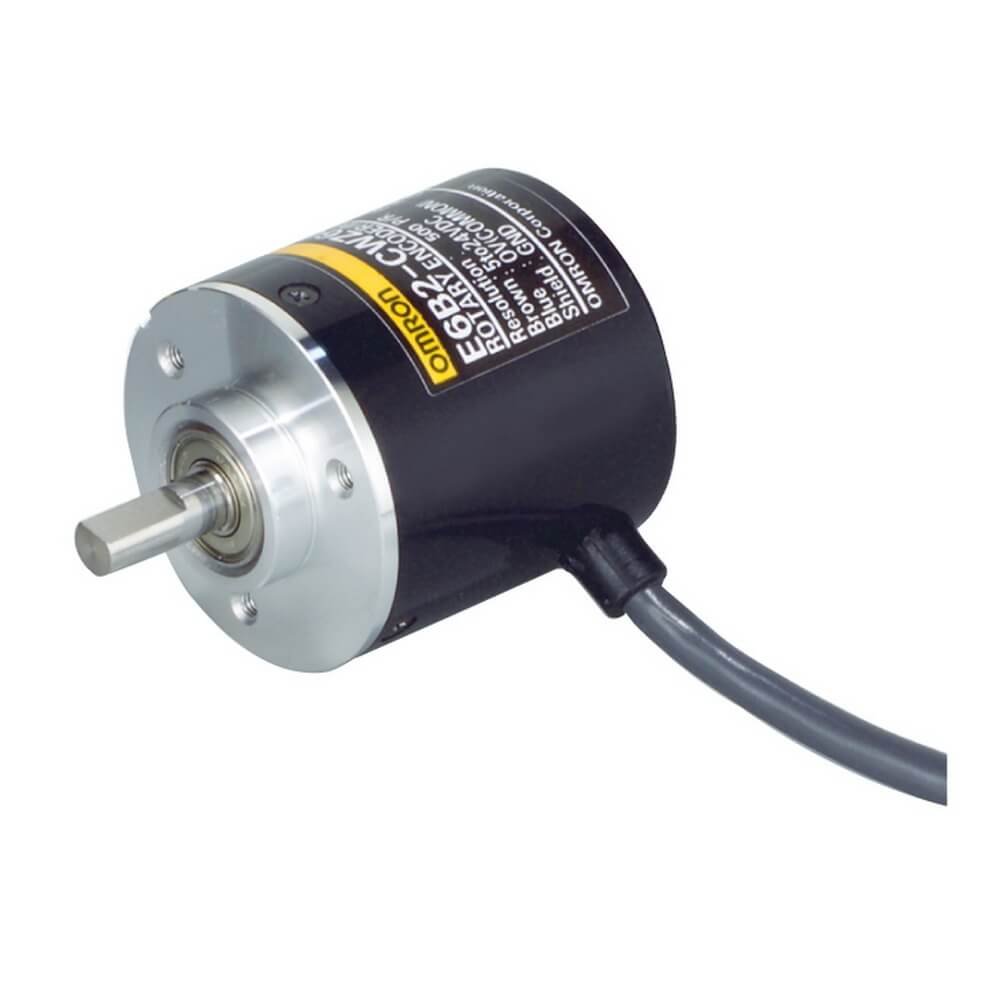

E6B2-CWZ6C 1800P/R 0.5M OMS

Model No	E6B2-CWZ6C 1800P/R 0.5M OMS
SKU	E6B27017E
Category	Rotary Encoders

Download E6B2-C Incremental Rotary Encoder 40 mm

Specifications

Model	Incremental encoder
Programmable	No
Housing material	Aluminium
Max. pulses per revolution	1800
Signal outputs of rotary encoder	A+B+0
Type of electric connection	Cable
Explosion safety category for gas	None
Explosion safety category for dust	None
Standard for interfaces	Other
Degree of protection (IP)	IP50
Number of steps per revolution	1800
Number of revolutions	0
Type of shaft encoder	Full shaft
Diameter axle	5.979 mm
Type of transmission medium	Other
Physical measurement principle	Optical
Degree of protection (NEMA)	Other
Construction size	40 mm

Technical data supplied by OMRON and classified to ETIM 10.

Downloads

E6B2-C Incremental Rotary Encoder 40 mm
