OMRON SKU: E6F 1005D On Order

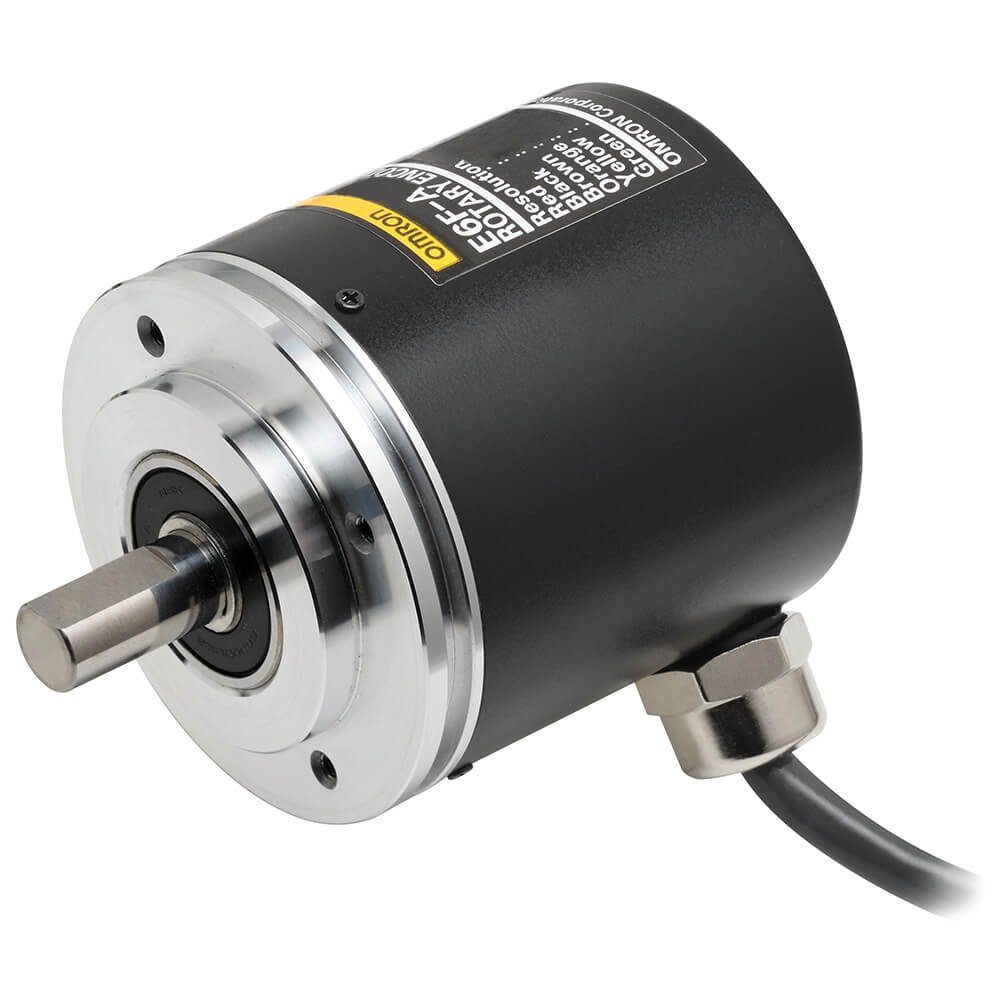

E6F-AB3C-C 360 5M

Model No	E6F-AB3C-C 360 5M
SKU	E6F 1005D
Category	Rotary Encoders

Download E6F-A Absolute 60-mm-dia. Rotary Encoder

Specifications

Model	Absolute encoder
Programmable	No
Housing material	Zinc
Max. pulses per revolution	360
Signal outputs of rotary encoder	Other
Type of electric connection	Cable with connector
Explosion safety category for gas	None
Explosion safety category for dust	None
Standard for interfaces	Other
Degree of protection (IP)	IP65
Number of steps per revolution	360
Number of revolutions	0
Type of shaft encoder	Full shaft
Diameter axle	9.985 mm
Type of transmission medium	Other
Physical measurement principle	Optical
Degree of protection (NEMA)	Other
Construction size	60 mm

Technical data supplied by OMRON and classified to ETIM 10.

Downloads

E6F-A Absolute 60-mm-dia. Rotary Encoder
