OMRON
SKU: F3STGRKHL3
On Order

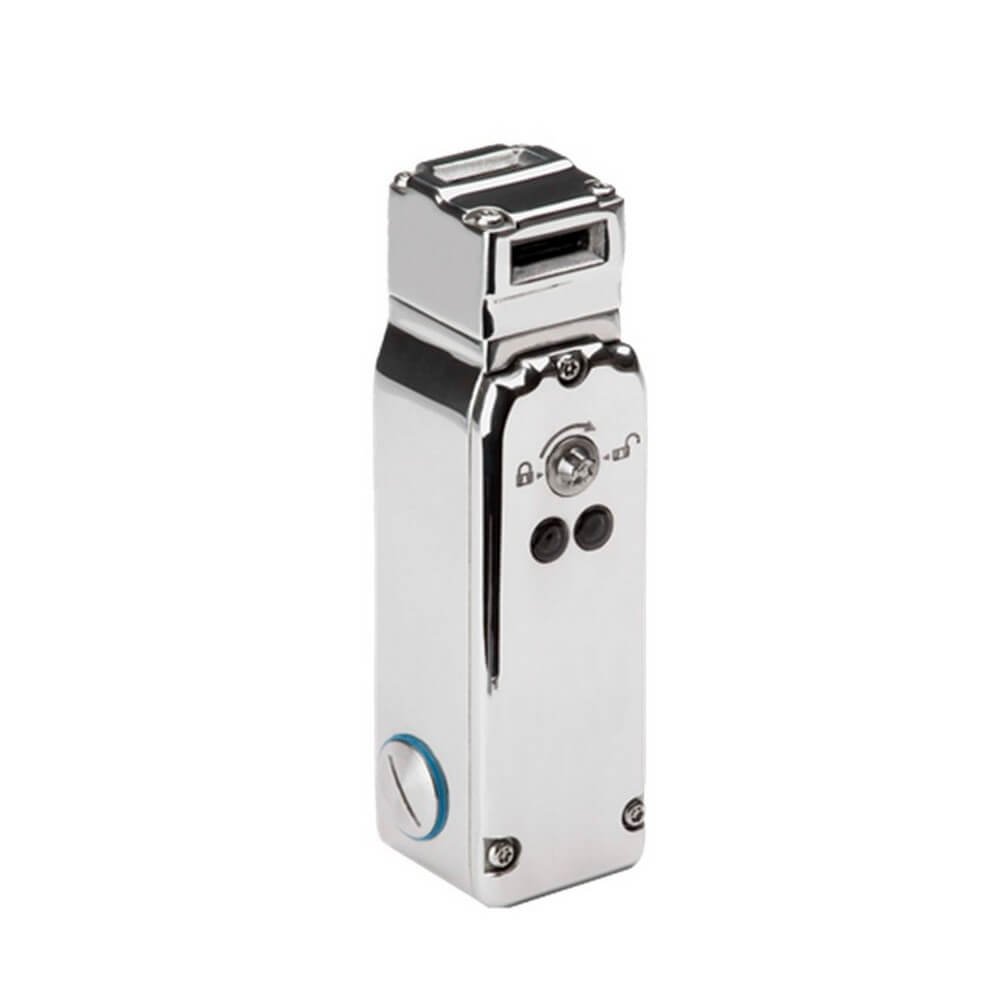

F3S-TGR-KHL3 – Safety interlock key switch, hygienic stainless steel housing, 2000N holding force, M20, 2NC/2NO
F3S-TGR-KHL3
| Model No | F3S-TGR-KHL3 |
|---|---|
| SKU | F3STGRKHL3 |
| HS Code | 8536.5005.00 |
| Category | Safety Switches |
Description
Safety interlock key switch, hygienic stainless steel housing, 2000N holding force, M20, 2NC/2NO
Specifications
| Model No | F3S-TGR-KHL3 |
| SKU | F3STGRKHL3 |
| HS CODE | 8536.5005.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Safety interlock key switch |
|---|---|
| Thread / Connector | M20 |
| Rated operation current Ie at AC-15, 230 V | 3 A |
| Housing material | Metal |
| Suitable for safety functions | Yes |
| Coating housing | Uncoated |
| With status indication | Yes |
| Type of switching contact | Slow-action switch |
| Type of interface for safety communication | None |
| Type of electric connection | Cable entry metrical |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP67 |
| Number of safety auxiliary contacts | 0 |
| Type of interface | None |
| Rated operation current Ie at AC-15, 125 V | 3 A |
| Rated operation current Ie at AC-15, 24 V | 3 A |
| Width sensor | 48 mm |
| With escape release | No |
| Height of sensor | 177 mm |
| Length of sensor | 47 mm |
| Ambient temperature during operating | -25 u00b0C |
| Guard locking force | 3000 N |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | Other |
| With auxiliary release | Yes |
| Type of guard locking | Operating current principle |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- hygienic stainless steel housing
- 2000N holding force
- 2NC/2NO
