OMRON
SKU: G7SA0001R
On Order

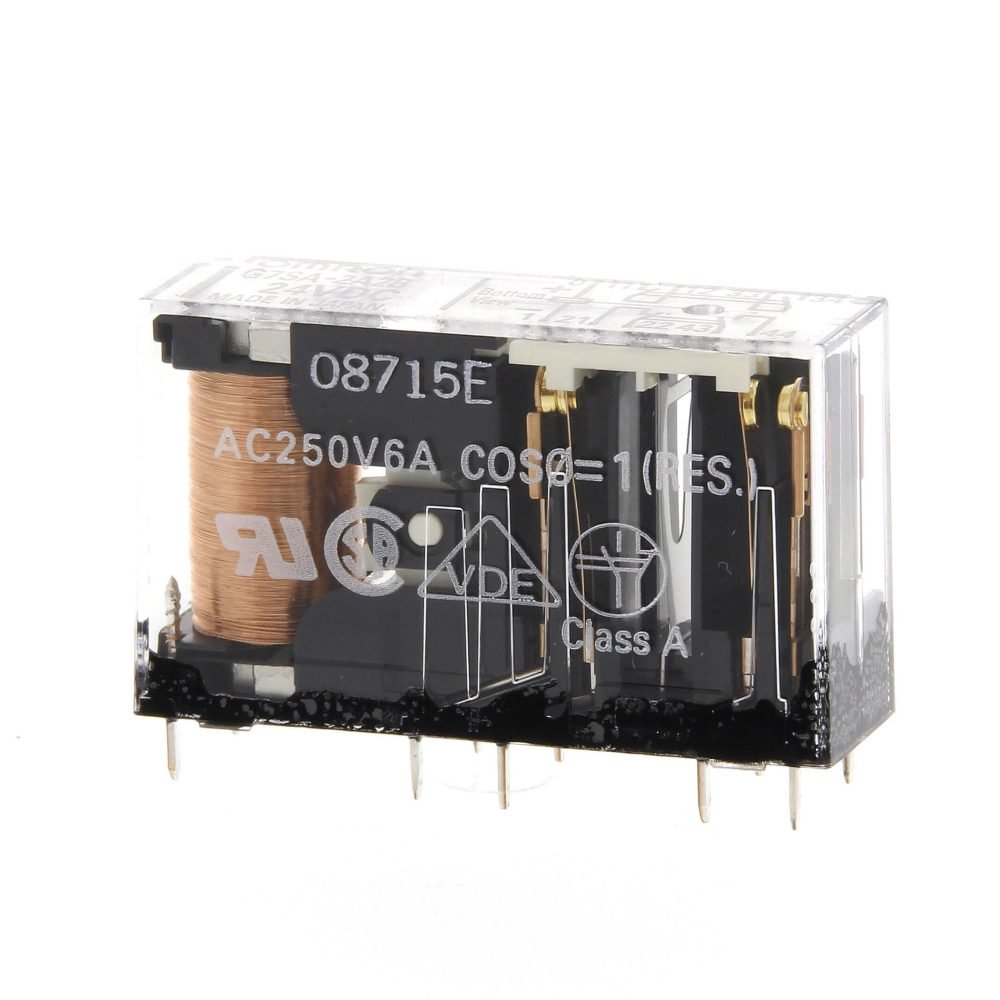

G7SA-3A1B DC24
| Model No | G7SA-3A1B DC24 |
|---|---|
| SKU | G7SA0001R |
| Category | Electromechanical Relays |
Specifications
| Nominal current | 6 A |
|---|---|
| Width | 13 mm |
| Height | 24 mm |
| Depth | 40 mm |
| With detachable clamps | No |
| Drive, polarization | Polarity free |
| Drive, switching attitude | Mono stable |
| With forced-guided contacts | Yes |
| Type of switch contact | Single contact |
| Complete with socket | No |
| Type of electric connection | Plug-in connection |
| Rated control supply voltage DC | 18 V |
| Material of contact surface | Gold |
| Voltage type (operating voltage) | AC/DC |
| Degree of protection (IP) | Other |
| With LED indication | No |
| Material contact | Other |
| Operating voltage AC 50 Hz | 0 V |
| Operating voltage AC 60 Hz | 0 V |
| Operating voltage DC | 0 V |
| Voltage type for actuating | DC |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 3 |
| Number of contacts as change-over contact | 0 |
| Material of contact insert | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Get a price Request a quote for G7SA-3A1B DC24 Name, company, email, phone and your quantity — our team replies with cost, lead time and availability. Open form
Pricing is issued per enquiry. Send us the details and our technical team will respond with cost, lead time and availability.
