OMRON
SKU: G9SE221T30DC24FOROEE
On Order

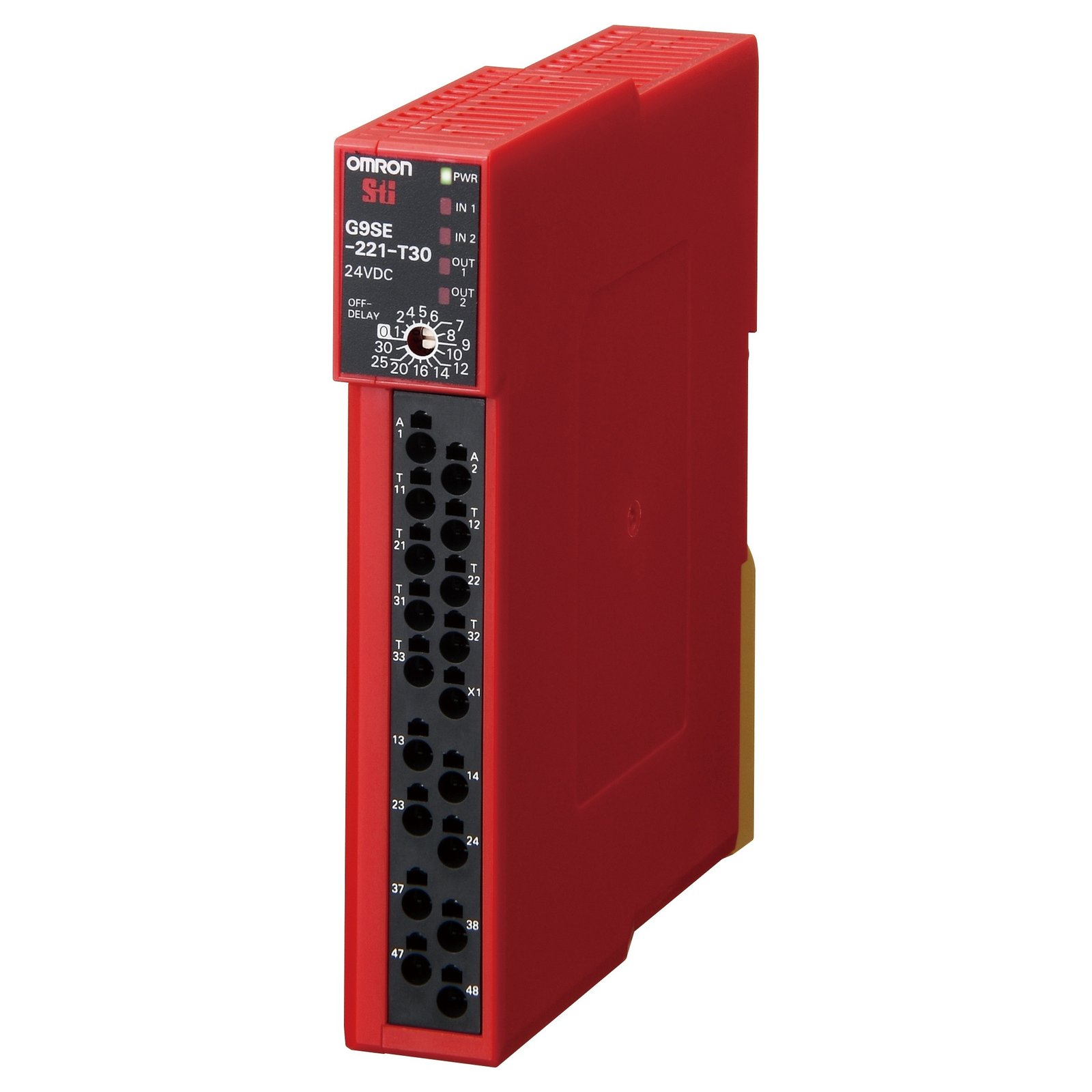

G9SE-221-T30 DC24 – Emniyet röle ünitesi, 24 VDC, 4 emniyet çıkışı 5 A maks (2 + 2, 30 s kapalı gecikmeli), yardımcı çıkışlar
G9SE-221-T30 DC24
| Model No | G9SE-221-T30 DC24 |
|---|---|
| SKU | G9SE221T30DC24FOROEE |
| HS Code | 8536.4900.99 |
| Category | Safety Logic Control Systems |
Description
Emniyet röle ünitesi, 24 VDC, 4 emniyet çıkışı 5 A maks (2 + 2, 30 s kapalı gecikmeli), yardımcı çıkışlar
Specifications
| Model No | G9SE-221-T30 DC24 |
| SKU | G9SE221T30DC24FOROEE |
| HS CODE | 8536.4900.99 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Emniyet relay unit |
|---|---|
| Supply Voltage | 24 VDC |
| Width | 22.5 mm |
| Model | Basic device |
| Height | 133 mm |
| Depth | 111.6 mm |
| Release-delay | 0 s |
| With approval according to UL | Yes |
| Voltage type (supply voltage) | DC |
| With detachable clamps | No |
| With start input | Yes |
| With feedback circuit | Yes |
| Number of outputs, safety related, undelayed, with contact | 2 |
| Number of outputs, safety related, delayed, with contact | 2 |
| Number of outputs, safety related, undelayed, semiconductors | 0 |
| Number of outputs, safety related, delayed, semiconductors | 0 |
| Number of outputs, signalling function, undelayed, with contact | 0 |
| Number of outputs, signalling function, delayed, with contact | 0 |
| Number of outputs, signalling function, undelayed, semiconductors | 1 |
| Number of outputs, signalling function, delayed, semiconductors | 0 |
| Type of electric connection | Spring clamp connection |
| Suitable for rail mounting | Yes |
| With muting function | No |
| Type of safety according to IEC 61496-1 | 4 |
| With approval for BG BIA | No |
| Voltage type (operating voltage) | AC/DC |
| Rated switch current | 5 A |
| Suitable for monitoring of magnetic switches | Yes |
| Suitable for monitoring of proximity switches | Yes |
| Suitable for monitoring of emergency-stop circuits | Yes |
| Suitable for monitoring of optoelectronic protection equipment | Yes |
| Suitable for monitoring of position switches | Yes |
| Suitable for monitoring of tactile sensors | Yes |
| Suitable for monitoring of valves | No |
| Performance level according to EN ISO 13849-1 | Level e |
| Stop category according to IEC 60204 | 0 |
| Supply voltage DC | 20.4 V |
| Operating voltage AC 50 Hz | 0 V |
| Operating voltage AC 60 Hz | 0 V |
| Operating voltage DC | 0 V |
| Evaluation inputs | One- and two-channel |
| SIL according to IEC 61508 | 3 |
| With approval for Tu00dcV | Yes |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- 4 emniyet çıkışı 5 A maks (2 + 2, 30 s kapalı gecikmeli)
- auxiliary çıkışlar
