OMRON
SKU: G9SPN10S
On Order

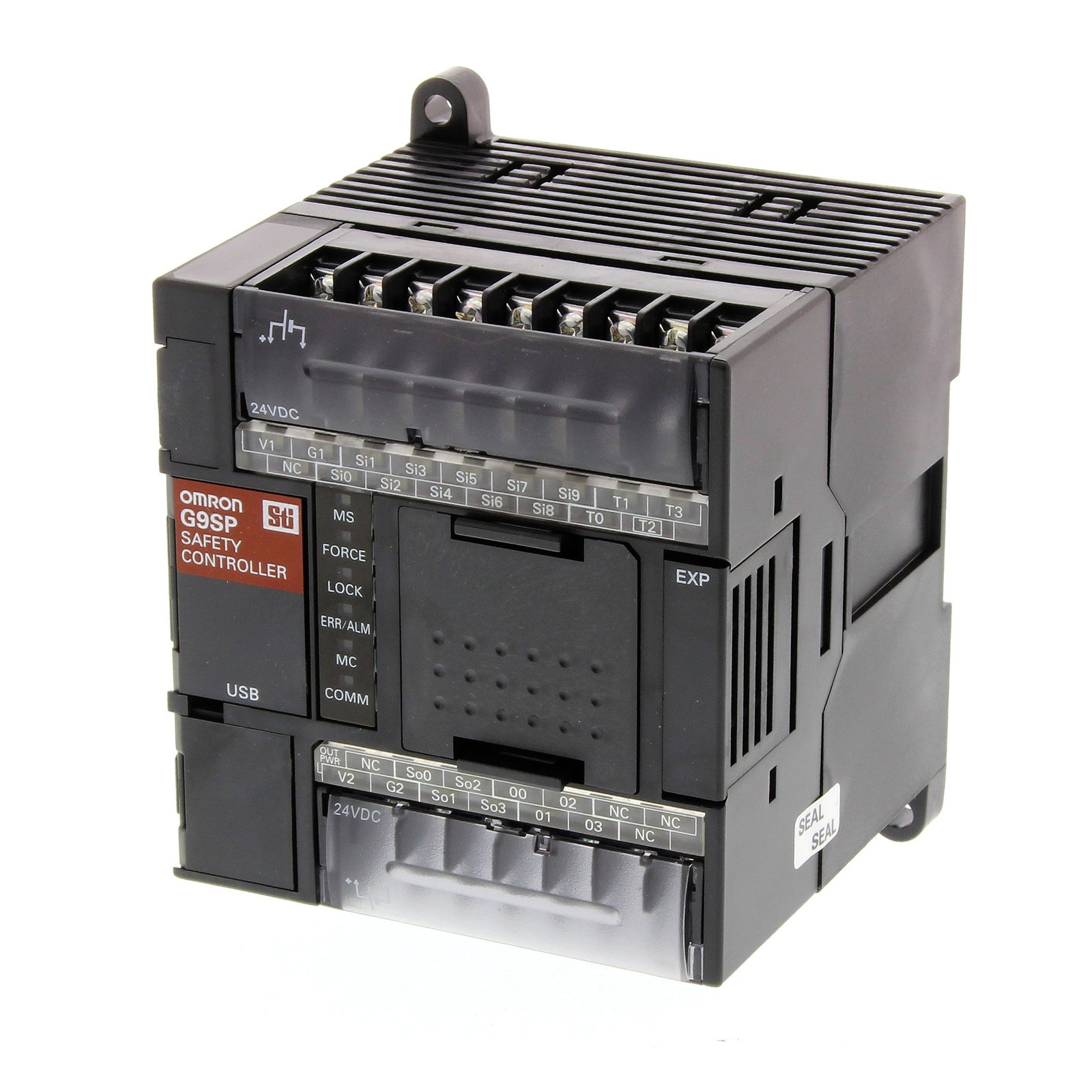

G9SP-N10S – G9SP Bağımsız Güvenlik kontrolörü, 10 Güvenlik giriş, 4 Güvenlik çıkış, 4 test çıkış, 4 standart çıkış. PNP
G9SP-N10S
| Model No | G9SP-N10S |
|---|---|
| SKU | G9SPN10S |
| HS Code | 8471.4100.00 |
| Category | Safety Logic Control Systems |
Description
G9SP Bağımsız Güvenlik kontrolörü, 10 Güvenlik giriş, 4 Güvenlik çıkış, 4 test çıkış, 4 standart çıkış. PNP
Specifications
| Model No | G9SP-N10S |
| SKU | G9SPN10S |
| HS CODE | 8471.4100.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | G9SP Independent Safety controller |
|---|---|
| Input | 10 Safety input |
| Output | 4 Safety output |
| Output 2 | 4 test output |
| Output 3 | 4 standart output. PNP |
| Width | 86 mm |
| Model | Basic device |
| Height | 90 mm |
| Depth | 81 mm |
| With approval according to UL | No |
| Voltage type (supply voltage) | DC |
| With detachable clamps | No |
| With start input | No |
| With feedback circuit | No |
| Number of outputs, safety related, undelayed, with contact | 0 |
| Number of outputs, safety related, delayed, with contact | 0 |
| Number of outputs, safety related, undelayed, semiconductors | 4 |
| Number of outputs, safety related, delayed, semiconductors | 0 |
| Number of outputs, signalling function, undelayed, with contact | 8 |
| Number of outputs, signalling function, delayed, with contact | 0 |
| Number of outputs, signalling function, undelayed, semiconductors | 0 |
| Number of outputs, signalling function, delayed, semiconductors | 0 |
| Type of electric connection | Screw connection |
| Suitable for rail mounting | Yes |
| With muting function | No |
| Type of safety according to IEC 61496-1 | 4 |
| With approval for BG BIA | No |
| Suitable for monitoring of magnetic switches | Yes |
| Suitable for monitoring of proximity switches | Yes |
| Suitable for monitoring of emergency-stop circuits | Yes |
| Suitable for monitoring of optoelectronic protection equipment | Yes |
| Suitable for monitoring of position switches | Yes |
| Suitable for monitoring of tactile sensors | Yes |
| Suitable for monitoring of valves | Yes |
| Performance level according to EN ISO 13849-1 | Level e |
| Stop category according to IEC 60204 | Other |
| Supply voltage DC | 20.4 V |
| Evaluation inputs | Other |
| SIL according to IEC 61508 | 3 |
| With approval for Tu00dcV | No |
Technical data supplied by OMRON and classified to ETIM 10.
