OMRON
SKU: G9SRBC201RC
On Order

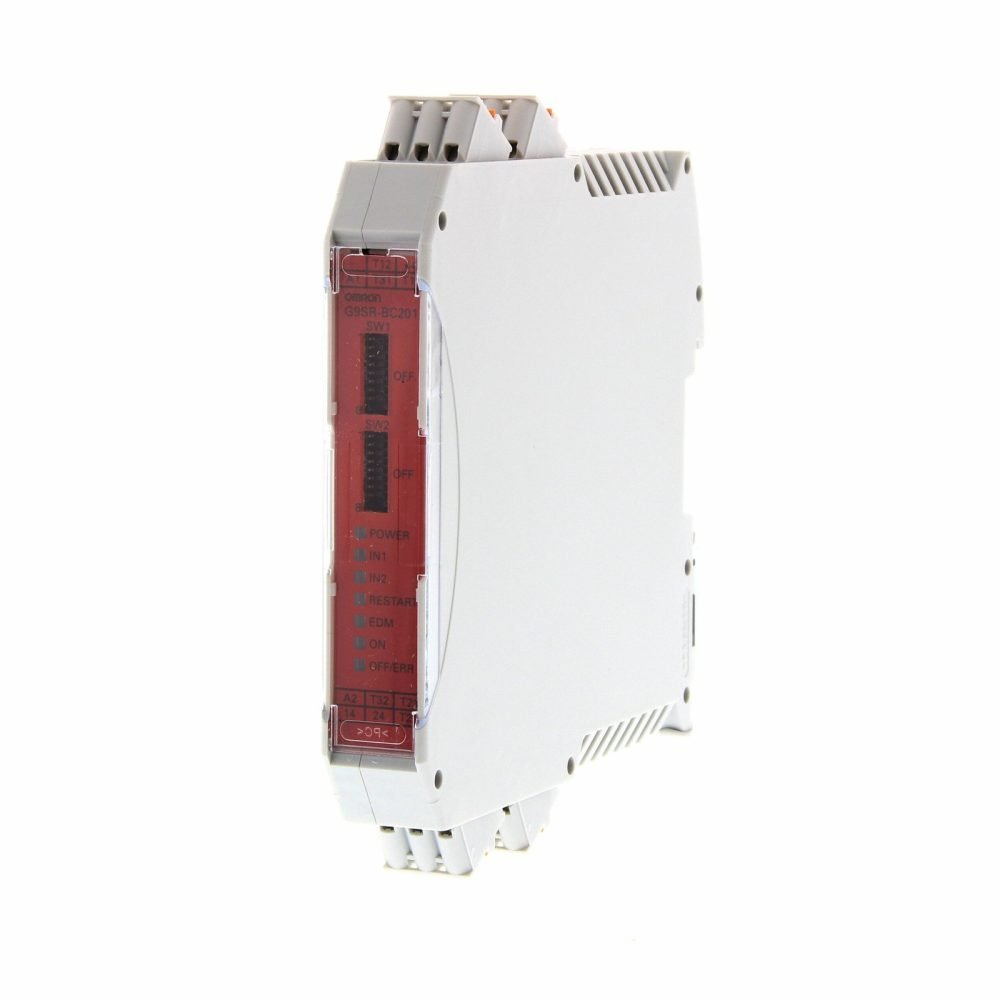

G9SR-BC201-RC – Güvenlik Rölesi ünite, 24VDC, 2 Güvenlik 2A max, ek çıkış
G9SR-BC201-RC
| Model No | G9SR-BC201-RC |
|---|---|
| SKU | G9SRBC201RC |
| HS Code | 8536.4900.99 |
| Category | Safety Logic Control Systems |
Description
Güvenlik Rölesi ünite, 24VDC, 2 Güvenlik 2A max, ek çıkış
Specifications
| Model No | G9SR-BC201-RC |
| SKU | G9SRBC201RC |
| HS CODE | 8536.4900.99 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Safety Rölesi unit |
|---|---|
| Supply Voltage | 24VDC |
| Output | ek output |
| Width | 17.6 mm |
| Model | Basic device |
| Height | 99 mm |
| Depth | 114.5 mm |
| With approval according to UL | Yes |
| Voltage type (supply voltage) | DC |
| With detachable clamps | Yes |
| With start input | No |
| With feedback circuit | No |
| Number of outputs, safety related, undelayed, with contact | 0 |
| Number of outputs, safety related, delayed, with contact | 0 |
| Number of outputs, safety related, undelayed, semiconductors | 2 |
| Number of outputs, safety related, delayed, semiconductors | 0 |
| Number of outputs, signalling function, undelayed, with contact | 0 |
| Number of outputs, signalling function, delayed, with contact | 0 |
| Number of outputs, signalling function, undelayed, semiconductors | 1 |
| Number of outputs, signalling function, delayed, semiconductors | 0 |
| Type of electric connection | Spring clamp connection |
| Suitable for rail mounting | Yes |
| With muting function | No |
| Type of safety according to IEC 61496-1 | 4 |
| With approval for BG BIA | No |
| Suitable for monitoring of magnetic switches | Yes |
| Suitable for monitoring of proximity switches | Yes |
| Suitable for monitoring of emergency-stop circuits | Yes |
| Suitable for monitoring of optoelectronic protection equipment | Yes |
| Suitable for monitoring of position switches | Yes |
| Suitable for monitoring of tactile sensors | Yes |
| Suitable for monitoring of valves | Yes |
| Performance level according to EN ISO 13849-1 | Level e |
| Stop category according to IEC 60204 | Other |
| Supply voltage DC | 19.2 V |
| Evaluation inputs | 1-channel or 1- and 2-channel |
| SIL according to IEC 61508 | 3 |
| With approval for Tu00dcV | No |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- 2 Safety 2A max
