OMRON
SKU: G9SXBC202RCDC24.1
On Order

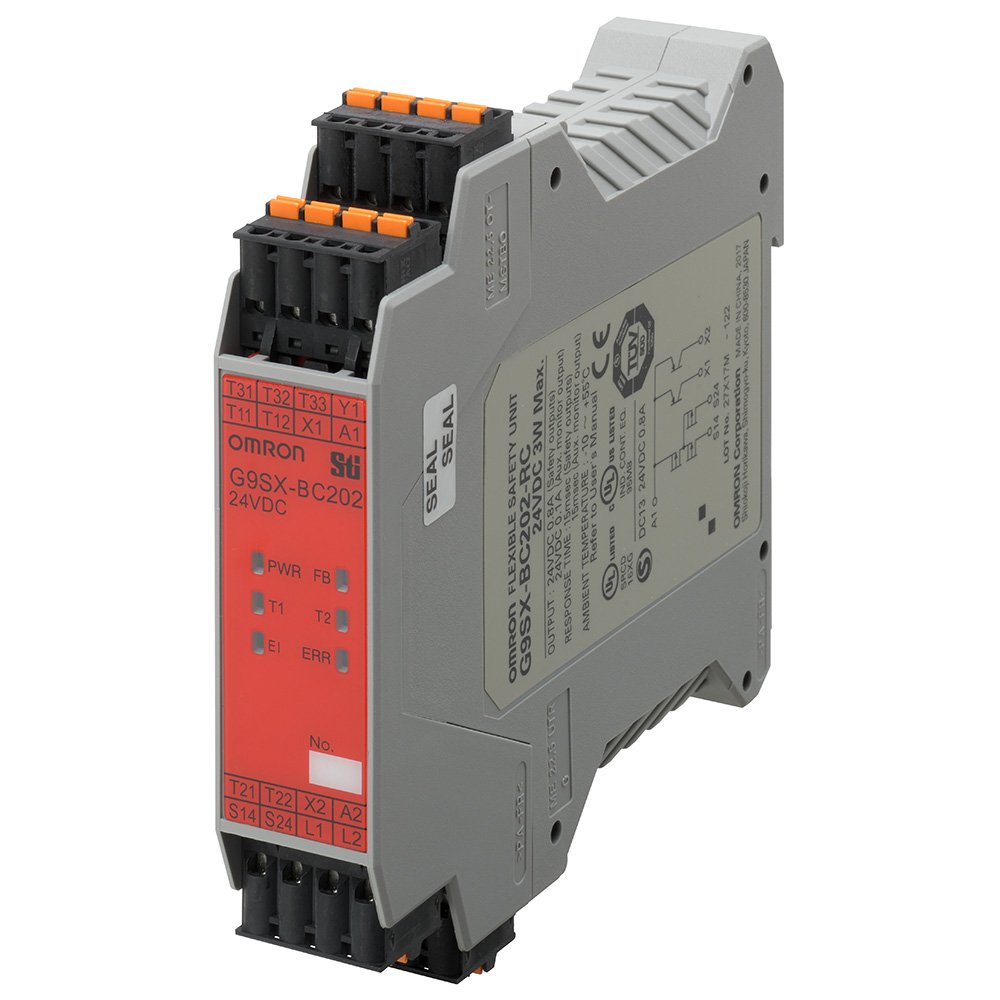

G9SX-BC202-RC DC24 – Basic unit, 2 x NO solid state safety outputs (1 A), 2 x NO solid state auxs, 2 logic AND outputs, 1 or 2 channel input, spring mounted terminals
G9SX-BC202-RC DC24
| Model No | G9SX-BC202-RC DC24 |
|---|---|
| SKU | G9SXBC202RCDC24.1 |
| HS Code | 8536.4900.99 |
| Category | Safety Logic Control Systems |
Description
Basic unit, 2 x NO solid state safety outputs (1 A), 2 x NO solid state auxs, 2 logic AND outputs, 1 or 2 channel input, spring mounted terminals
Specifications
| Model No | G9SX-BC202-RC DC24 |
| SKU | G9SXBC202RCDC24.1 |
| HS CODE | 8536.4900.99 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Basic unit |
|---|---|
| Output | 2 x NO solid state safety outputs (1 A) |
| Output 2 | 2 logic AND outputs |
| Input | 1 or 2 channel input |
| Width | 22.5 mm |
| Model | Basic device |
| Height | 100 mm |
| Depth | 115 mm |
| With approval according to UL | Yes |
| Voltage type (supply voltage) | DC |
| With detachable clamps | Yes |
| With start input | No |
| With feedback circuit | Yes |
| Number of outputs, safety related, undelayed, with contact | 0 |
| Number of outputs, safety related, delayed, with contact | 0 |
| Number of outputs, safety related, undelayed, semiconductors | 2 |
| Number of outputs, safety related, delayed, semiconductors | 0 |
| Number of outputs, signalling function, undelayed, with contact | 0 |
| Number of outputs, signalling function, delayed, with contact | 0 |
| Number of outputs, signalling function, undelayed, semiconductors | 2 |
| Number of outputs, signalling function, delayed, semiconductors | 0 |
| Type of electric connection | Spring clamp connection |
| Suitable for rail mounting | Yes |
| With muting function | No |
| Type of safety according to IEC 61496-1 | 4 |
| With approval for BG BIA | No |
| Rated switch current | 1 A |
| Suitable for monitoring of magnetic switches | Yes |
| Suitable for monitoring of proximity switches | Yes |
| Suitable for monitoring of emergency-stop circuits | Yes |
| Suitable for monitoring of optoelectronic protection equipment | Yes |
| Suitable for monitoring of position switches | Yes |
| Suitable for monitoring of tactile sensors | Yes |
| Suitable for monitoring of valves | Yes |
| Performance level according to EN ISO 13849-1 | Level e |
| Stop category according to IEC 60204 | 1 |
| Supply voltage DC | 20.4 V |
| Evaluation inputs | 1-channel or 1- and 2-channel |
| SIL according to IEC 61508 | 3 |
| With approval for Tu00dcV | Yes |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- 2 x NO solid state auxs
- spring mounted terminals
