OMRON SKU: H3CR8016E On Order

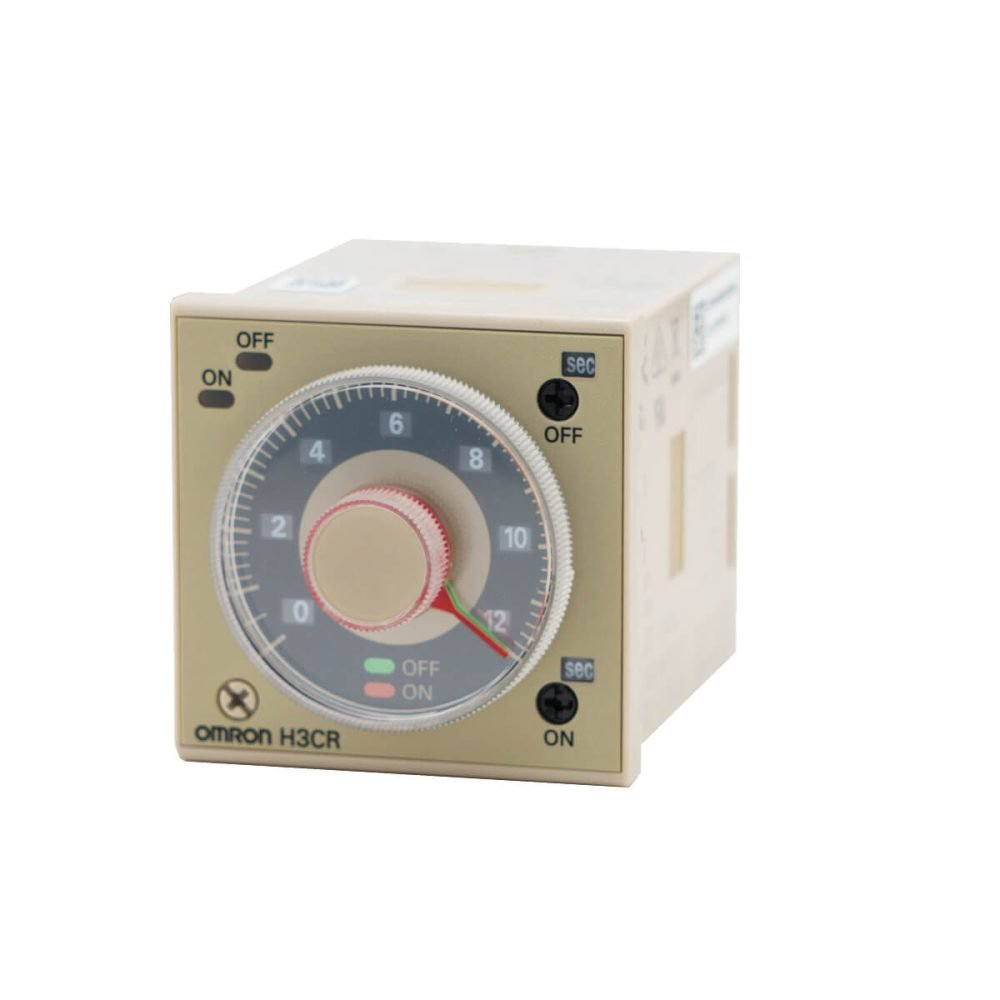

H3CR-FN AC24-48/DC12-48 OMI

Model No	H3CR-FN AC24-48/DC12-48 OMI
SKU	H3CR8016E
Category	Timers

Download H3CR-A/-F/-G/-H Solid-state Timer

Specifications

Nominal current	5 A
Width	48 mm
Height	48 mm
Depth	70 mm
Complete with socket	Yes
Remote operation possible	No
Suitable as remote control	No
Function flashing, starting with pause, fixed time	No
Function flashing, starting with pulse, fixed time	No
Clock function, starting with pause, variable	No
Clock function, starting with pulse, variable	No
With semiconductor output	No
Function delay-on energization	No
Function floating contact on energization	No
Function star-delta	No
Time range	0.05 s
Function delay on de-energization	No
Function floating contact on de-energization	No
Function pulse shaping	No
Type of electric connection	Plug-in connection
Rated control supply voltage AC 50 Hz	24 V
Rated control supply voltage AC 60 Hz	24 V
Rated control supply voltage DC	12 V
Material of contact surface	Silver
Voltage type (operating voltage)	AC/DC
Degree of protection (IP)	IP40
Number of outputs, undelayed, normally closed contact	0
Number of outputs, undelayed, normally open contact	0
Number of outputs, undelayed, change-over contact	0
Number of outputs, delayed, normally closed contact	0
Number of outputs, delayed, normally open contact	0
Number of outputs, delayed, change-over contact	2
Pluggable on auxiliary contact block	No
Outputs, reversible delayed/undelayed	No
Suitable for DIN rail (top hat rail) mounting	Yes
Material contact	Other
Operating voltage AC 50 Hz	0 V
Operating voltage AC 60 Hz	0 V
Operating voltage DC	0 V
Voltage type for actuating	AC/DC
Material of contact insert	Other
Relay technology category according to IEC 61810-7	RT I
Suitable for front mounting	Yes

Technical data supplied by OMRON and classified to ETIM 10.
