OMRON
SKU: H3RN1002M
On Order

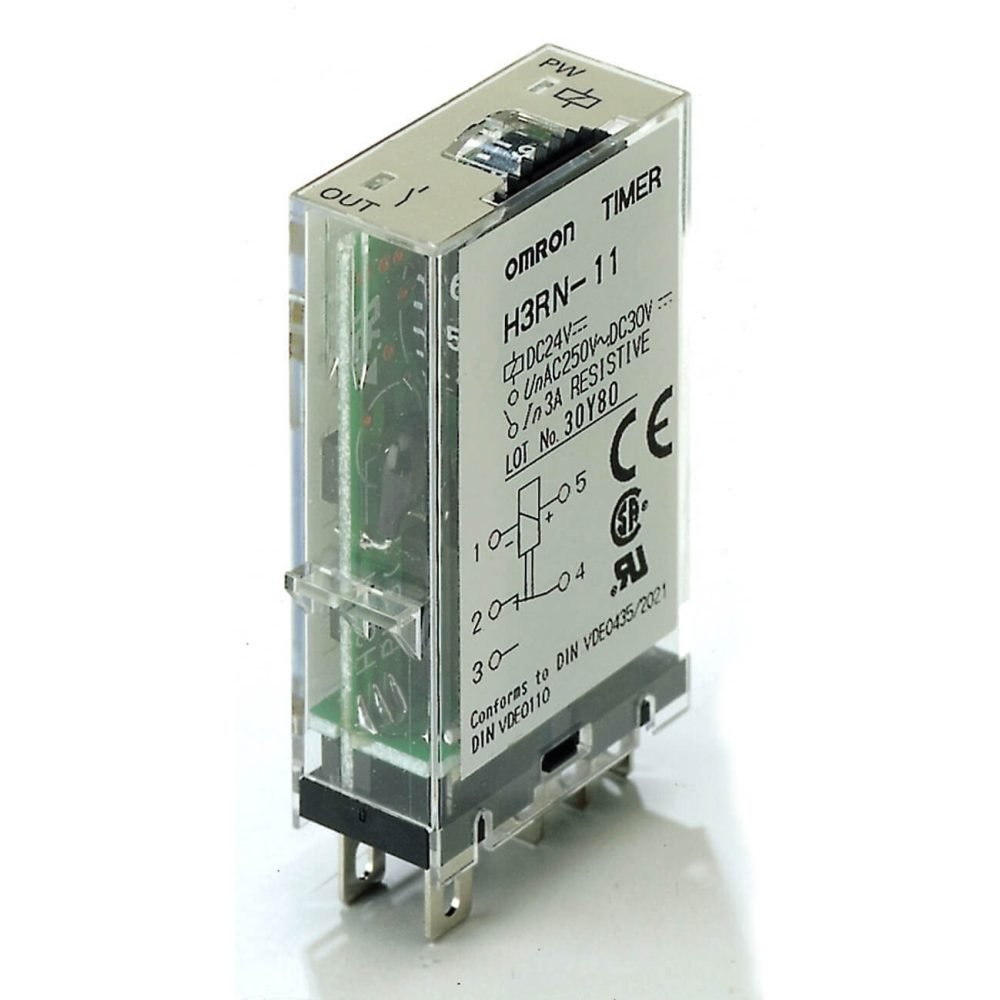

H3RN-1 DC24
| Model No | H3RN-1 DC24 |
|---|---|
| SKU | H3RN1002M |
| Category | Timers |
Specifications
| Nominal current | 3 A |
|---|---|
| Width | 12.8 mm |
| Height | 31.2 mm |
| Depth | 47.4 mm |
| Max. starting current | 5 A |
| Complete with socket | No |
| Remote operation possible | No |
| Suitable as remote control | No |
| Function flashing, starting with pause, fixed time | No |
| Function flashing, starting with pulse, fixed time | No |
| Clock function, starting with pause, variable | No |
| Clock function, starting with pulse, variable | Yes |
| With semiconductor output | No |
| Function delay-on energization | Yes |
| Function floating contact on energization | Yes |
| Function star-delta | No |
| Time range | 0.1 s |
| Function delay on de-energization | No |
| Function floating contact on de-energization | No |
| Function pulse shaping | No |
| Type of electric connection | Screw connection |
| Rated control supply voltage DC | 21.6 V |
| Material of contact surface | Silver |
| Voltage type (operating voltage) | AC/DC |
| Degree of protection (IP) | IP40 |
| Number of outputs, undelayed, normally closed contact | 0 |
| Number of outputs, undelayed, normally open contact | 0 |
| Number of outputs, undelayed, change-over contact | 0 |
| Number of outputs, delayed, normally closed contact | 0 |
| Number of outputs, delayed, normally open contact | 0 |
| Number of outputs, delayed, change-over contact | 1 |
| Pluggable on auxiliary contact block | No |
| Outputs, reversible delayed/undelayed | No |
| Suitable for DIN rail (top hat rail) mounting | Yes |
| Material contact | Other not-copper alloys |
| Operating voltage AC 50 Hz | 5 V |
| Operating voltage AC 60 Hz | 5 V |
| Operating voltage DC | 5 V |
| Voltage type for actuating | DC |
| Material of contact insert | Other |
| Relay technology category according to IEC 61810-7 | RT I |
| Suitable for front mounting | No |
Technical data supplied by OMRON and classified to ETIM 10.
