OMRON
SKU: M22NBCTWAWEP
On Order

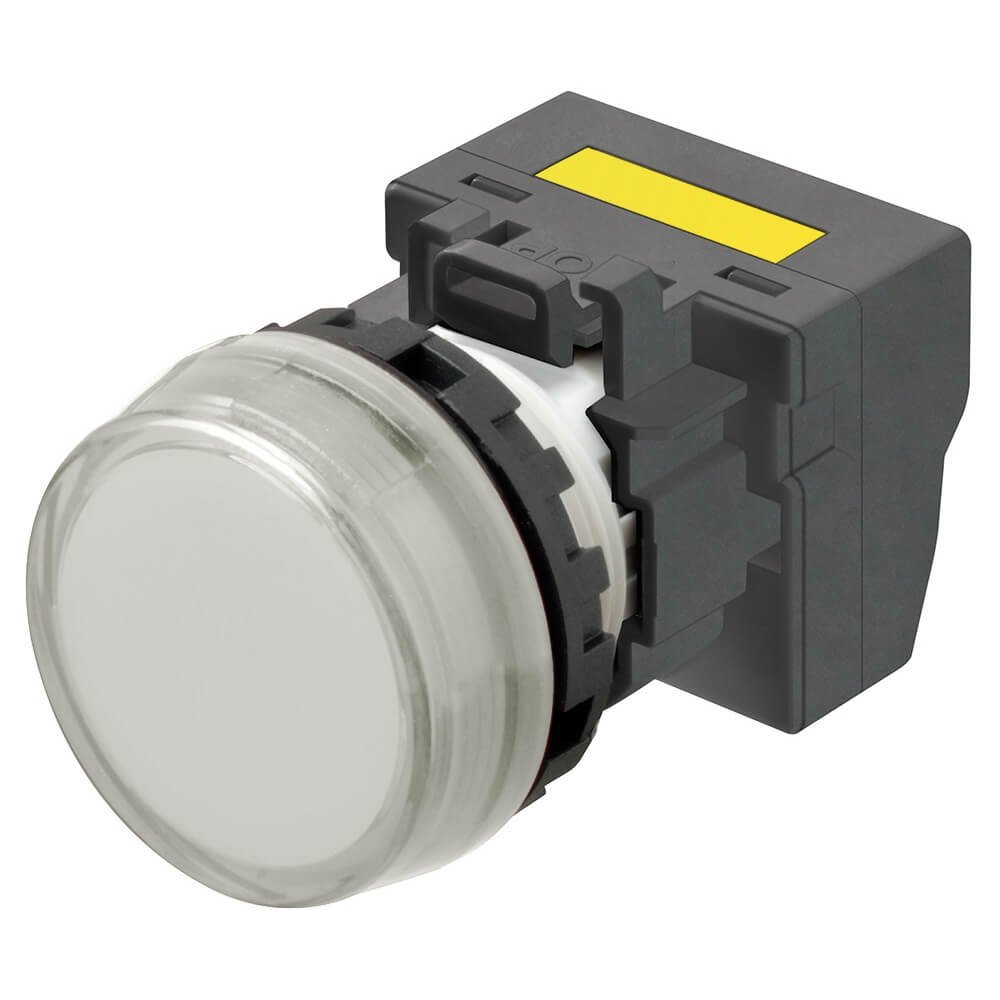

M22N-BC-TWA-WE-P – M22N Gösterge, Plastik yassı fırınlanmış, Beyaz, Beyaz, 220/230/240 V AC, push-in terminal
M22N-BC-TWA-WE-P
| Model No | M22N-BC-TWA-WE-P |
|---|---|
| SKU | M22NBCTWAWEP |
| HS Code | 8536.5015.00 |
| Category | Pushbutton Switches |
Description
M22N Gösterge, Plastik yassı fırınlanmış, Beyaz, Beyaz, 220/230/240 V AC, push-in terminal
Specifications
| Model No | M22N-BC-TWA-WE-P |
| SKU | M22NBCTWAWEP |
| HS CODE | 8536.5015.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | M22N Gösterge |
|---|---|
| Supply Voltage | 220/230/240 V AC |
| Hole diameter | 22.3 mm |
| Voltage type | AC |
| Colour lens | White |
| Number of indicator lights | 1 |
| Rated operating voltage Ue | 200 V |
| Colour front ring | Other |
| Type of electric connection | Spring clamp connection |
| Width opening | 22.3 mm |
| Height opening | 22.3 mm |
| Degree of protection (IP) | IP66 |
| With light source | Yes |
| Material front ring | Other |
| With front ring | No |
| Construction type lens | Round |
| Type of lamp socket | LED |
| Type of lens | Flat |
| Degree of protection (NEMA) | 4X |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- Plastik yassı fırınlanmış
- White
- White
- push-in terminal
