OMRON
SKU: NB7WTW00BV1
On Order

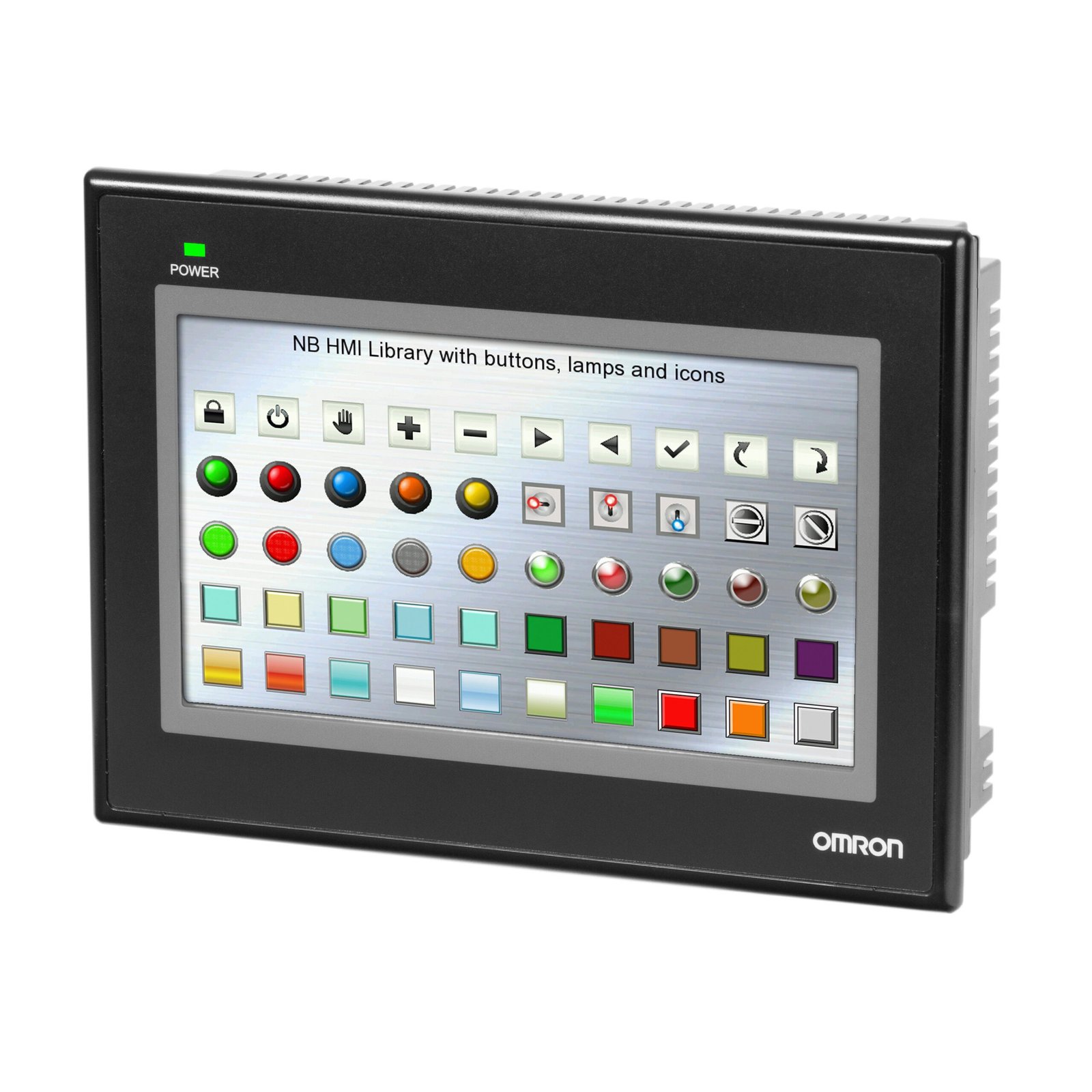

NB7W-TW00B-V1 – HMI dokunmatik ekran, 7 inç WVGA (800 x 480 piksel) TFT renk
NB7W-TW00B-V1
| Model No | NB7W-TW00B-V1 |
|---|---|
| SKU | NB7WTW00BV1 |
| HS Code | 8531.2040.90 |
| Category | Human Machine Interfaces |
Description
HMI dokunmatik ekran, 7 inç WVGA (800 x 480 piksel) TFT renk
Specifications
| Model No | NB7W-TW00B-V1 |
| SKU | NB7WTW00BV1 |
| HS CODE | 8531.2040.90 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | HMI dokunmatik ekran |
|---|---|
| Built-in depth | 46 mm |
| Suitable for safety functions | No |
| Screen diagonal | 7 inch |
| Operating temperature | 0 u00b0C |
| Voltage type (supply voltage) | DC |
| Supporting protocol for LON | No |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 2 |
| Number of HW-interfaces RS-422 | 1 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 2 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| Colour display | Yes |
| Number of colours of the display | 65536 |
| Number of pixels, horizontal | 800 |
| Number of pixels, vertical | 480 |
| Number of function buttons, programmable | 0 |
| With numeric keyboard | No |
| With alpha numeric keyboard | No |
| Usable project memory/user memory | 131072 kByte |
| With message indication | Yes |
| With message system (incl. buffer and confirmation) | Yes |
| Process value representation (output) possible | No |
| Process default value (input) possible | Yes |
| With recipes | Yes |
| Number of password levels | 16 |
| With printer output | Yes |
| Number of online languages | 8 |
| Additional software components, loadable | Yes |
| Degree of protection (IP), front side | IP65 |
| With SW interfaces | Yes |
| Width of the front | 202.0 mm |
| Height of the front | 148 mm |
| Suitable for rail mounting | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces wireless | 0 |
| Wall mounting/direct mounting | No |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| IO link master | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Supply voltage DC | 20.4 V |
| Type of display | TFT |
| Number of grey-scales/blue-scales of display | 64 |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Mobile communications standard 3G (UMTS) | No |
| Number of buttons with LED | 0 |
| Number of system buttons | 0 |
| Touch technology | Resistive touch |
| Supporting protocol for EtherCAT | No |
| Certified for UL hazardous location class I | No |
| Certified for UL hazardous location class II | No |
| Certified for UL hazardous location class III | No |
| Certified for UL hazardous location division 1 | No |
| Certified for UL hazardous location division 2 | No |
| Certified for UL hazardous location group A (acetylene) | No |
| Certified for UL hazardous location group B (hydrogen) | No |
| Certified for UL hazardous location group C (ethylene) | No |
| Certified for UL hazardous location group D (propane) | No |
| Certified for UL hazardous location group E (metal dusts) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) | No |
| Certified for UL hazardous location group G (non-conductive dusts) | No |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- 7 inch WVGA (800 x 480 piksel) TFT renk
