OMRON
SKU: NXPNC202
On Order
Machine Automation Controllers

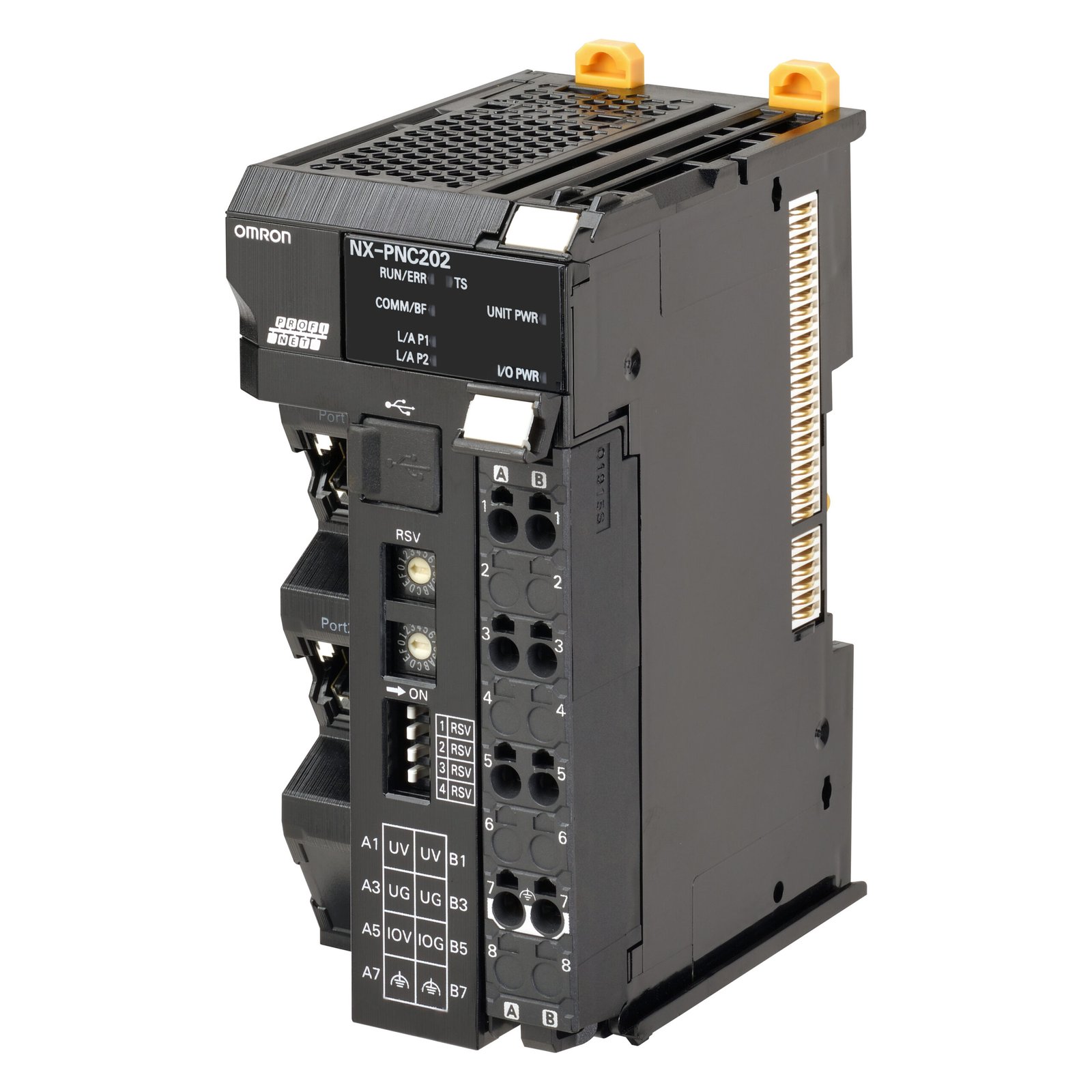

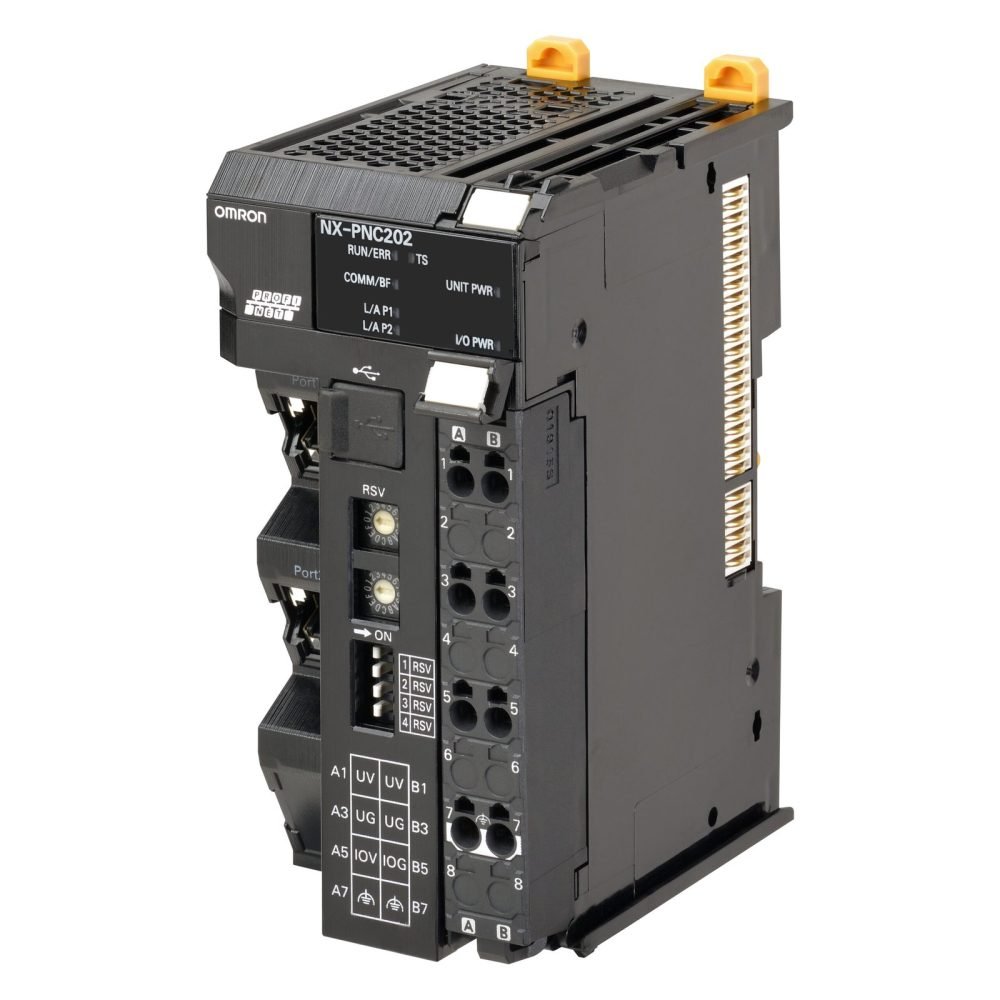

NX-PNC202 – NX-series PROFINET Coupler, 2 ports, 63 I/O units, max I/O current 10 A, screwless push-in connector, delivered with end cover
NX-PNC202
| Model No | NX-PNC202 |
|---|---|
| SKU | NXPNC202 |
| HS Code | 8517.6200.00 |
| Category | Machine Automation Controllers |
Description
NX-series PROFINET Coupler, 2 ports, 63 I/O units, max I/O current 10 A, screwless push-in connector, delivered with end cover
Specifications
| Model No | NX-PNC202 |
| SKU | NXPNC202 |
| HS CODE | 8517.6200.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | NX-series PROFINET Coupler |
|---|---|
| Width | 46 mm |
| Height | 100 mm |
| Depth | 71 mm |
| Suitable for safety functions | No |
| Supporting protocol for LON | No |
| Number of HW-interfaces industrial Ethernet | 2 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 1 |
| With optical interface | No |
| Type of voltage (input voltage) | DC |
| Supporting protocol for TCP/IP | Yes |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| Number of slots | 63 |
| With pluggable modules, digital I/O | No |
| With pluggable modules, analogue I/O | No |
| With pluggable modules, communication modules | No |
| With pluggable modules, function and technology modules | No |
| With pluggable modules, central modules | No |
| With pluggable modules, others | No |
| With potential separation | Yes |
| With integrated power supply | No |
| Type of electric connection | Spring clamp connection |
| Suitable for rail mounting | Yes |
| With bus coupler for modular station connection | Yes |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Fieldbus connection over separate bus coupler possible | Yes |
| System accessory | No |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Degree of protection (IP) | IP20 |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of interfaces PROFINET | 2 |
| Number of HW-interfaces wireless | 0 |
| Output voltage DC | 20.4 V |
| Front built-in possible | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| Input voltage DC | 20.4 V |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| IO link master | No |
| Max. output current AC 50 Hz | 0 A |
| Max. output current AC 60 Hz | 0 A |
| Max. output current DC | 10 A |
| Max. input current AC 50 Hz | 0 A |
| Max. input current AC 60 Hz | 0 A |
| Max. input current DC | 10 A |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | Yes |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Type of output voltage | DC |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Mobile communications standard 3G (UMTS) | No |
| Supporting protocol for EtherCAT | No |
| Certified for UL hazardous location class I | No |
| Certified for UL hazardous location class II | No |
| Certified for UL hazardous location class III | No |
| Certified for UL hazardous location division 1 | No |
| Certified for UL hazardous location division 2 | No |
| Certified for UL hazardous location group A (acetylene) | No |
| Certified for UL hazardous location group B (hydrogen) | No |
| Certified for UL hazardous location group C (ethylene) | No |
| Certified for UL hazardous location group D (propane) | No |
| Certified for UL hazardous location group E (metal dusts) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) | No |
| Certified for UL hazardous location group G (non-conductive dusts) | No |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- 2 ports
- 63 I/O units
- max I/O current 10 A
- screwless push-in connector
- delivered with end cover
