OMRON
SKU: NYB12013G
On Order

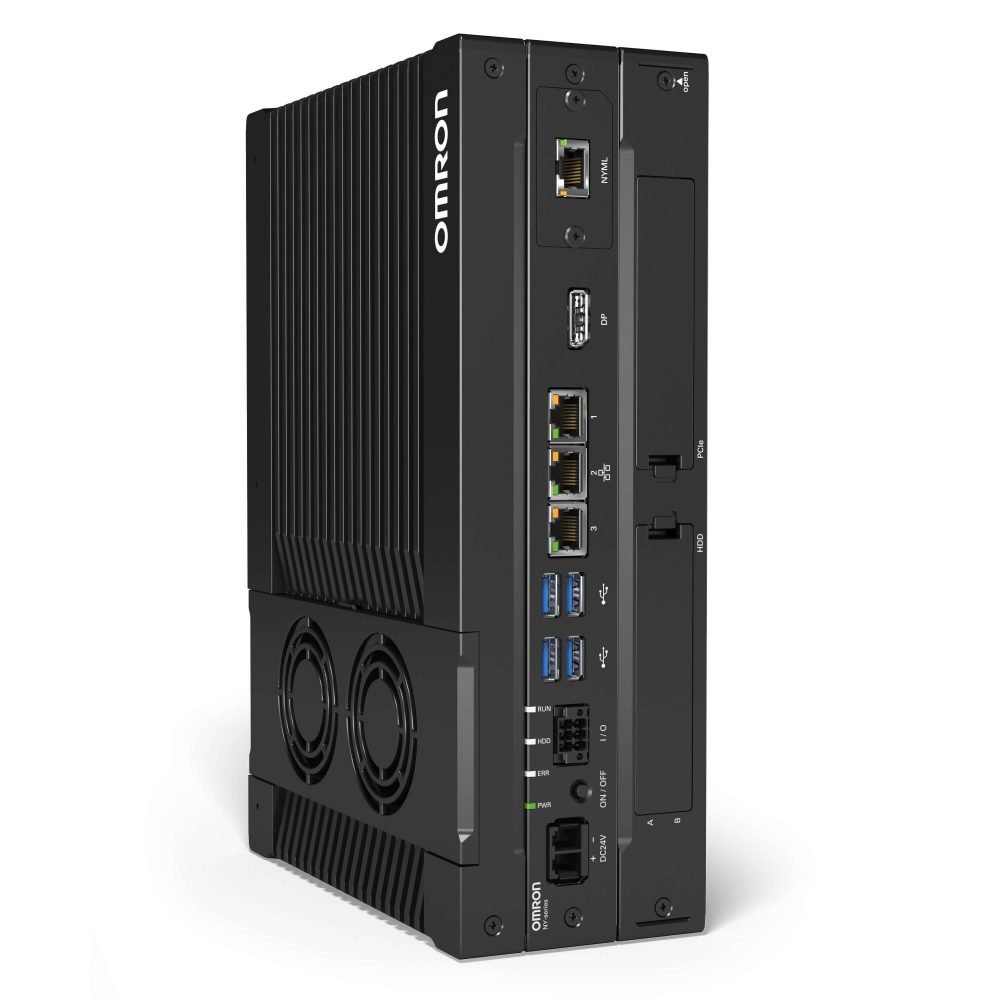

NYB37-415H6
| Model No | NYB37-415H6 |
|---|---|
| SKU | NYB12013G |
| Category | Industrial PC |
Specifications
| Width | 282 mm |
|---|---|
| Height | 89 mm |
| Depth | 195 mm |
| Suitable for safety functions | No |
| With hard disc | No |
| Operating temperature | 0 u00b0C |
| Voltage type (supply voltage) | DC |
| Supporting protocol for LON | No |
| Number of HW-interfaces industrial Ethernet | 3 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 4 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 3 |
| Suitable for operating system Windows 9x | No |
| Suitable for operating system Windows 2000 | No |
| Suitable for operating system Windows XP | No |
| Suitable for operating system Windows ME | No |
| Suitable for operating system Windows CE | No |
| Suitable for operating system Linux | No |
| Suitable for other operating system | Yes |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| Processor type | Intel Core i7 |
| Max. main memory | 16384 MB |
| With floppy disc drive | No |
| With other storage media | Yes |
| With graphic card | Yes |
| With sound card | No |
| Number of free AGP-slots | 0 |
| Number of free PCI-slots | 0 |
| Number of free ISA-slots | 0 |
| Number of free PCMCIA-slots | 0 |
| Number of other free slots | 1 |
| Suitable for rail mounting | No |
| Construction type housing | Box |
| Memory capacity hard disc | 0.512 TB |
| Degree of protection (IP) | IP20 |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces wireless | 0 |
| Front built-in possible | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | Yes |
| Suitable for operating system Windows 2003 Server | No |
| Suitable for operating system Windows Vista | No |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| IO link master | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | Yes |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Supply voltage DC | 20.4 V |
| Preinstalled operating system | Windows 10 |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Mobile communications standard 3G (UMTS) | No |
| Suitable for operating system Windows 7 | No |
| Suitable for operating system Windows 8 | No |
| Processor clock rate | 1.8 GHz |
| Number of storage media bays | 2 |
| Degree of protection (NEMA) | 1 |
| With optical drive | No |
| Number of free PCIe-slots | 1 |
| Supporting protocol for EtherCAT | No |
Technical data supplied by OMRON and classified to ETIM 10.
