OMRON
SKU: NYP11340F
On Order

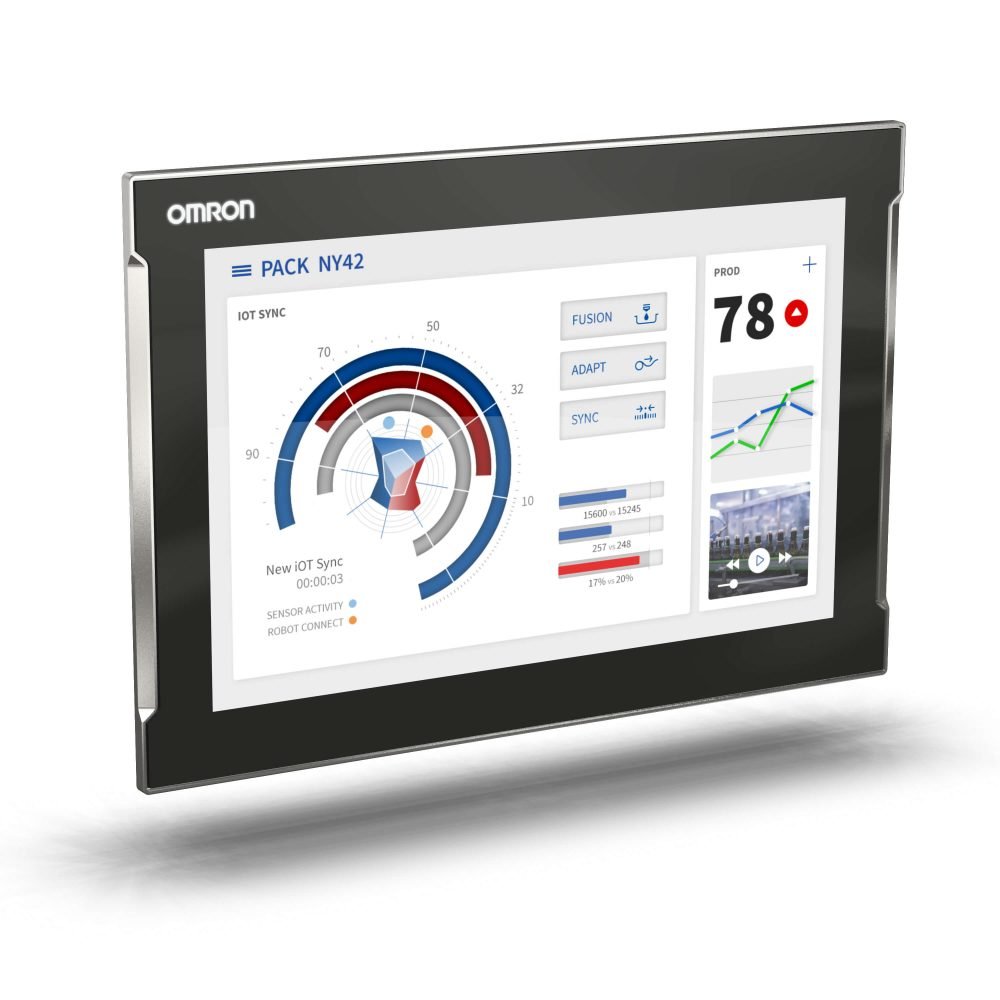

NYP65-40519-15WC1100
| Model No | NYP65-40519-15WC1100 |
|---|---|
| SKU | NYP11340F |
| Category | Industrial PC |
Specifications
| Built-in depth | 63 mm |
|---|---|
| Suitable for safety functions | No |
| With hard disc | No |
| Screen diagonal | 15.4 inch |
| Operating temperature | 0 u00b0C |
| Voltage type (supply voltage) | DC |
| Supporting protocol for LON | No |
| Number of HW-interfaces industrial Ethernet | 3 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 4 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 3 |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| Number of pixels, horizontal | 1280 |
| Number of pixels, vertical | 800 |
| With touch screen | Yes |
| Degree of protection (IP), front side | IP65 |
| Max. main memory | 16384 MB |
| With floppy disc drive | No |
| With other storage media | Yes |
| Customer individual configuration | No |
| Number of free AGP-slots | 0 |
| Number of free PCI-slots | 0 |
| Number of free ISA-slots | 0 |
| Number of free PCMCIA-slots | 0 |
| Number of HW-interfaces SCSI | 0 |
| Number of HW-interfaces PS2 | 0 |
| Integrated keyboard | Yes |
| Number of function buttons | 0 |
| Mouse-cursor control integrated | Yes |
| Width of the front | 401 mm |
| Height of the front | 277 mm |
| Suitable for rail mounting | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces wireless | 0 |
| Front built-in possible | Yes |
| Mounting type, gallows mounting | No |
| Rack-assembly possible | No |
| Mounting type, table foot | No |
| Wall mounting/direct mounting | No |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| IO link master | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | Yes |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Supply voltage DC | 20.4 V |
| Preinstalled operating system | Windows 10 |
| Type of display | TFT |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Mobile communications standard 3G (UMTS) | No |
| Number of buttons with LED | 0 |
| Number of system buttons | 0 |
| Degree of protection (NEMA) | Other |
| With optical drive | No |
| Supporting protocol for EtherCAT | No |
| Certified for UL hazardous location class I | No |
| Certified for UL hazardous location class II | No |
| Certified for UL hazardous location class III | No |
| Certified for UL hazardous location division 1 | No |
| Certified for UL hazardous location division 2 | No |
| Certified for UL hazardous location group A (acetylene) | No |
| Certified for UL hazardous location group B (hydrogen) | No |
| Certified for UL hazardous location group C (ethylene) | No |
| Certified for UL hazardous location group D (propane) | No |
| Certified for UL hazardous location group E (metal dusts) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) | No |
| Certified for UL hazardous location group G (non-conductive dusts) | No |
Technical data supplied by OMRON and classified to ETIM 10.
