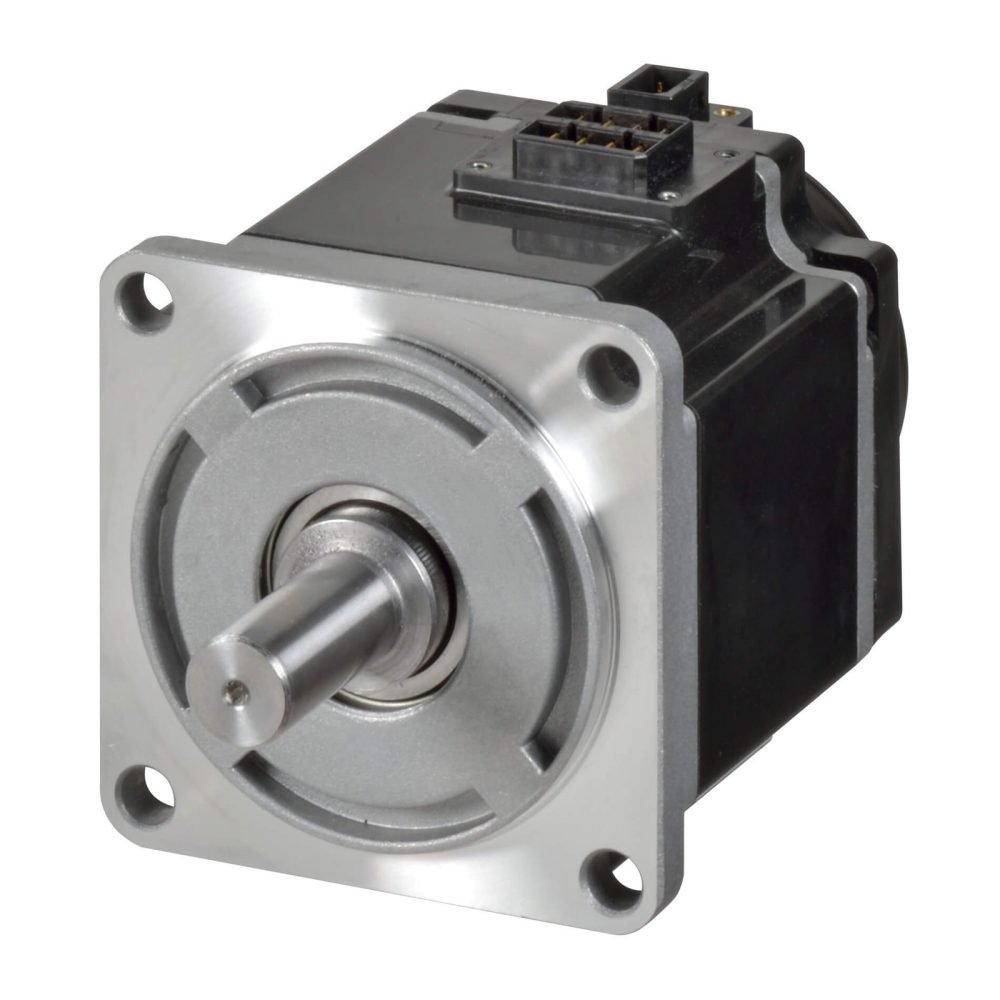

R88M-1M40030T-S2 – 1S AC servo motor, 400 W, 230 VAC, 3000 rpm, 1.27 Nm, absolute enkoder
R88M-1M40030T-S2
| Model No | R88M-1M40030T-S2 |
|---|---|
| SKU | R88M1M40030TS2 |
| HS Code | 8501.5100.90 |
| Category | Servo Systems |
Description
1S AC servo motor, 400 W, 230 VAC, 3000 rpm, 1.27 Nm, absolute enkoder
Specifications
| Model No | R88M-1M40030T-S2 |
| SKU | R88M1M40030TS2 |
| HS CODE | 8501.5100.90 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Power | 400 W |
|---|---|
| Supply Voltage | 230 VAC |
| Model | Other |
| Voltage type | AC |
| Rated current | 2.5 A |
| Rated voltage | 230 V |
| Number of phases | 3 |
| Construction type | IM 3001 (B5) |
| Rated frequency | 50 Hz |
| Operating temperature | 0 u00b0C |
| Rated rotational speed at rated frequency | 3000 |
| Rated performance at rated frequency | 0.4 kW |
| Degree of protection (IP) | IP67 |
| Duty cycle | S1 |
| Frame size according to IEC | 60 mm |
| With positive temperature coefficient resistor (PTC) | No |
| With resistance temperature detector (RTD) | No |
| Intrinsic safety (IS) | None |
| Overload capability | No |
| Cooling method | Air |
| Shaft end type | Parallel key |
| Vacuum pressure impregnation (VPI) | None |
| Degree of protection (NEMA) | Other |
| Motor efficiency class | Other |
| Suitable for frequency control | No |
| Bearing | Other |
| Insulation class according to IEC | F |
| With anti-condensation | No |
| Nominal torque | 1.27 Nm |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- 1S AC servo motor
- 3000 rpm
- 1.27 Nm
- absolute enkoder
