OMRON
SKU: S8FSC01524J
On Order

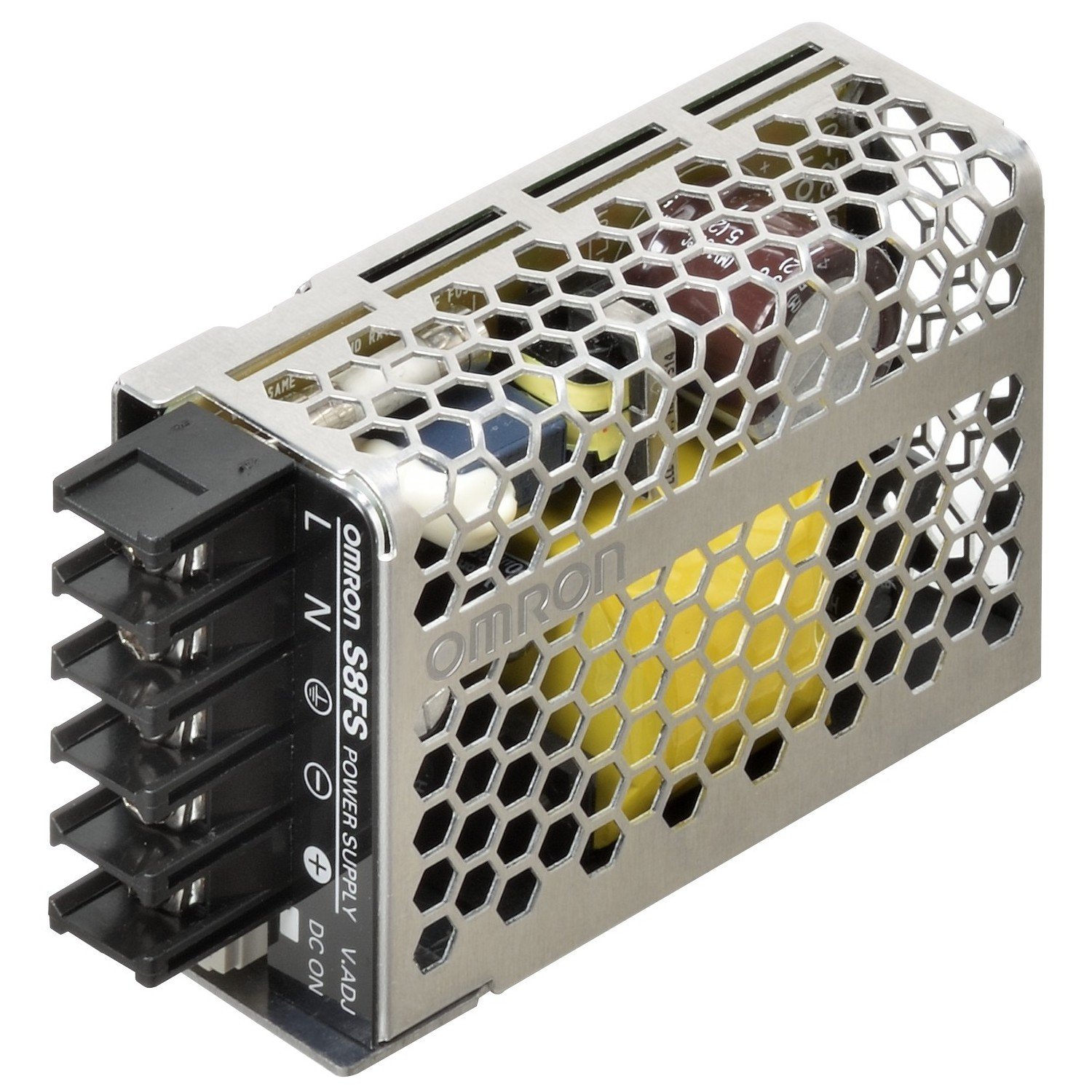

S8FS-C01524J – Güç kaynağı, LITE, 15 W, 100-240 VAC giriş, 24 VDC, 0.7 A çıkış, DIN ray montaj seçeneği
S8FS-C01524J
| Model No | S8FS-C01524J |
|---|---|
| SKU | S8FSC01524J |
| HS Code | 8504.4083.90 |
| Category | Power Supplies |
Description
Güç kaynağı, LITE, 15 W, 100-240 VAC giriş, 24 VDC, 0.7 A çıkış, DIN ray montaj seçeneği
Specifications
| Model No | S8FS-C01524J |
| SKU | S8FSC01524J |
| HS CODE | 8504.4083.90 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Power Supply |
|---|---|
| Power | 15 W |
| Supply Voltage | 100-240 VAC input |
| Supply Voltage 2 | 24 VDC |
| Output | 0.7 A output |
| Width | 78 mm |
| Height | 51 mm |
| Depth | 28 mm |
| Built-in height | 51 mm |
| Power consumption | 43.7 VA |
| Suitable for wall mounting | Yes |
| Built-in width | 34 mm |
| Suitable for distribution board | No |
| Suitable for safety functions | No |
| Width in number of modular spacings | 20 |
| Voltage type (supply voltage) | AC/DC |
| Power output | 15 W |
| Output voltage stabilized | No |
| Type of electric connection | Screw connection |
| Suitable for rail mounting | No |
| Stabilized | No |
| Degree of protection (IP) | IP00 |
| Direct mounting possible | Yes |
| 1st secondary output voltage | 21.6 V |
| Secondary voltage adjustable | Yes |
| Rated supply voltage AC 50 Hz | 100 V |
| Rated supply voltage AC 60 Hz | 100 V |
| Rated supply voltage DC | 120 V |
| Short-circuit-proof | Yes |
| Performance level according to EN ISO 13849-1 | None |
| Max. output current 1 | 0.7 A |
| Nominal value output voltage 1 | 24 V |
| Nominal value output current 1 | 0.7 A |
| SIL according to IEC 61508 | None |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- LITE
- DIN ray mounting option
