OMRON
SKU: S8VKC12024
On Order

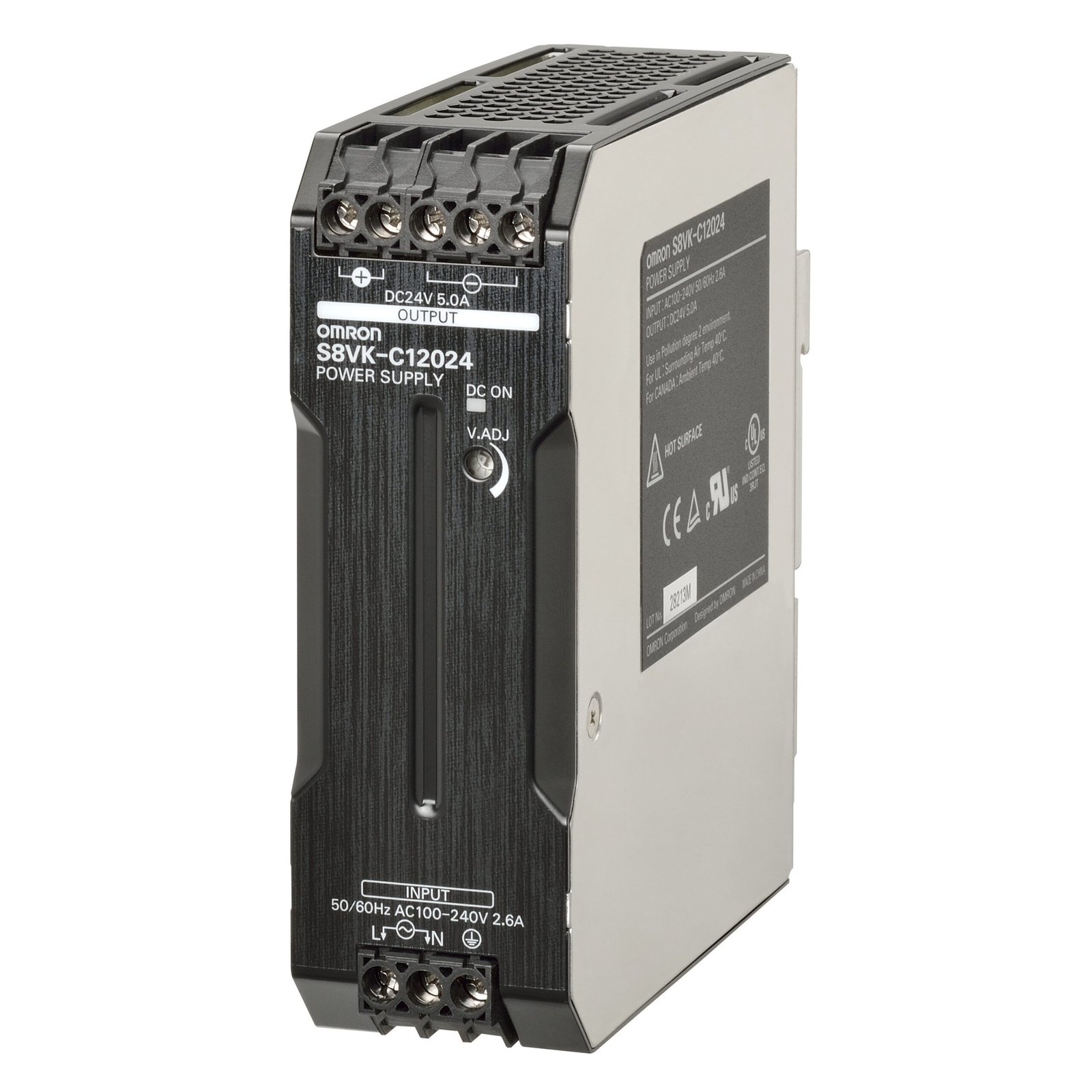

S8VK-C12024 – Kitap tipi güç kaynağı, LITE, 120 W, 24VDC, 5 A, DIN ray montaj
S8VK-C12024
| Model No | S8VK-C12024 |
|---|---|
| SKU | S8VKC12024 |
| HS Code | 8504.4083.90 |
| Category | Power Supplies |
Description
Kitap tipi güç kaynağı, LITE, 120 W, 24VDC, 5 A, DIN ray montaj
Specifications
| Model No | S8VK-C12024 |
| SKU | S8VKC12024 |
| HS CODE | 8504.4083.90 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Kitap tipi Power Supply |
|---|---|
| Power | 120 W |
| Supply Voltage | 24VDC |
| Current | 5 A |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 113 mm |
| Built-in height | 135 mm |
| Power consumption | 322 VA |
| Suitable for wall mounting | No |
| Built-in width | 40.000 mm |
| Suitable for distribution board | No |
| Suitable for safety functions | No |
| Width in number of modular spacings | 1 |
| Voltage type (supply voltage) | AC/DC |
| Power output | 120 W |
| Output voltage stabilized | No |
| Type of electric connection | Screw connection |
| Suitable for rail mounting | Yes |
| Stabilized | No |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | No |
| 1st secondary output voltage | 21.6 V |
| Secondary voltage adjustable | No |
| Rated supply voltage AC 50 Hz | 100 V |
| Rated supply voltage AC 60 Hz | 100 V |
| Rated supply voltage DC | 90 V |
| Short-circuit-proof | No |
| Performance level according to EN ISO 13849-1 | None |
| Max. output current 1 | 5 A |
| Nominal value output voltage 1 | 24 V |
| Nominal value output current 1 | 5 A |
| SIL according to IEC 61508 | None |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- LITE
- DIN ray mounting
