OMRON
SKU: TLW 1003R
On Order

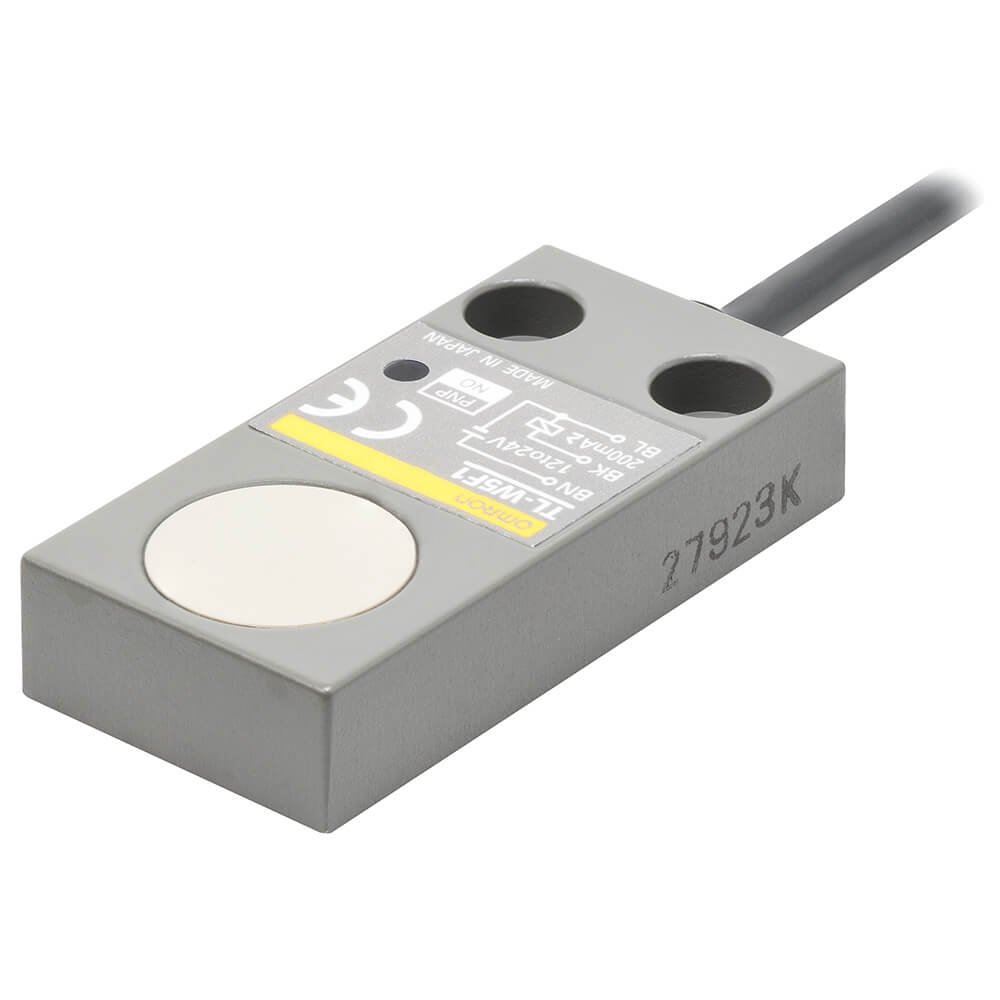

TL-W5F1 2M
| Model No | TL-W5F1 2M |
|---|---|
| SKU | TLW 1003R |
| Category | Inductive Sensors |
Specifications
| Voltage type | DC |
|---|---|
| Cascadable | Yes |
| Housing material | Metal |
| Suitable for safety functions | No |
| Coating housing | Other |
| Switching frequency | 300 Hz |
| Switching distance | 5 mm |
| Number of semiconductor outputs with signalling function | 1 |
| Number of contact energized outputs with signalling function | 0 |
| Number of protected semiconductor outputs | 0 |
| Number of protected contact energized outputs | 0 |
| Type of interface for safety communication | None |
| Type of electric connection | Cable |
| Type of switching output | PNP |
| Type of switch function | Normally open contact (NO) |
| Rated control supply voltage DC | 12 V |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Mechanical mounting condition for sensor | Concise |
| With monitoring function downstream switching devices | No |
| Supply voltage | 10 V |
| Type of actuation | Metallic Target |
| Type of interface | None |
| Width sensor | 25 mm |
| Compression-resistant | No |
| Height of sensor | 10 mm |
| Length of sensor | 52 mm |
| Performance level according to EN ISO 13849-1 | None |
| SIL according to IEC 61508 | None |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Get a price Request a quote for TL-W5F1 2M Name, company, email, phone and your quantity — our team replies with cost, lead time and availability. Open form
Pricing is issued per enquiry. Send us the details and our technical team will respond with cost, lead time and availability.
