OMRON
SKU: WLCA12YN
On Order
Mechanical Sensors and Limit Switches

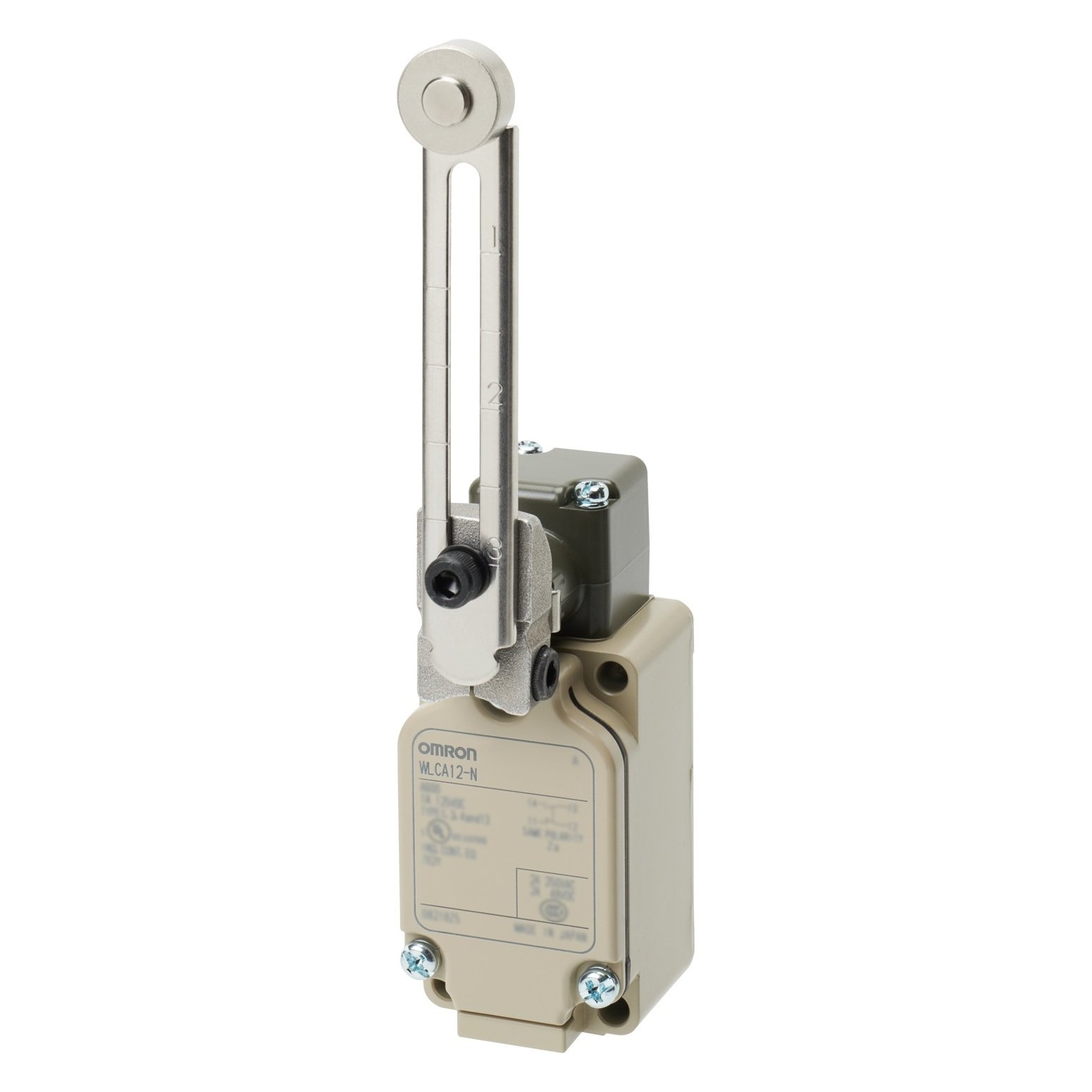

WLCA12-Y-N – Limit switch, adjustable roller lever: R25 to 89 mm, pretravel 15±5°, DPDB, M20 with ground terminal
WLCA12-Y-N
| Model No | WLCA12-Y-N |
|---|---|
| SKU | WLCA12YN |
| HS Code | 8536.5015.00 |
| Category | Mechanical Sensors and Limit Switches |
Description
Limit switch, adjustable roller lever: R25 to 89 mm, pretravel 15±5°, DPDB, M20 with ground terminal
Specifications
| Model No | WLCA12-Y-N |
| SKU | WLCA12YN |
| HS CODE | 8536.5015.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Limit switch |
|---|---|
| Switching function | Quick-break switch |
| Rated operation current Ie at AC-15, 230 V | 10 A |
| Rated operation current Ie at DC-13, 230 V | 0.4 A |
| Housing material | Metal |
| Suitable for safety functions | No |
| With status indication | No |
| Type of interface for safety communication | None |
| Type of electric connection | Cable entry metrical |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP67 |
| Forced opening | No |
| Number of safety auxiliary contacts | 0 |
| Type of control element | Adjustable roller lever |
| Type of interface | None |
| Output electronic | No |
| Rated operation current Ie at AC-15, 125 V | 10 A |
| Rated operation current Ie at DC-13, 125 V | 0.8 A |
| Width sensor | 40 mm |
| Height of sensor | 94.1 mm |
| Length of sensor | 67 mm |
| Switching function latching | No |
| Ambient temperature during operating | -10 u00b0C |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
| Alignment of the control element | Roller cam straight |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- adjustable roller lever: R25 to 89 mm
- pretravel 15±5°
- DPDB
- M20 with ground terminal
