OMRON SKU: XS2CD423 On Order

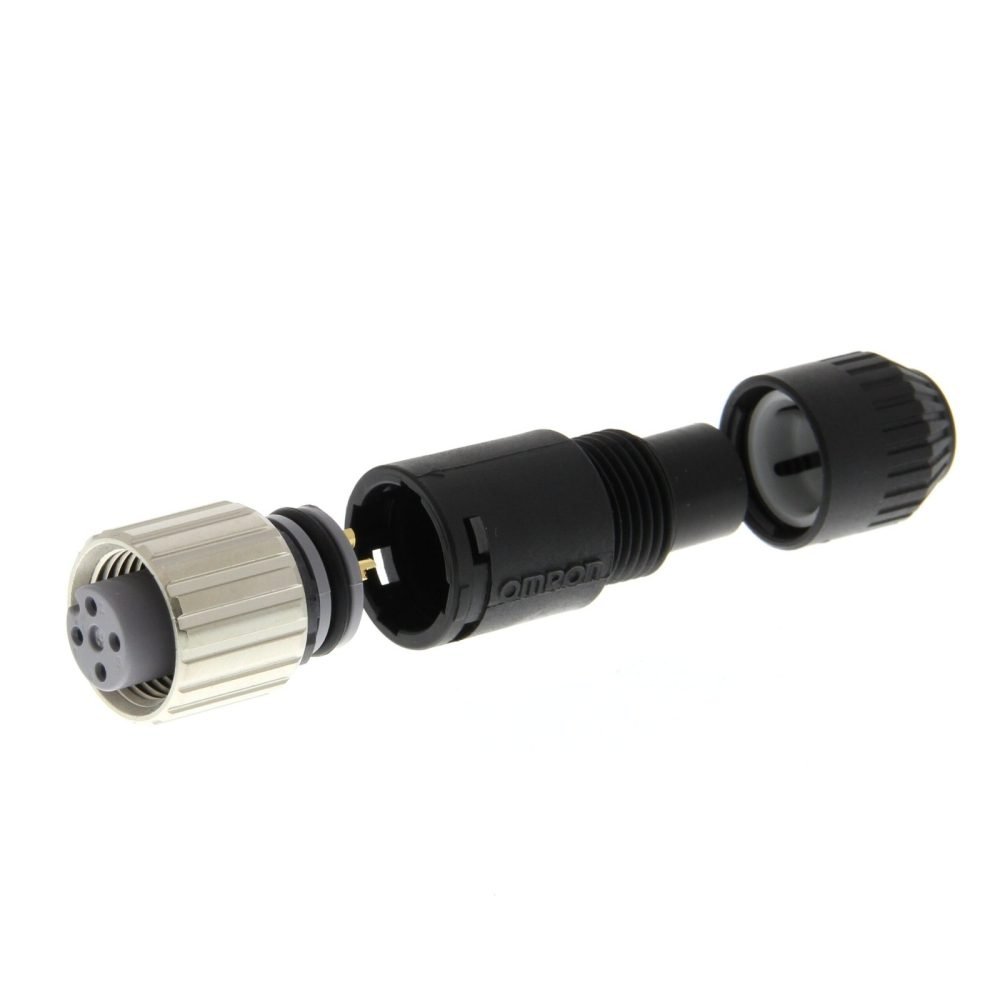

XS2C-D423 – Field assembly connector, M12 straight socket (female), 4-poles, A coded, solder connection, for cable diameters 4-5 mm

XS2C-D423

Model No	XS2C-D423
SKU	XS2CD423
HS Code	8544.4290.90
Category	Connectors and Cordsets

Download Datasheet (EN)

Description

Field assembly connector, M12 straight socket (female), 4-poles, A coded, solder connection, for cable diameters 4-5 mm

Specifications

Model No	XS2C-D423
SKU	XS2CD423
HS CODE	8544.4290.90
DATA SHEET	Datasheet (EN)

Specifications

Product Type	Field assembly connector
Type of locking	Gland nut
Rated voltage	250 V
Screened	No
Contact type	Bus
Housing material	Plastic
Coating housing	None
With status indication	No
Ambient temperature	-25 u00b0C
Thread size (metric)	12
Type of electric connection	Soldering connection
Material of contact surface	Gold
Overvoltage category	I
Pollution degree	2
Type of housing	Straight
Connectable conductor cross section solid-core	0 mmu00b2
Connectable conductor cross section fine-strand without cable end sleeve	0 mmu00b2
Connectable conductor cross section multi-wired	0 mmu00b2
Degree of protection (IP), mounted	IP67
With protective conductor	No
Diameter connector	14.9 mm
Rated current In	4 A
For cable outer diameter	4 mm
Min. number of insertion cycles	200
Number of power contacts	4
Number of control contacts	4
Number of data contacts	4
Material thread ring	Other

Technical data supplied by OMRON and classified to ETIM 10.

Features

M12 straight socket (female)
4-poles
A coded
solder connection
for cable diameters 4-5 mm
