OMRON
SKU: XS2F5453F
On Order

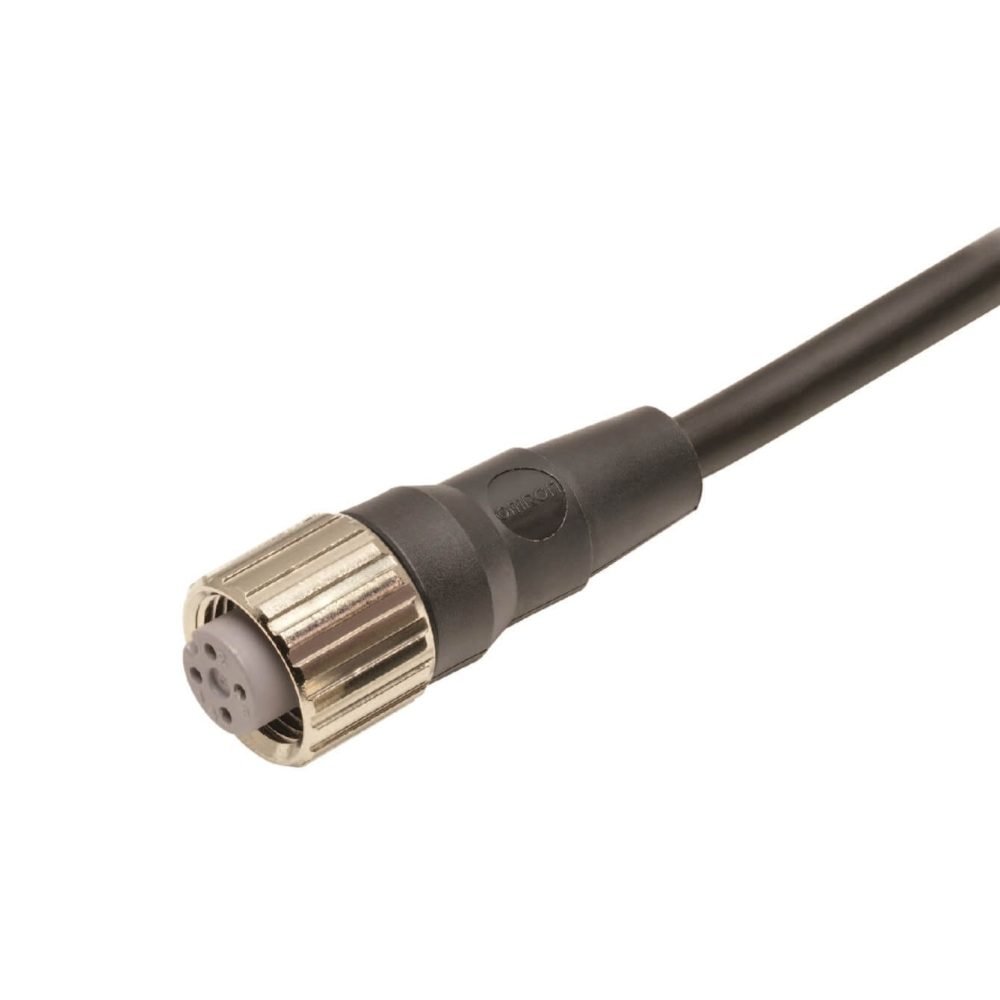

XS2F-M12PUR3S2M CHN
| Model No | XS2F-M12PUR3S2M CHN |
|---|---|
| SKU | XS2F5453F |
| Category | Connectors and Cordsets |
Specifications
| Halogen free | Yes |
|---|---|
| Cable type | Multi-core |
| Rated voltage | 152 V |
| Cable length | 2 m |
| Screened | No |
| Number of poles | 3 |
| Continuity resistance | 40 mOhm |
| Vulcanized | No |
| Material of cable sheath | Polyurethane (PUR) |
| Degree of protection (IP) | IP67 |
| Type of electrical connection, box-sided | Free conductor end |
| Type of electrical connection, field-sided | M12 |
| Positioning cable feed, box-sided | Straight |
| Positioning cable feed, field-sided | Straight |
| With LED indication | No |
| Type of plug-in contact, field sided | Female (bus) |
| Colour cable sheath | Black |
| Rated current In | 4 A |
Technical data supplied by OMRON and classified to ETIM 10.
