OMRON
SKU: XS2WT421DMCSS
On Order
Industrial Ethernet Cables and Connectors

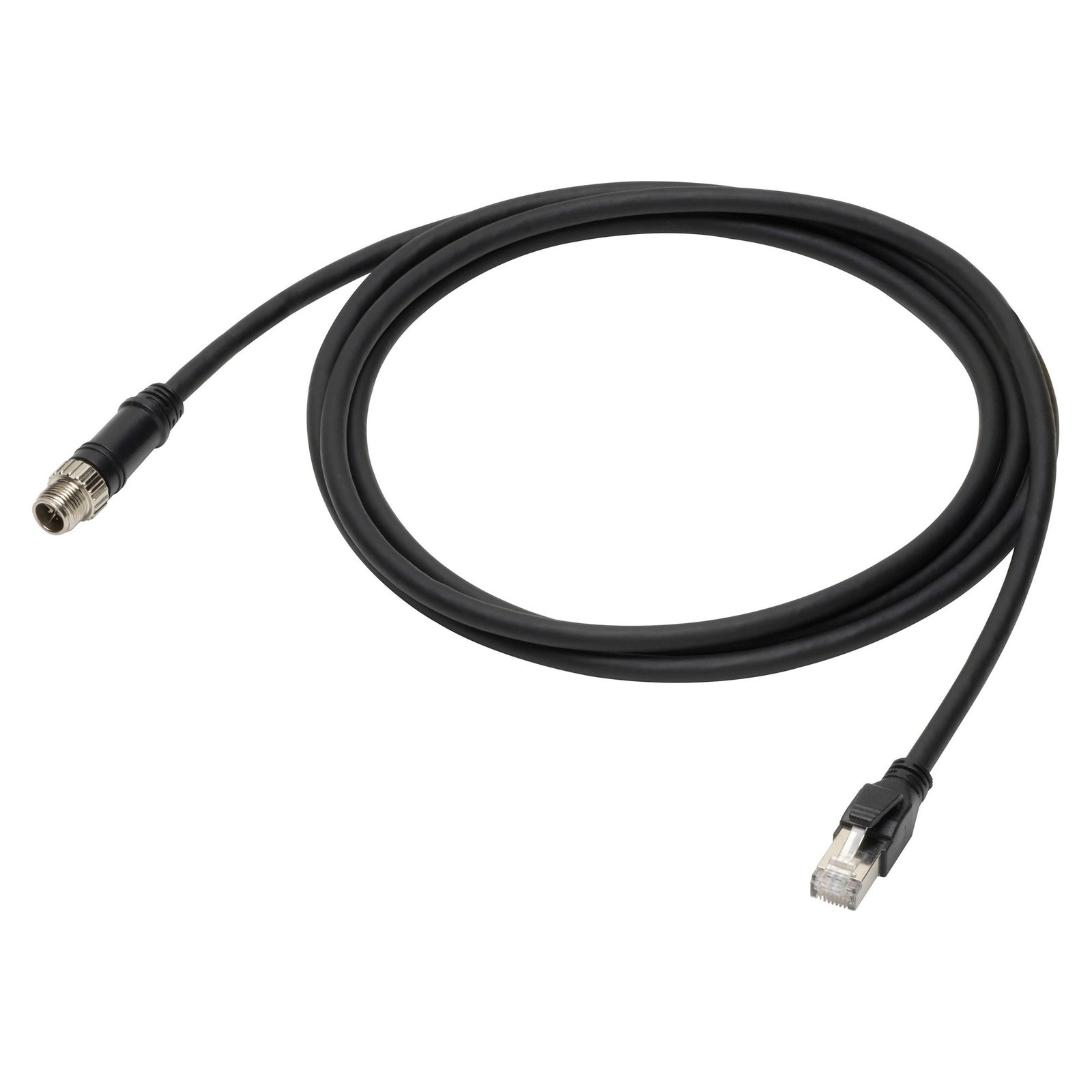

XS2W-T421-DMC-SS – Cable with connectors on both cable ends, M12 straight plug (male), RJ45 plug, 4-poles, D coded, Ethernet Cat5e Standard cable, IP67, 2 m
XS2W-T421-DMC-SS
| Model No | XS2W-T421-DMC-SS |
|---|---|
| SKU | XS2WT421DMCSS |
| HS Code | 8544.4210.00 |
| Category | Industrial Ethernet Cables and Connectors |
Description
Cable with connectors on both cable ends, M12 straight plug (male), RJ45 plug, 4-poles, D coded, Ethernet Cat5e Standard cable, IP67, 2 m
Specifications
| Model No | XS2W-T421-DMC-SS |
| SKU | XS2WT421DMCSS |
| HS CODE | 8544.4210.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Cable with connectors on both cable ends |
|---|---|
| Connector | RJ45 plug |
| Protection Rating | IP67 |
| Cable type | SF/UTP |
| Flame retardant | No |
| Pin assignment | 1:1 |
| Length | 2 m |
| Colour outer sheath | Black |
| Category | 5E |
| Anti-kink sleeve | Moulded-on |
| Type of connector connection 1 | M12 |
| Type of connector connection 2 | RJ45 8(4) |
| Cable construction | 1x4 |
| Halogen free according to EN IEC 60754-2 | No |
| Colour anti-kink sleeve | Black |
| Locking lever | Yes |
| Degree of protection (IP) | IP67 |
| Suitable for cable guide chain | No |
| Case connector connection 1 | Other |
| Case connector connection 2 | Other |
| Material connector housing, connection 1 | Metal |
| Material connector housing, connection 2 | Metal |
| Oil resistant according to EN IEC 60811-404 | No |
| Halogen free according to EN IEC 60754-1 | No |
| Halogen free according to EN IEC 60754-3 | No |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- M12 straight plug (male)
- 4-poles
- D coded
- Ethernet Cat5e Standard cable
- 2 m
