OMRON
SKU: XW5TP15112
On Order

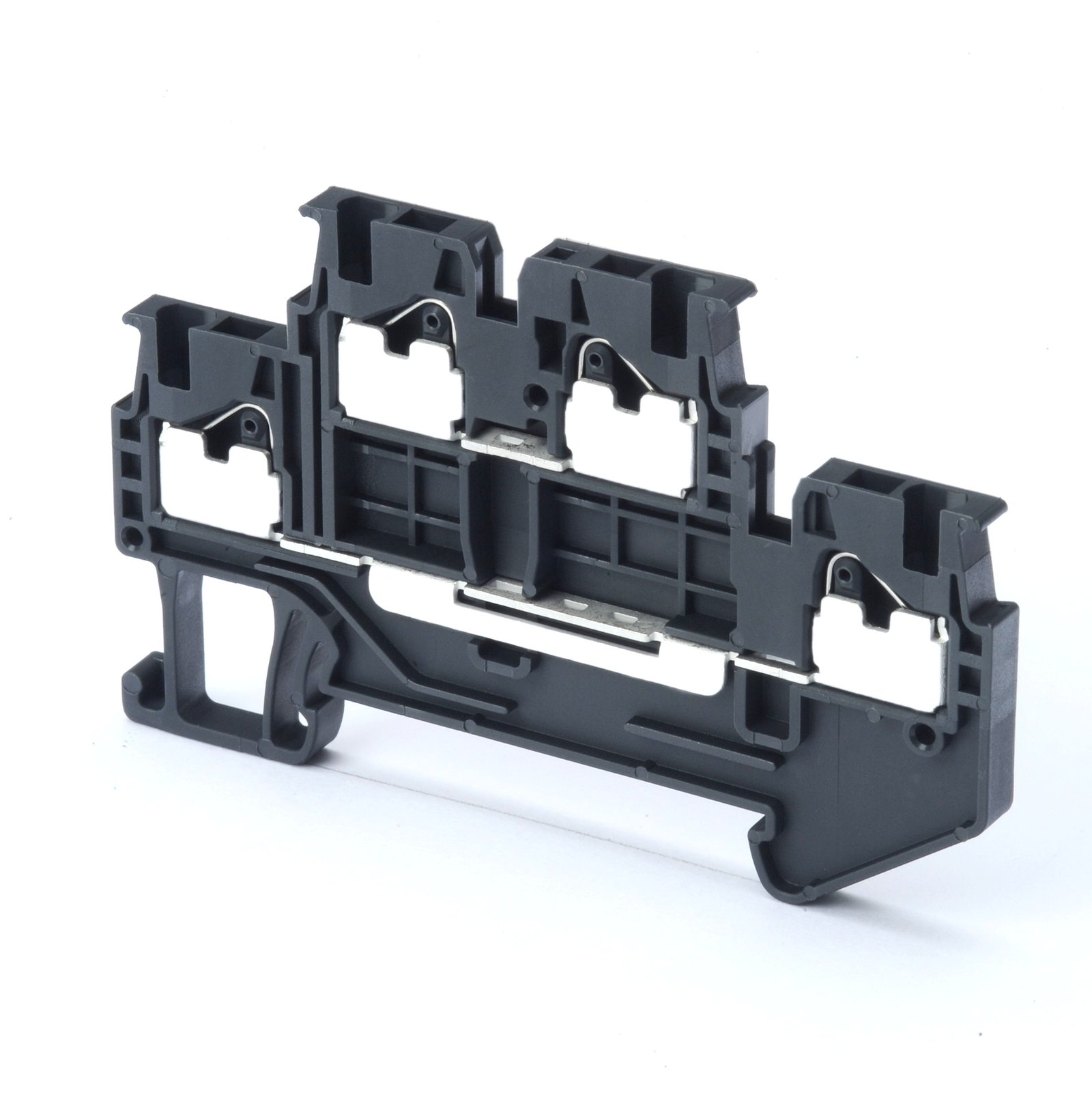

XW5T-P1.5-1.1-2 – Geçiş klemensi, 1.5 mm², koyu gri, Push-in Plus, 2 katlı
XW5T-P1.5-1.1-2
| Model No | XW5T-P1.5-1.1-2 |
|---|---|
| SKU | XW5TP15112 |
| HS Code | 8536.9010.00 |
| Category | Connectors and Cordsets |
Description
Geçiş klemensi, 1.5 mm², koyu gri, Push-in Plus, 2 katlı
Specifications
| Model No | XW5T-P1.5-1.1-2 |
| SKU | XW5TP15112 |
| HS CODE | 8536.9010.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Feed-through terminal |
|---|---|
| Mounting method | DIN rail (top hat rail)/G-rail TH35/G32 |
| Colour | Grey |
| Rated voltage | 500 V |
| Operating temperature | -40 u00b0C |
| Closing plate required | Yes |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Other |
| Number of levels | 2 |
| Number of clamp positions per level | 1 |
| Internally connected stages | No |
| Connectable conductor cross section solid-core | 0.14 mmu00b2 |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.14 mmu00b2 |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.08 mmu00b2 |
| Connectable conductor cross section multi-wired | 1 mmu00b2 |
| Material insulation body | Other |
| Rated current In | 13.5 A |
| Explosion-tested version 'Ex e' | No |
| Inflammability class of insulation material according to UL 94 | V0 |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- 1.5 mm²
- koyu gri
- Push-in Plus
- 2 katlı
