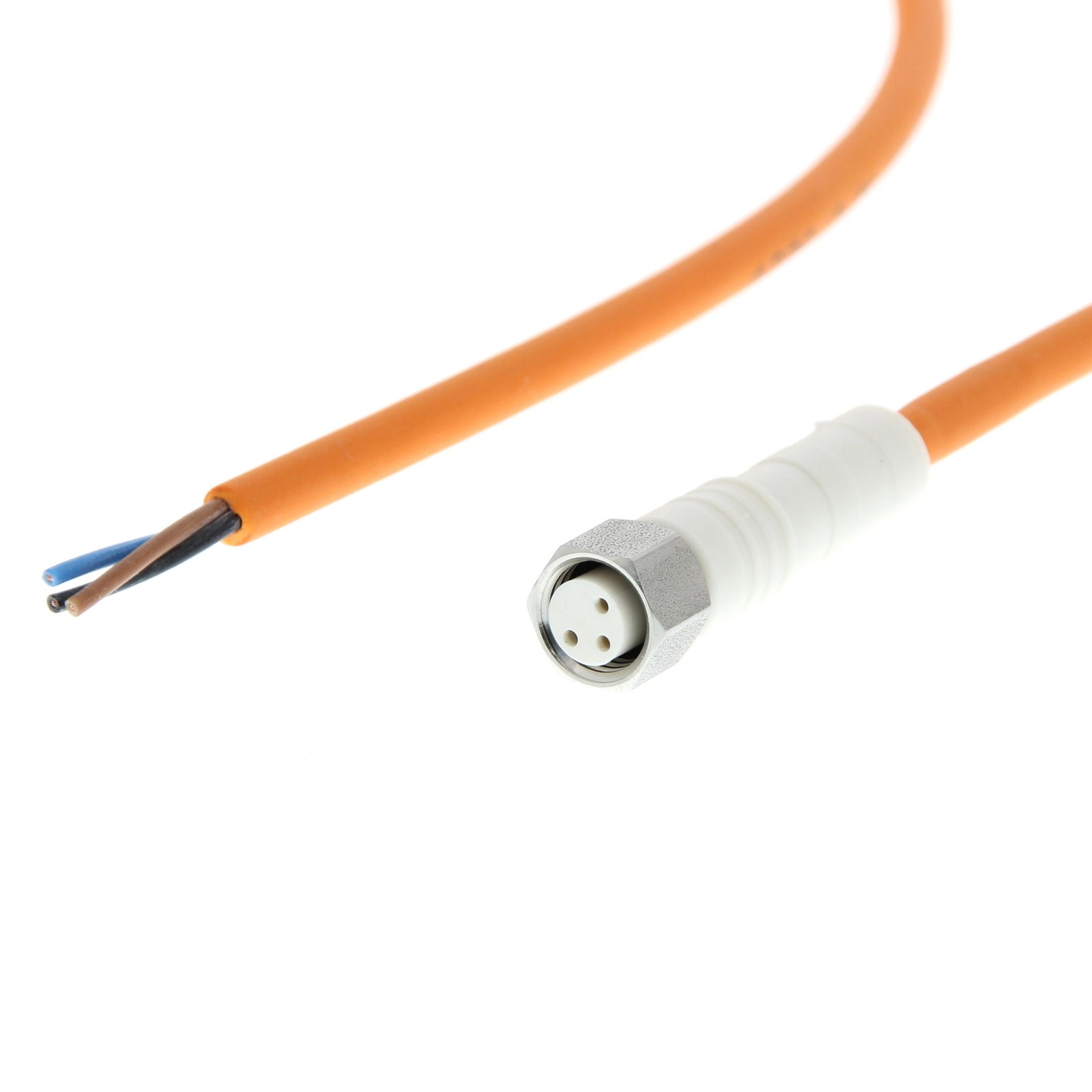

Y92E-S08PP3S 5M – Cable connector M8, Polypropylene, single ended cordset, female, straight, 3 pole, 5 M
Y92E-S08PP3S 5M
| Model No | Y92E-S08PP3S 5M |
|---|---|
| SKU | Y92ES08PP3S5M |
| HS Code | 8544.4290.90 |
| Category | Connectors and Cordsets |
Description
Cable connector M8, Polypropylene, single ended cordset, female, straight, 3 pole, 5 M
Specifications
| Model No | Y92E-S08PP3S 5M |
| SKU | Y92ES08PP3S5M |
| HS CODE | 8544.4290.90 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Cable connector M8 |
|---|---|
| Halogen free | Yes |
| Cable type | Multi-core |
| Rated voltage | 60 V |
| Cable length | 5 m |
| Screened | No |
| Number of poles | 3 |
| Permitted cable outer temperature during assembling/handling | -30 u00b0C |
| Permitted cable outer temperature after assembling without vibration | -30 u00b0C |
| Material of contact surface | Gold |
| Vulcanized | No |
| Material of cable sheath | Other |
| Degree of protection (IP) | IP69K |
| Type of electrical connection, box-sided | Free conductor end |
| Type of electrical connection, field-sided | M8 |
| Positioning cable feed, box-sided | Other |
| Positioning cable feed, field-sided | Straight |
| With LED indication | No |
| Type of plug-in contact, field sided | Female (bus) |
| Material contact body | CuSn |
| Colour cable sheath | Orange |
| Rated current In | 4 A |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- Polypropylene
- single ended cordset
- female
- straight
- 3 pole
- 5 M
