OMRON
SKU: Z15GW55B
On Order
Mechanical Sensors and Limit Switches

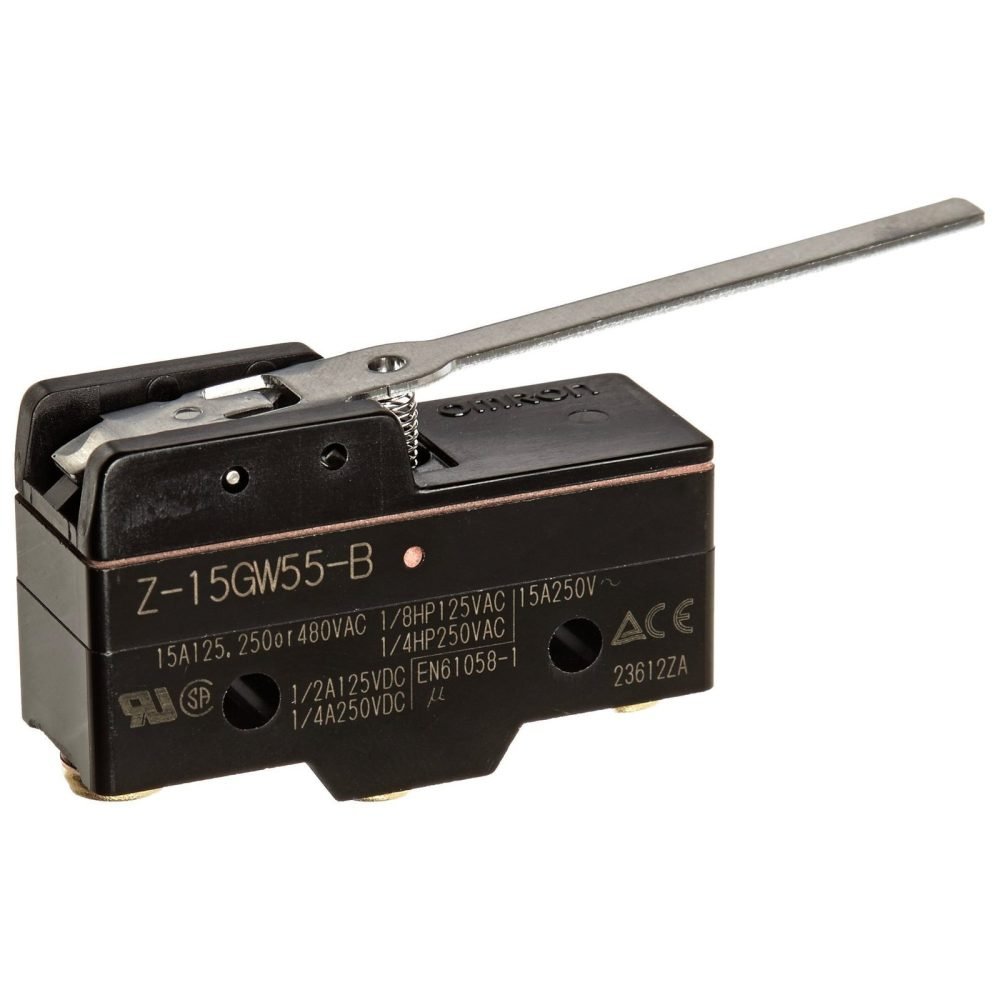

Z-15GW55-B – General purpose basic switch, hinge lever, SPDT, 15A, drip-proof
Z-15GW55-B
| Model No | Z-15GW55-B |
|---|---|
| SKU | Z15GW55B |
| HS Code | 8536.5015.00 |
| Category | Mechanical Sensors and Limit Switches |
Description
General purpose basic switch, hinge lever, SPDT, 15A, drip-proof
Specifications
| Model No | Z-15GW55-B |
| SKU | Z15GW55B |
| HS CODE | 8536.5015.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | General purpose basic switch |
|---|---|
| Current | 15A |
| Switching function | Quick-break switch |
| Rated operation current Ie at AC-15, 230 V | 15 A |
| Rated operation current Ie at DC-13, 230 V | 0.25 A |
| Housing material | Plastic |
| Suitable for safety functions | No |
| Coating housing | Other |
| With status indication | No |
| Type of interface for safety communication | None |
| Type of electric connection | Other |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | Other |
| Forced opening | No |
| Number of safety auxiliary contacts | 0 |
| Type of control element | Other |
| Type of interface | None |
| Output electronic | No |
| Rated operation current Ie at AC-15, 125 V | 15 A |
| Rated operation current Ie at DC-13, 125 V | 0.5 A |
| Rated operation current Ie at DC-13, 24 V | 6 A |
| Width sensor | 49.2 mm |
| Height of sensor | 29.4 mm |
| Length of sensor | 17.45 mm |
| Switching function latching | No |
| Ambient temperature during operating | -15 u00b0C |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
| Alignment of the control element | Other |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- hinge lever
- SPDT
- drip-proof
